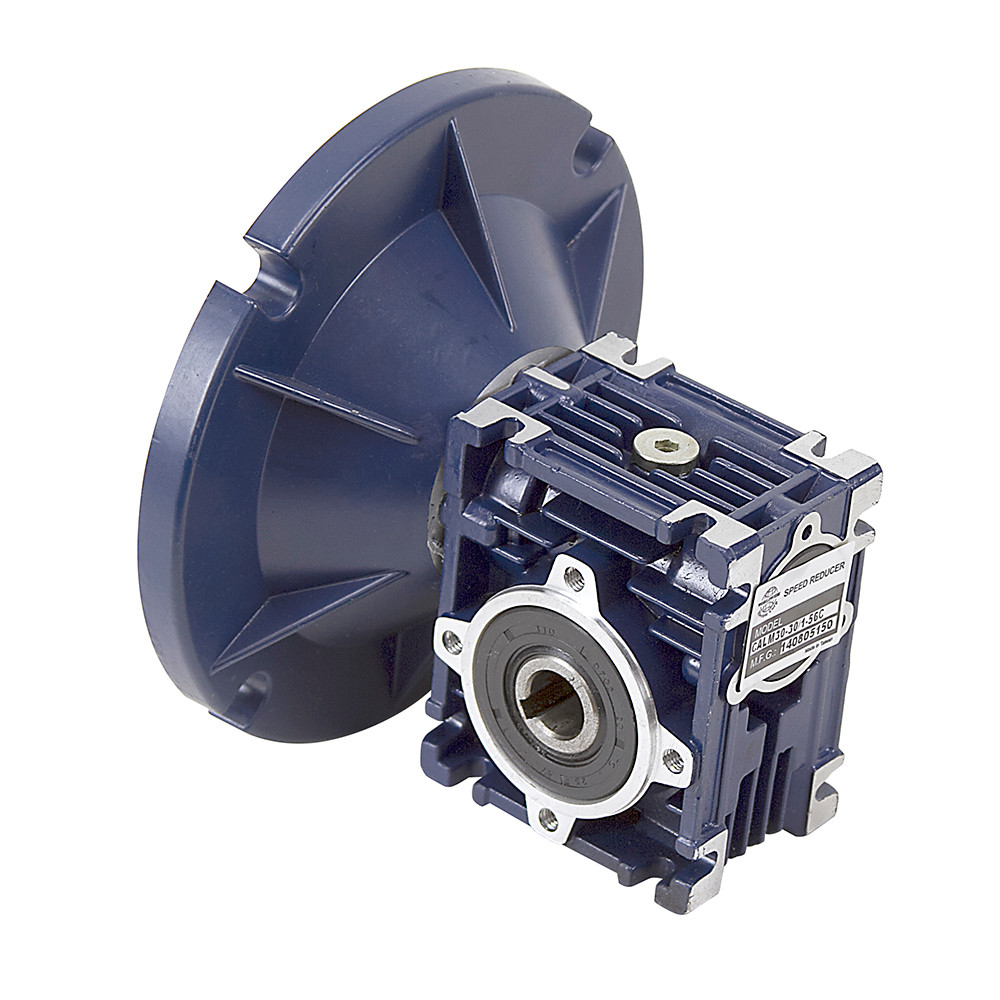

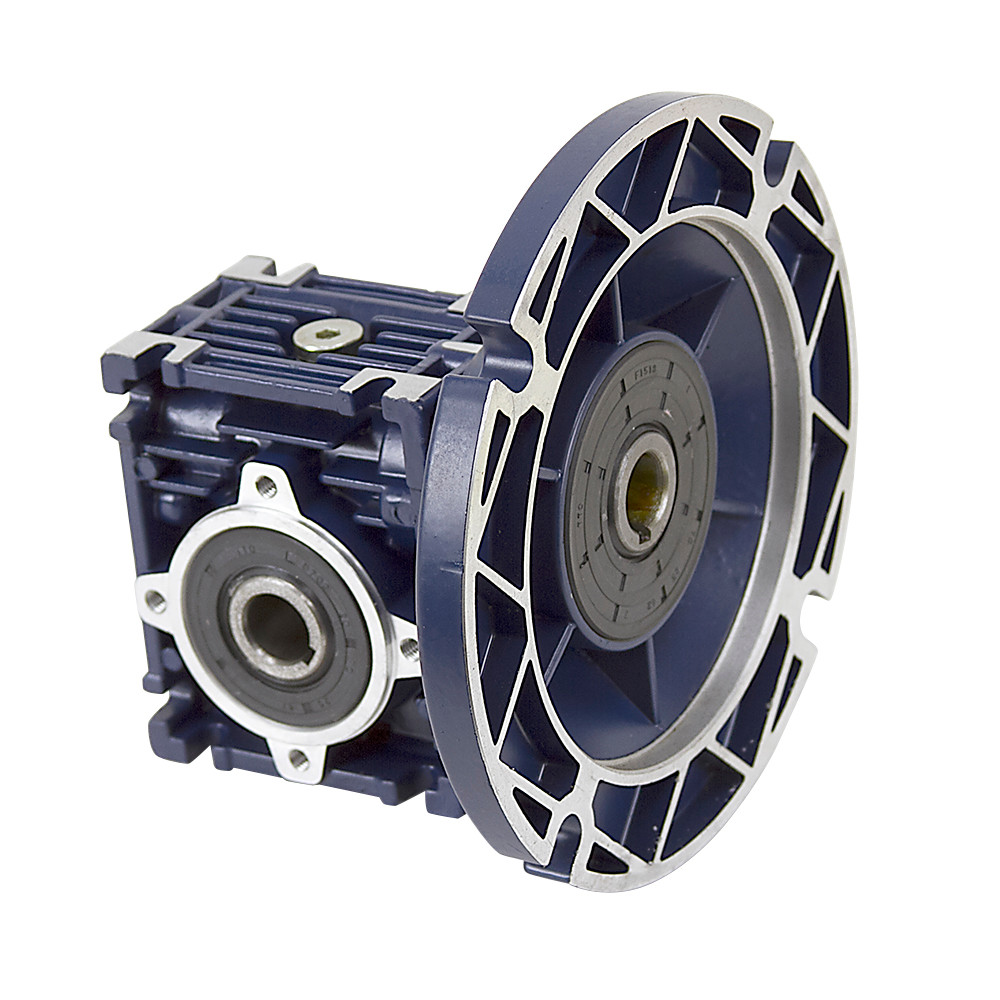

Aluminum Right Angle Worm Gear Reducer, 30 mm C.D., 40/1, 56C Input Flange, Hollow Bore Output Worldwide CALM30-40/1-56C [603028]

Product Description

Aluminum Right Angle Worm Gear Reducer, 30 mm C.D., 40/1, 56C Input Flange, Hollow Bore Output
Brand new, World Wide Electric aluminum worm gear reducer. Aluminum alloy housings. Gearbox flanges are designed to accept NEMA C-Face electric motors. Pre-filled with synthetic oil. Two bearings on the input and output shafts, double lip oil seals, epoxy paint inside and outside for rust prevention, and hollow output bores to accept plug-in output shafts (sold separately).

SPECIFICATIONS

• Brand World Wide Electric
• Model Number CALM30-40/1-56C
• Box Size 30 mm Center Distance
• Gear Ratio 40:1
• Output RPM @ 1750 RPM Input 44 RPM
• Input Hp (1.0 S.F.) 0.19 Hp Max
• Output Torque 160 in.-lb. Max
• Over-Hung Load 249 lbs. Max
• Output Shaft Thrust Load 50 lbs. Max
• Efficiency 60 %
• Motor Mount 56C
• Input Bore 5/8" keyed, 3/16" keyway
• Output Bore 5/8" keyed, 3/16" keyway
• Top & Bottom Mount 54mm x 44mm
• Back Mount 71mm x 44mm
• Overall Size 4.62" x 6.5" x 6.5"
• Shpg. 3 lbs.
