40 HP 1775 RPM 575 Volt AC 3Ph Baldor Motor M15316 [501382]

Product Description

40 HP 1775 RPM 575 VOLT AC 3PH BALDOR MOTOR
New, Baldor model# M15316.

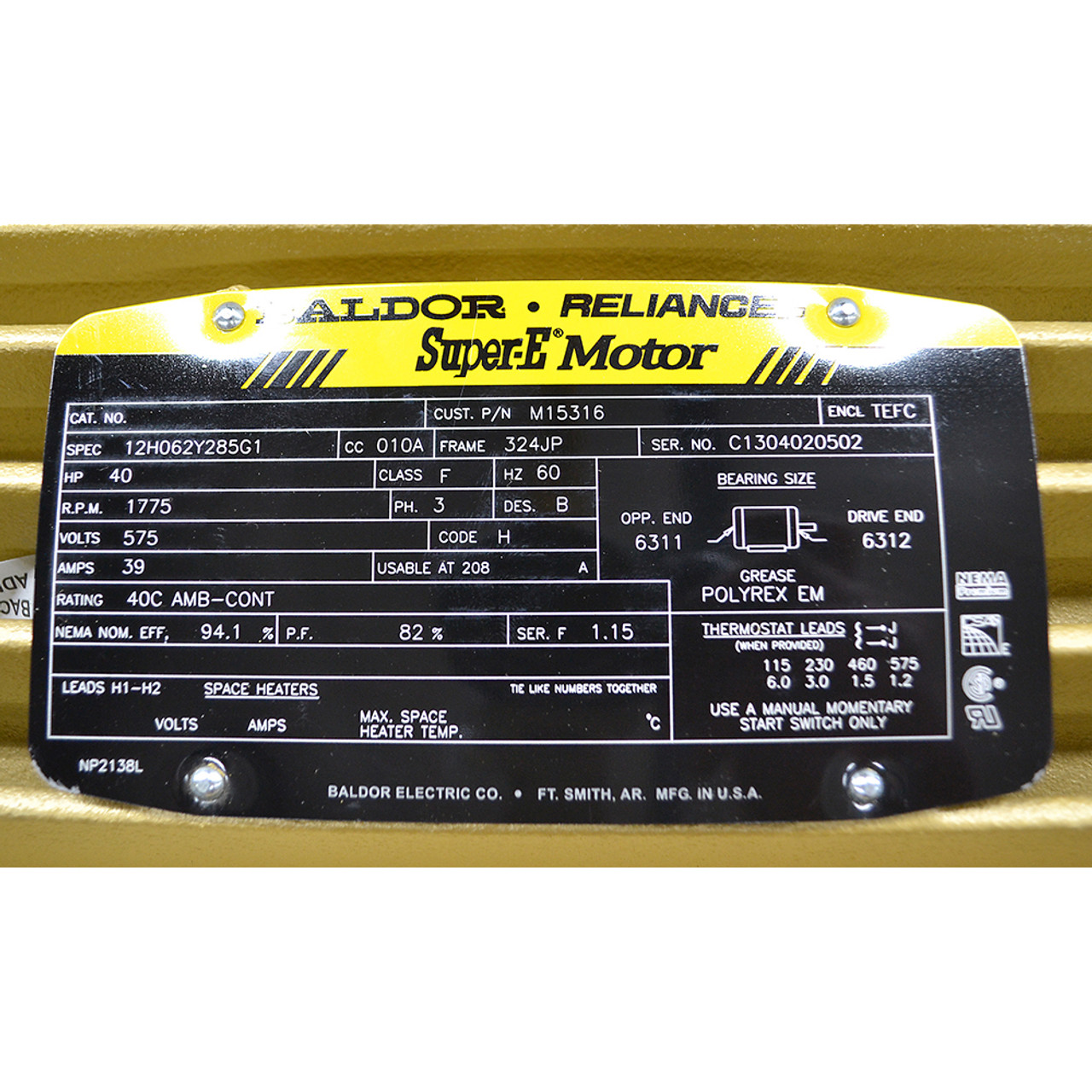

SPECIFICATIONS

• Brand Baldor
• Model Number M15316
• Power 40 HP
• Voltage 575 AC
• Phase 3
• Frequency 60 Hz
• Amperage 39 Amps
• Speed 1775 RPM
• Rotation Reversible
• Service Factor 1.15
• Bearing Ball
• Enclosure TEFC
• Duty Continuous
• Frame 324JP
• Face Mount Four 5/8"-11 tapped holes on 11" diameter bolt circle
• Rigid Base Mount Four 0.66" diam. holes on 12-1/2" x 10-1/2" centers
• Shaft 1-3/8" dia. x 3-1/2" stepped down to 1-1/4" dia. x 2-1/4" w/ 1/4" keyway and tapped for 1/2"-13 x 2-1/8"
• Size 33-3/8" x 22-3/8" x 16"
• Shpg. 597 lbs.
