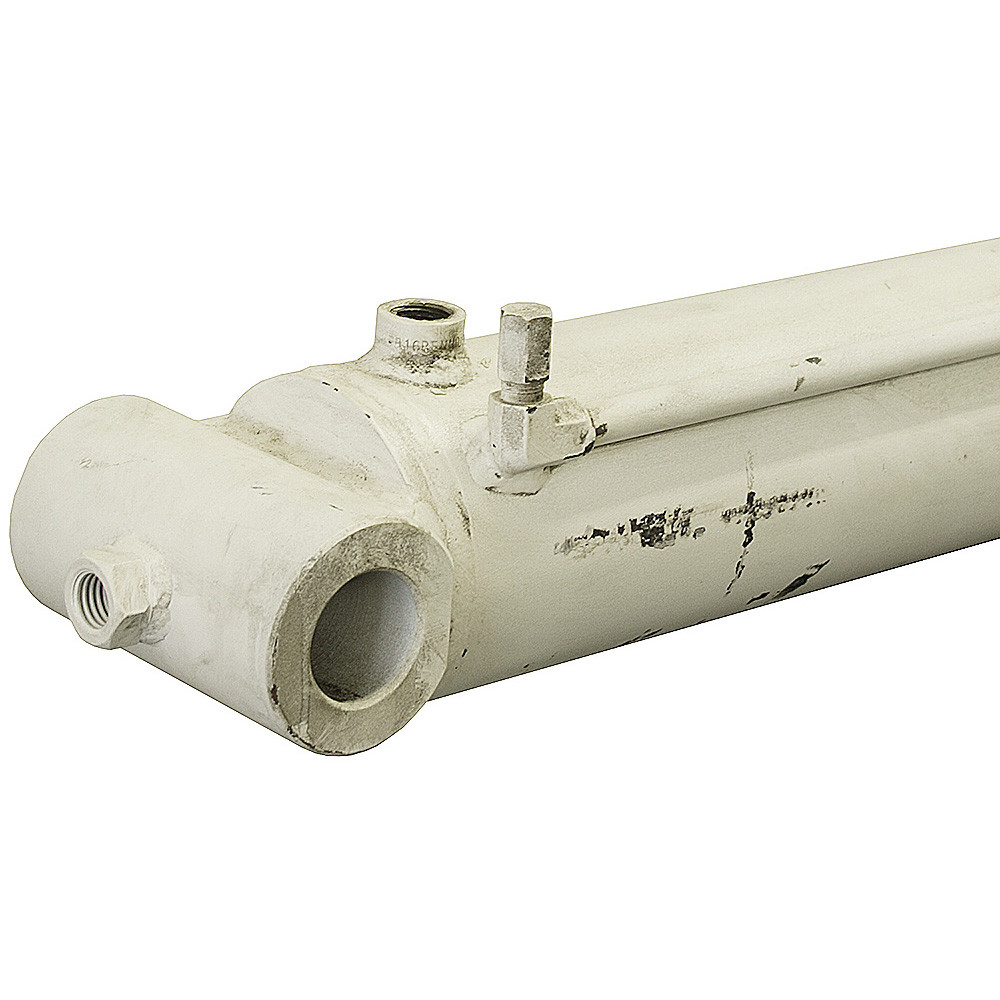

  • 4x48x2 Double Acting Hydraulic Cylinder Schramm Inc. 2813-0380 [903777]
  • 4x48x2 Double Acting Hydraulic Cylinder Schramm Inc. 2813-0380 [903777]
  • 4x48x2 Double Acting Hydraulic Cylinder Schramm Inc. 2813-0380 [903777]

    • 4x48x2 Double Acting Hydraulic Cylinder Schramm Inc. 2813-0380 [903777]

    Item Number: 903777

    Legacy Part Number: 9-8690

    (No reviews yet) Write a Review

    In Stock

    Surplus Item
    $449.95
    Adding to cart… category.add_cart_announcement

    Must ship via Truck Freight

    Please contact us for a quote.

    Product Description

    4" x 48" x 2" DA HYDRAULIC CYLINDER
    New. Welded cylinder with thread-in gland cap. Schramm Inc Model# 2813-0380. Transfer tube to retract port. 5" long spacer inside barrel.

    SPECIFICATIONS
    • Double Acting
    • Bore x Stroke 4" x 48"
    • Barrel Thickness 1/4"
    • Pressure 3000 PSI max.
    • Rod Dia. 2"
    • Extend Port 1/2" NPT
    • Retract Port 1/4" NPT
    • Retracted Length 68"
    • Shpg. 230 lbs.
    END MOUNTINGS
    • Rod End Crosstube
    • Width 2-3/4"
    • O.D. 3"
    • Pin Hole 1-5/8" (1-21/32")
    • Base End Crosstube
    • Width 5-3/8"
    • O.D. 3"
    • Pin Hole 1-5/8" (1-21/32")

    Product Videos

    Custom Field

    Truck true
    Prop65 true
    Legacy Part Number 9-8690
    Dimensional Diagram dr9-8690.pdf
    Badges surplus-item,last-one
    Base End Crosstube
    Base End Pin Size 1-21/32''
    Bore Range1 4'' - 4.9''
    Construction Type Welded
    Max PSI Over 2500 PSI
    Ports NPT
    Retracted Length 60'' and Longer
    Rod End Crosstube
    Rod End Pin Size 1-21/32''
    Stroke 48
    Stroke Range1 48'' - 59.9''
