5:1 Right Angle Cast Iron Worm Gear Reducer 5.24 HP 182TC Right Output Worldwide HDRF-262-5-R-182TC [602104]

Product Description

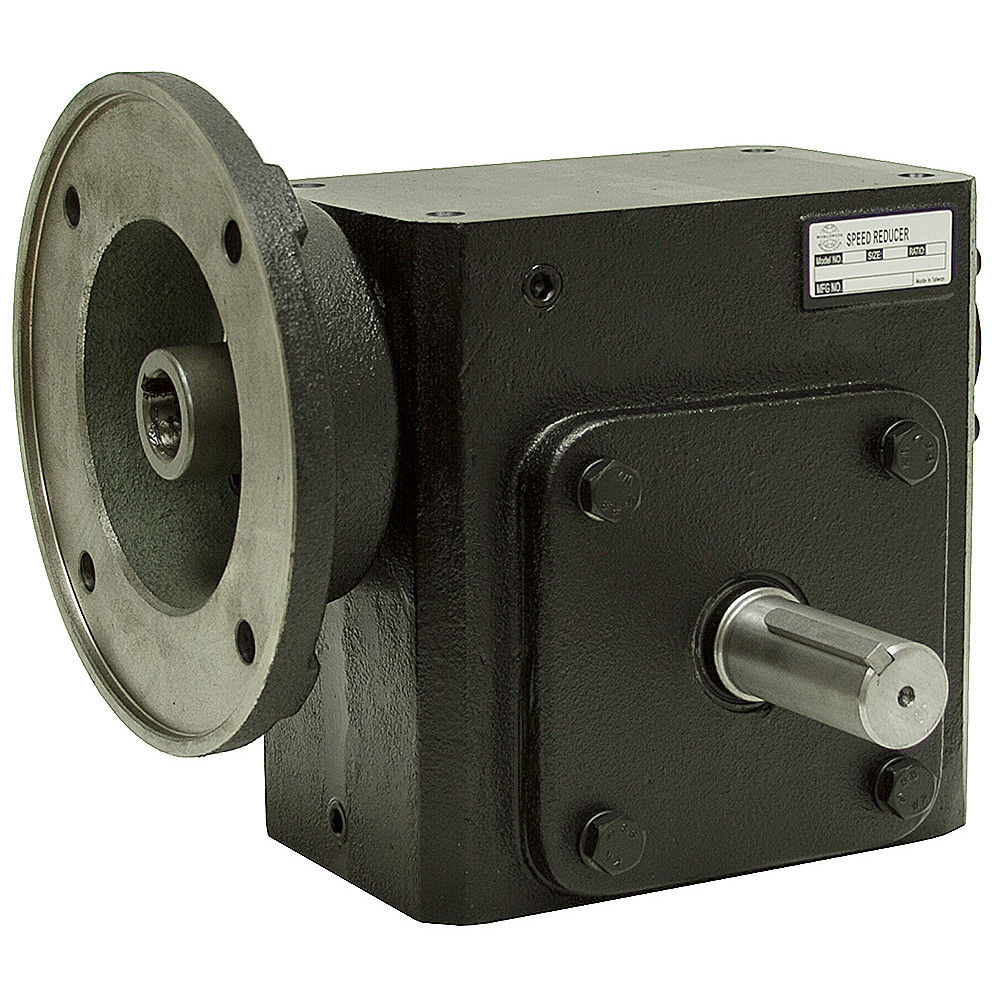

5:1 RIGHT ANGLE WORM GEAR REDUCER
Brand new, WorldWide Electric right-angle worm gear reducer. Standard NEMA-C motor mounting flange. Cast iron housing. Interior oil channel directly guides and constantly lube bearings. Embedded double-lip oil seals. Tapered roller bearings on output and input shafts. Double bearings used on both shafts. A set of four tapped mounting holes on top and bottom of housing. Shipped filled with Mobil #SHC632 synthetic oil for the "A" position. (Refer to installation and maintenance manual for oil capacity for different mounting positions)

SPECIFICATIONS

• Brand WorldWide Electric
• Model Number HDRF-262-5-R-182TC
• Box Size 262 (2.62" Center of Input Shaft to Center of Output Shaft)
• Ratio 5:1
• Input Speed 1750 RPM max.
• Output Speed 350 RPM max.
• Mechanical HP (1.0 SF) Ratings
    Input HP 5.24 HP
    Output Torque 924 in-lb.
    Output HP 4.86 HP
• Thermal Capacity Ratings
    Input HP 4.32 HP
    Output Torque 761 in-lb.
    Output HP 4.00 HP
• Efficiency 93%
• Overhung Load 1000 lbs.
• Output Shaft Thrust Load 1000 lbs.
• Output Shaft Centerline Height 2.938"
• Motor Mount NEMA 182TC w/ four 0.551" dia. holes on 8.5" dia. B.C.
• Input Bore 1-1/8" keyed bore
• Output Type Right Hand Shaft
• Output Shaft 1-1/8" dia. x 2-5/8" keyed
• Mount Two sets of four 3/8"-16 tapped holes on 6-3/8" x 3-3/8" centers
• Size 10-9/16" x 9" x 10-1/16"
• Shpg. 61 lbs.
