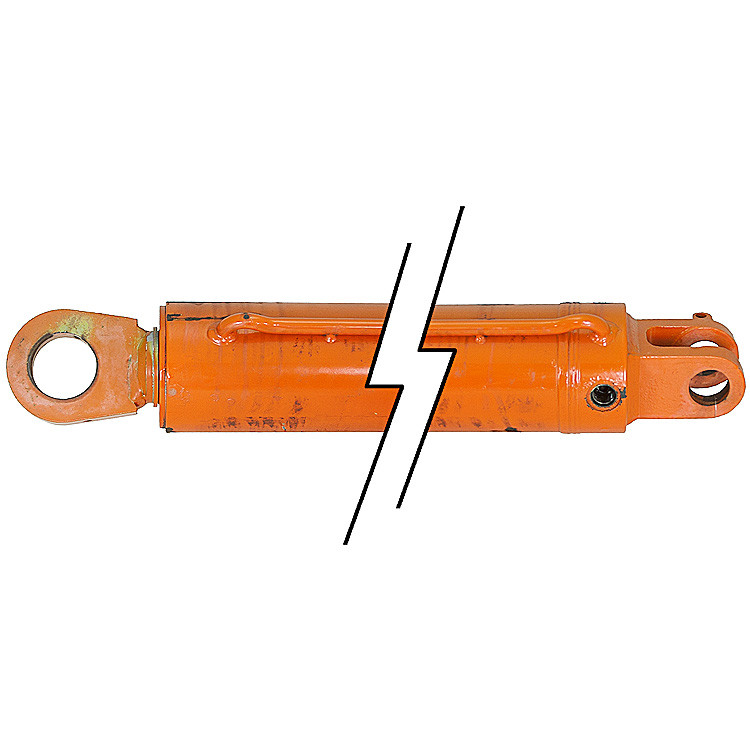

5.5x58x3.5 Double Acting Hydraulic Cylinder w/Counterbalance Valve [902549]

Product Description

5.50" x 58" x 3.50" DA HYD CYL

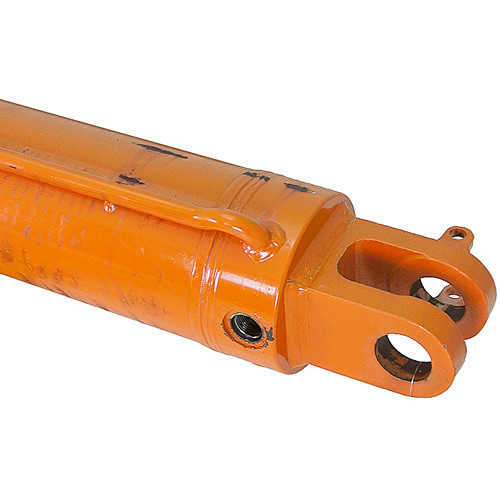

New, welded hydraulic cylinder with thread-in gland retainer. Superficial rust on cartridge valve and valve cavity from storage. Transfer tube, both ports at base end. 7/16" barrel tubing thickness. SUN model CBEA-LHN counter-balance valve with 3:1 pilot ratio, rated for 30 GPM, set to 4000 PSI, allen screw adjustment. Clevis can accept a 1/2" cross-bolt to retain clevis pin. Eye in tang made to accept a spherical bushing (not included).

SPECIFICATIONS
Double Acting Bore x Stroke 5-1/2" x 58" Pressure 3000 PSI max. Rod Dia. 3-1/2"	Ports SAE 12 Retracted Length 76-7/8" Shpg. 445 lbs.

END MOUNTINGS
Rod End Tang Width 5-1/2" Thickness 1-9/16" Pin-Center-To-Tang-End 2-3/4" Pin Hole 3-3/16"	Base End Clevis Outside Width 4" Inside Width 1-7/8" Throat Depth 2-7/16" Pin Hole 2"
