5" 61 CFM 230 Volt AC Filter Fan SF0526514 [501203]

Product Description

5" GRILL 61 CFM 230 VAC FILTER FAN

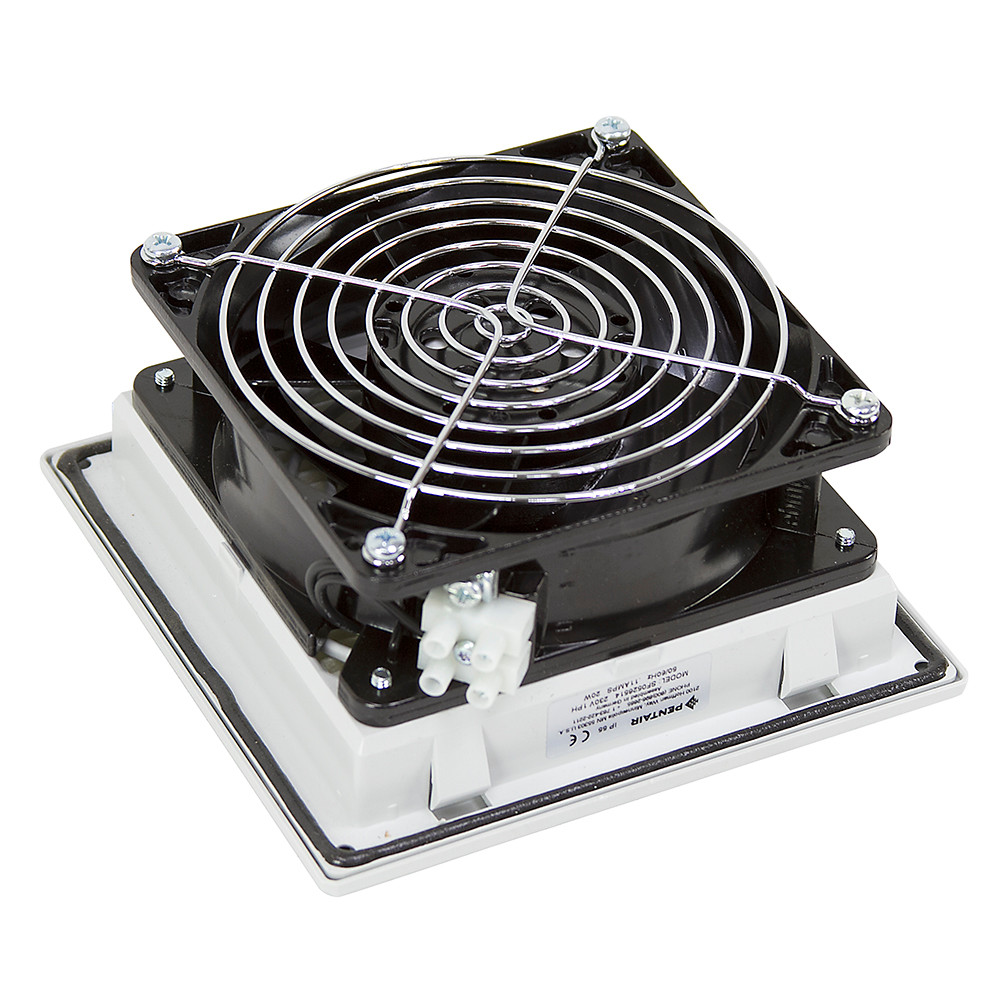

New, Pentair fresh air enclosure filter fan model SF0526514. High airflow and low noise for cooling electrical equipment or general air circulation. Grey plastic grill. Air is pulled through the plastic grill and filter. Metal housing with plastic blades. Click-fit design installs into enclosure wall. Snap over grill with foam filter. 42db rating. Terminal block electrical connection.

SPECIFICATIONS

• Pull Type Fan
• Model Number SF0526514
• Flow 61 CFM max.
• Voltage 230 AC
• Amperage 0.11 Amps
• Power 20 Watts
• Speed 3100 RPM
• Operating Temperature Range Min. 14° F to Max. 131° F
• IP Rating 55
• Mount 4 holes on 5-1/4" x 5-1/4"
• Cutout Dimensions 4.92" x 4.92"
• Blade Dia. 4-1/2"
• Number of Blades 5
• Size 5-7/8" x 5-7/8" x 2-3/4"
• Shpg. 3 lbs.
