Product Description
12 VDC 110 LB. LINEAR ACTUATORBrand new, GLIDEFORCE model LACT6P-12V-20 light duty linear actuator. Built-in potentiometer allows for use with position-sensing circuits. Metal housing is water resistant and sealed against dust. Permanent magnet motor. Non-adjustable limit switches at end of stroke both directions.
SPECIFICATIONS
- Stroke 150 mm (5.91")
- Voltage 12 DC
- Push/Pull Rating
Dynamic 110 lbs. max - Extension Speed
No Load 0.57 in/sec
Max Load 0.48 in/sec - Amps
No Load 1.2
Full Load 3.2 - Gear Ratio 20:1
- Duty 25%
- Operational Temperature Range
-14° F to +149° F - Enclosure IP65
- Pin Holes 1/4"
- Retracted Length 297 mm (11.69")
- Shaft Dia. 20 mm (0.787")
- Size 12-1/4" x 1-1/2" x 3"
- Shpg. 5 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 5-1577-6
PDF Page Catalog298-144.pdf
Wiring Diagram w5-1577-6.pdf
Badges regular-stock
Load Rating Up to 199 lbs.
Stroke 4'' to 7.99''
Voltage 12 Volt DC
![5.91" Stroke 110 lbs 12 Volt DC Linear Actuator With Sensor GlideForce LACT6P-12V-20 [500531]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/4194/97177/5-1577-6__60720.1762805605.jpg?c=1 "5.91\" Stroke 110 lbs 12 Volt DC Linear Actuator With Sensor GlideForce LACT6P-12V-20 [500531]")
![5.91" Stroke 110 lbs. 12 Volt DC Linear Actuator GlideForce LACT6 [500921]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/14300/97737/5-1845-6__66499.1762805748.jpg?c=1 "5.91\" Stroke 110 lbs. 12 Volt DC Linear Actuator GlideForce LACT6 [500921]")
![5.91" Stroke 225 lb. 12 Volt DC Linear Actuator GlideForce MD122006 [501063]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/8641/97947/5-1896-6__47932.1762805803.jpg?c=1 "5.91\" Stroke 225 lb. 12 Volt DC Linear Actuator GlideForce MD122006 [501063]")
![1.97" Stroke 110 lbs 12 Volt DC Linear Actuator With Sensor GlideForce LACT2P [500529]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/4149/97175/5-1577-2__63644.1762805605.jpg?c=1 "1.97\" Stroke 110 lbs 12 Volt DC Linear Actuator With Sensor GlideForce LACT2P [500529]")
![3.94" Stroke 110 lbs 12 Volt DC Linear Actuator With Sensor GlideForce LACT4P [500530]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/4173/97176/5-1577-4__60489.1762805605.jpg?c=1 "3.94\" Stroke 110 lbs 12 Volt DC Linear Actuator With Sensor GlideForce LACT4P [500530]")

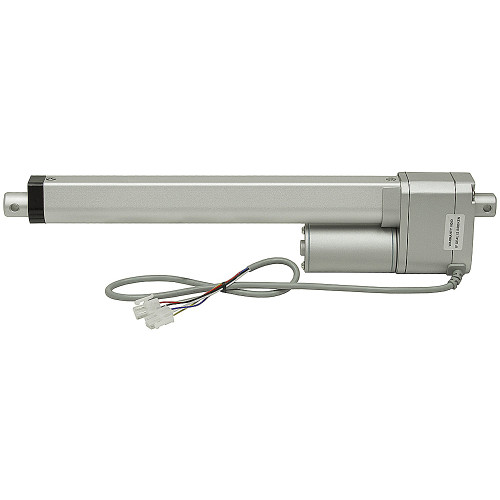

![7.87" Stroke 110 lbs 12 Volt DC Linear Actuator w/Sensor GlideForce LACT8P [500532]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/4252/97178/5-1577-8__93489.1762805606.jpg?c=1 "7.87\" Stroke 110 lbs 12 Volt DC Linear Actuator w/Sensor GlideForce LACT8P [500532]")
