Product Description

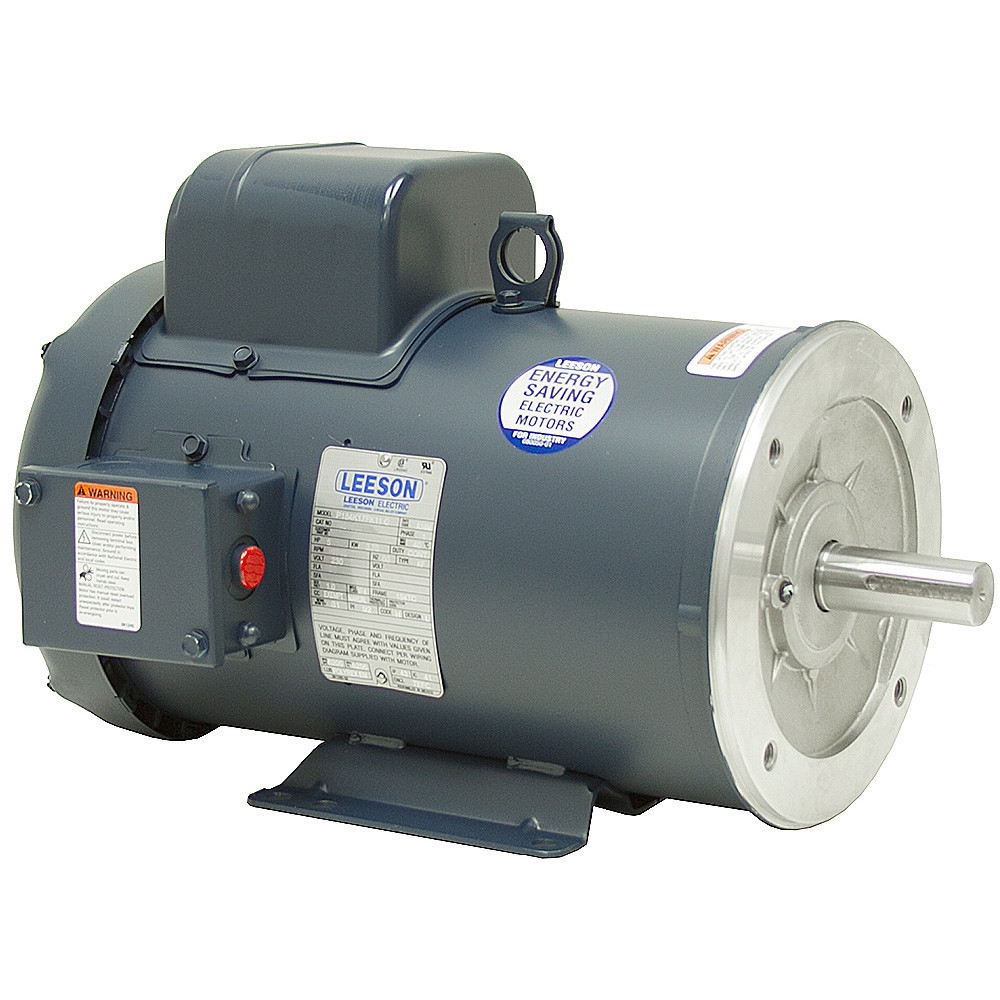

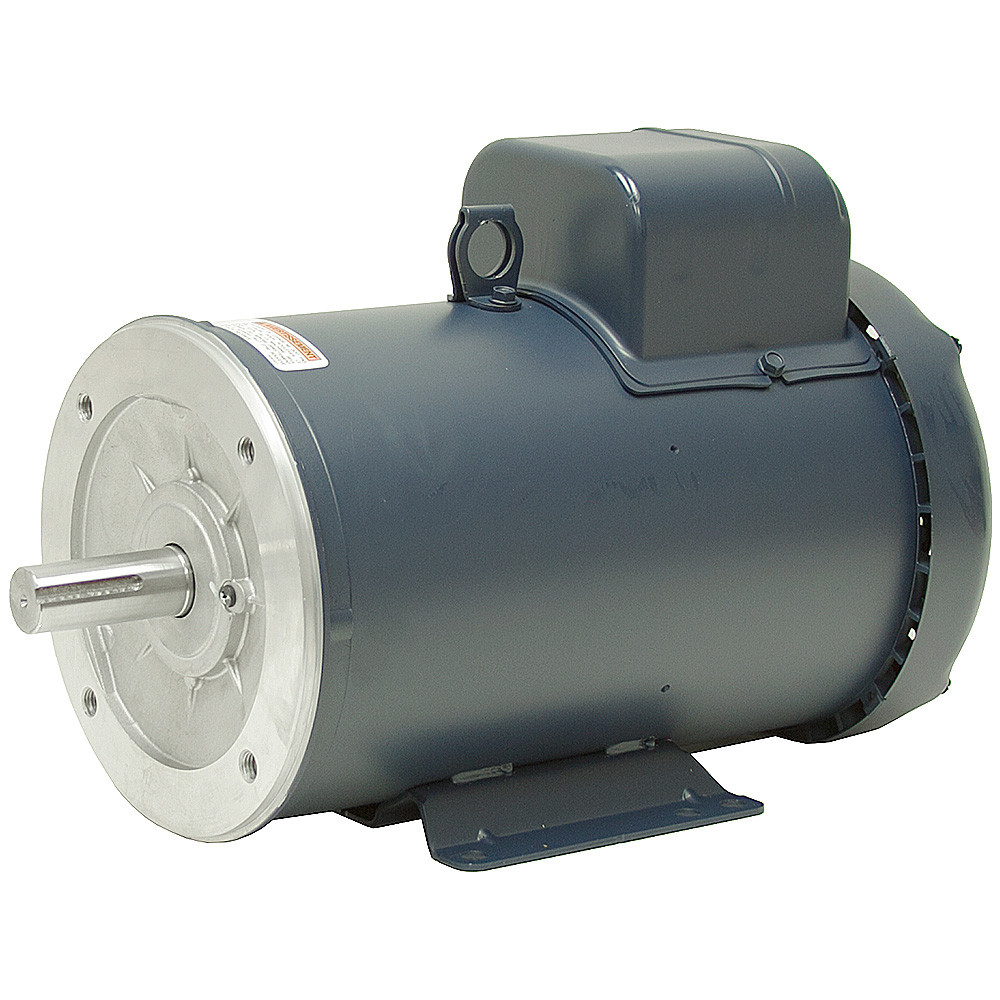

5 HP 3600 RPM 230 VAC 184TC FACE AND BASE MOUNT MOTORBrand new, LEESON model P184K34FK2 D general purpose electric motor. Capacitor start and run. Steel housing. Manual reset thermal overload protection.
SPECIFICATIONS
- Catalog Number 131632.00
- Power 5 HP
- Voltage 230 AC
- Amperage 19.8 Amps
- Speed 3600 RPM
- Rotation Reversible
- Phase 1
- Service Factor 1.15
- Bearings Ball
- Enclosure TEFC
- Duty Continuous
- Frame 184TC
- Face Mount
Four 1/2"-13 tapped holes on 7-1/4" diameter bolt circle - Rigid Base Mount
Six 0.4" diam. holes on 7-1/2" x 4-1/2" to 5-1/2" centers - Shaft 1-1/8" diam. x 2-5/8" w/ 1/4" keyway
- Size 11-1/16" x 11" x 11-5/16"
- Shpg. 103 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Truck true
Prop65 true
Legacy Part Number 10-2887
PDF Page Catalog298-133.pdf
Badges surplus-item,last-one
Enclosure TEFC
Frame 184TC
HP 5
RPM 3450
Rotation Reversible
Voltage 230 Volt AC
