5 HP 3600 RPM 230 Volt AC 184TC Leeson Motor 131632.00 - Missing Parts [BB10-2887]

Product Description

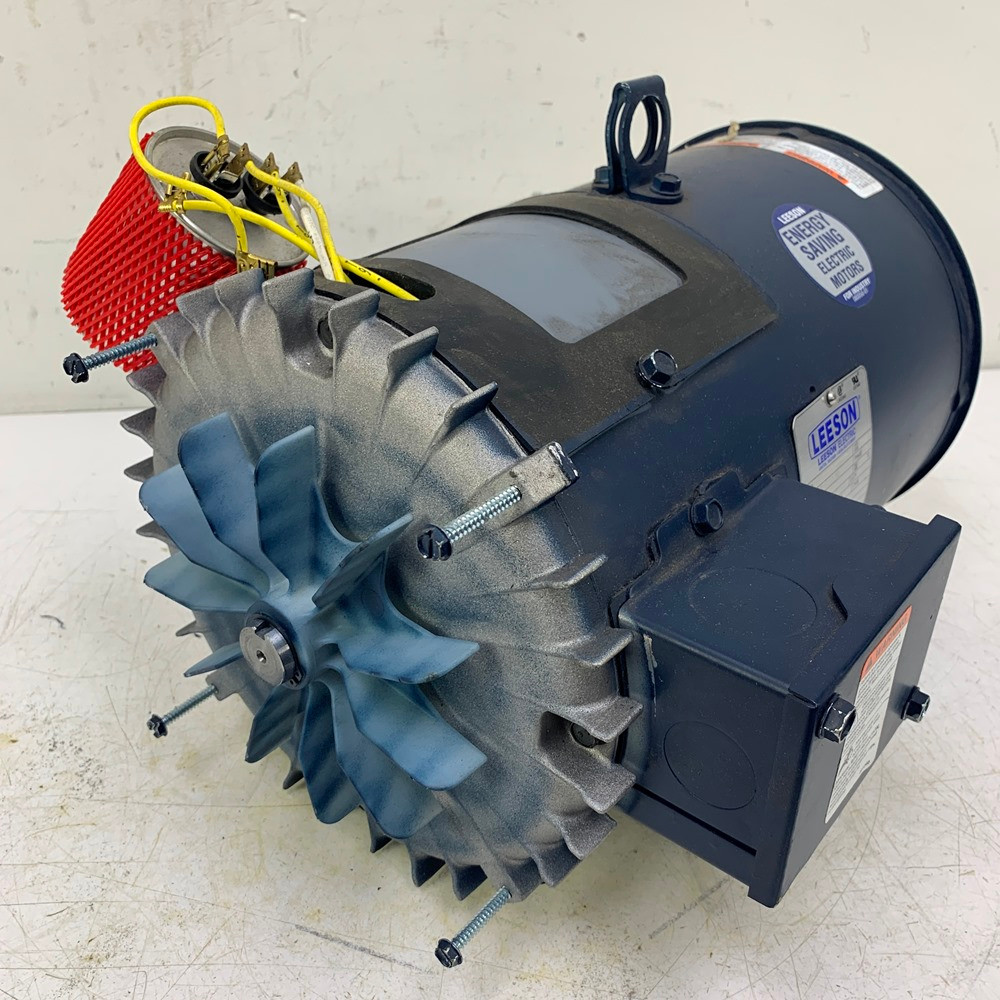

   Missing Parts:  These motors were damaged in shipping.  They both need new start capacitors.  The start capacitor that is pictured is split open and will not be shipped with the motor.  It is only pictured to show what capacitor is needed.  The shroud cover and capacitor covers are bent/damaged.  These motors have not been tested so we do not know if there are further problems, but otherwise appear to be in good condition.  Sold as is.

5 HP 3600 RPM 230 VAC 184TC FACE AND BASE MOUNT MOTOR

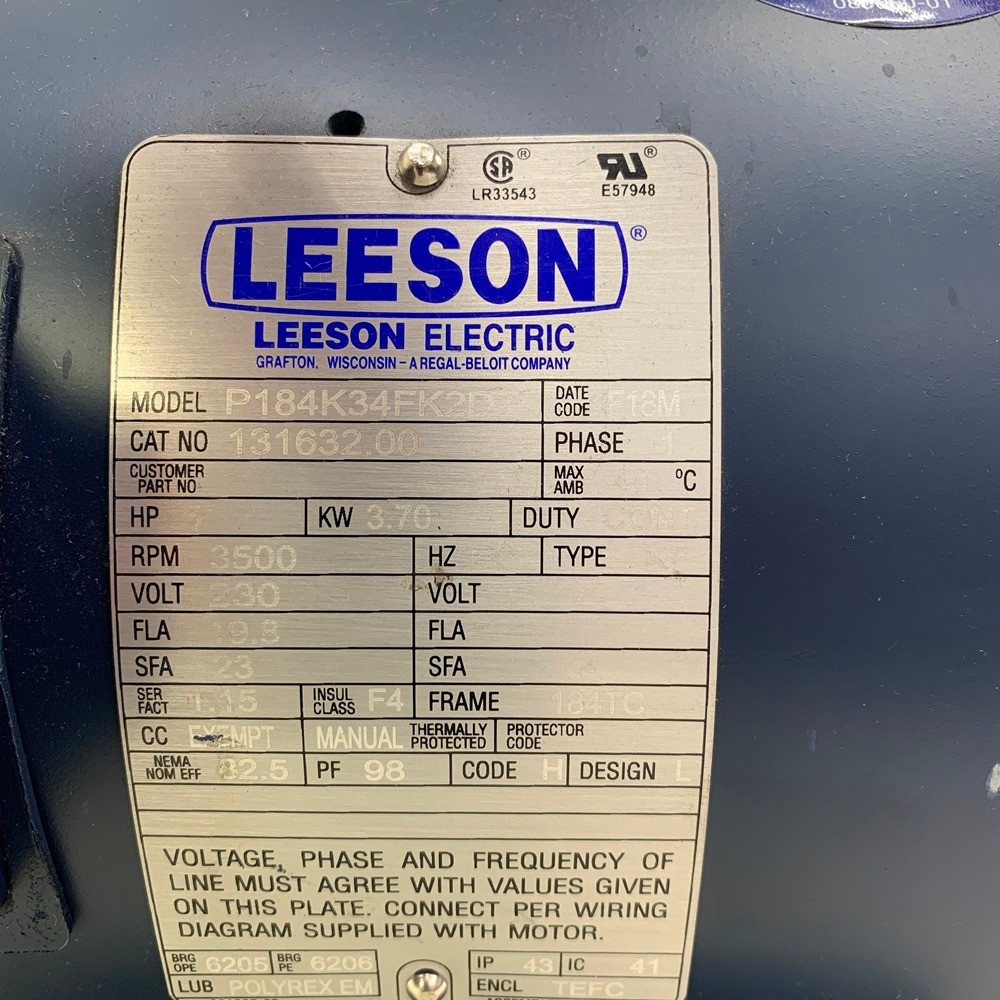

LEESON model P184K34FK2 D general purpose electric motor. Capacitor start and run. Steel housing. Manual reset thermal overload protection.

SPECIFICATIONS

• Catalog Number 131632.00
• Power 5 HP
• Voltage 230 AC
• Amperage 19.8 Amps
• Speed 3600 RPM
• Rotation Reversible
• Phase 1
• Service Factor 1.15
• Bearings Ball
• Enclosure TEFC
• Duty Continuous
• Frame 184TC
• Face Mount
    Four 1/2"-13 tapped holes on 7-1/4" diameter bolt circle
• Rigid Base Mount
    Six 0.4" diam. holes on 7-1/2" x 4-1/2" to 5-1/2" centers
• Shaft 1-1/8" diam. x 2-5/8" w/ 1/4"   keyway
• Size 11-1/16" x 11" x 11-5/16"
• Shpg. 103 lbs.
