Product Description

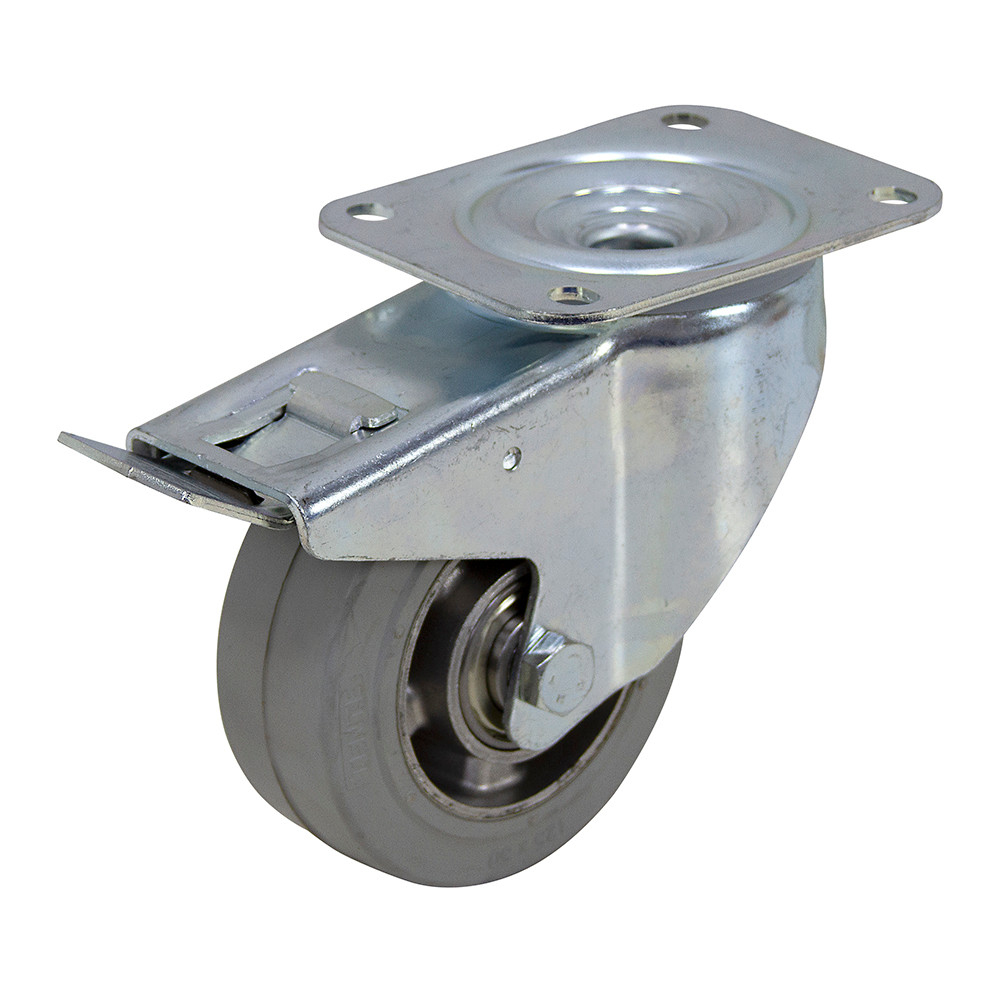

5" x 2" SWIVEL PLATE CASTER W/WHEEL AND DIRECTIONAL LOCKNew, TENTE model 3477IFP125P63 swivel plate caster with wheel and directional lock. Elastic-tire tread on cast aluminum wheel. Swivel plate has double-row ball bearings.
SPECIFICATIONS
- Model Number 3477IFP125P63
- Wheel Diameter 5" dia.
- Wheel Width 2" Wide
- Tread Width 1-3/4" Wide
- Load Capacity 660 lbs.
- Mounting Height 6.34"
- Brake Wheel and Directional Lock
- Top Plate 5.39" x 4.13" x 0.13" thick
- Mount 4 holes on 4.13" x 3.15" to 2.95" centers
- Bolt Holes 0.43" dia.
- Wheel Tread Material Elastic-Tire
- Wheel Tread Color Gray
- Caster Wheel Core Material Cast Aluminum
- Caster Wheel Bearing Ball
- Shpg. 7 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 1-5863
Badges surplus-item,last-one
Brake Yes
Load Capacity 660
Plate Wheel OD Range 4'' to 5.99''
Style Swivel
Wheel Material Elastic Tire
