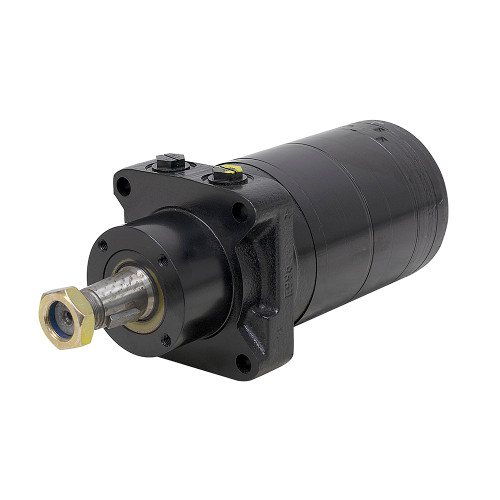

58.5 cu in Parker TG0960LS080AARD Hydraulic Wheel Motor [906217]

Product Description

58.5 cu in PARKER TG0960LS0800AARD HYDRAULIC WHEEL MOTOR
New, Parker TG0960LS0800AARD hydraulic wheel motor. Rugged construction throughout.  The entire powertrain is continually washed in cool, high flow fluid to assure long life. Roller vanes and sealed commutator maintain high efficiency and provide smooth low speed performance.

SPECIFICATIONS

• Brand Parker
• Model TG0960LS0800AARD
• Family TG
• Displacement 58.5 cu. in. / rev.
• Motor Type LSHT Torqmotor
• Rotation Reversible
• Pressure:
    1000 PSI cont.
    1500 PSI int.
• Torque:
    6843 in-lbs. cont.
    11227 in-lbs. int.
• Speed:
    118 RPM @ Max intermittent flow.
• Flow:
    20 GPM cont.
    30 GPM int.
• Mount Four-bolt wheel front brake
• Shaft 1-1/4" Tapered x 2-3/8" shaft w/ 5/16" key and threaded end w/ castle nut
• Ports SAE 10 Side ports
• Case Drain None
• Size 14" x 5-1/2" x 5-1/2"
• Shpg. 52 lbs.
