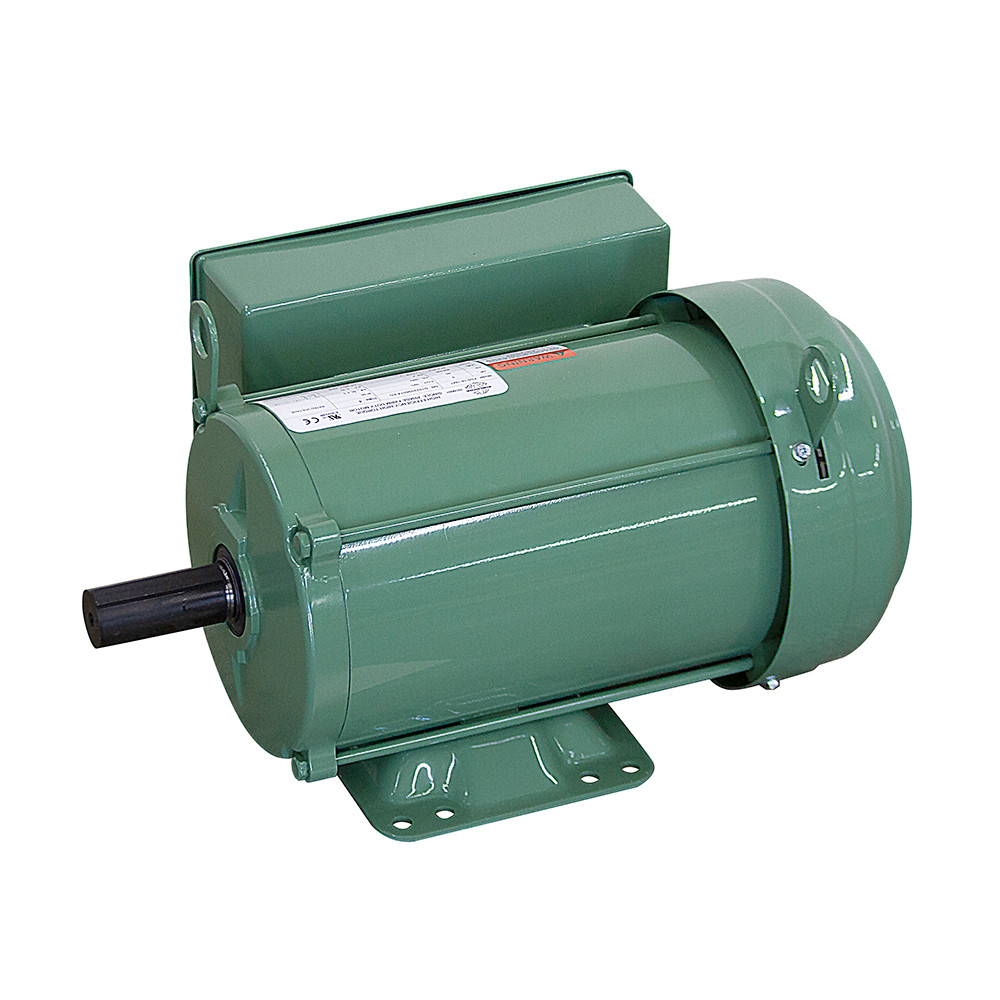

5 HP 208-230 Volt AC 1769 RPM WWE FD5-18-184T Farm Duty Motor [501561]

Product Description

5 HP 1769 RPM 208-230 VAC BASE MOUNT MOTOR
Brand new, WORLDWIDE FD5-18-184T, farm duty heavy duty motor for agricultural and other industrial use. Totally Enclosed Fan Cooled (TEFC) enclosures suitable for indoor or outdoor protection. Capacitor start/capacitor run motor for reduced amperage and high torque. Manual thermal overload protection.

SPECIFICATIONS

• Power 5 HP
• Voltage 208-230 AC
• Phase 1
• Frequency 60 Hz
• Amperage 22.2/20.2 Amps
• Speed 1769 RPM
• Rotation Reversible
• Service Factor 1.15
• Bearings Ball
• Thermal Overload Protection Manual
• Enclosure TEFC
• Duty Continuous
• Frame 184T
• Base Mount Eight 3/8" holes on 1" to 4" to 5" x 7-1/2" centers
• Shaft 1-1/8" dia. x 2-7/8" overall length w/ 1/4" wide x 1-3/4" long keyway
• Size 18" x 12-1/2" x 10"
• Shpg. 155 lbs.
