Product Description

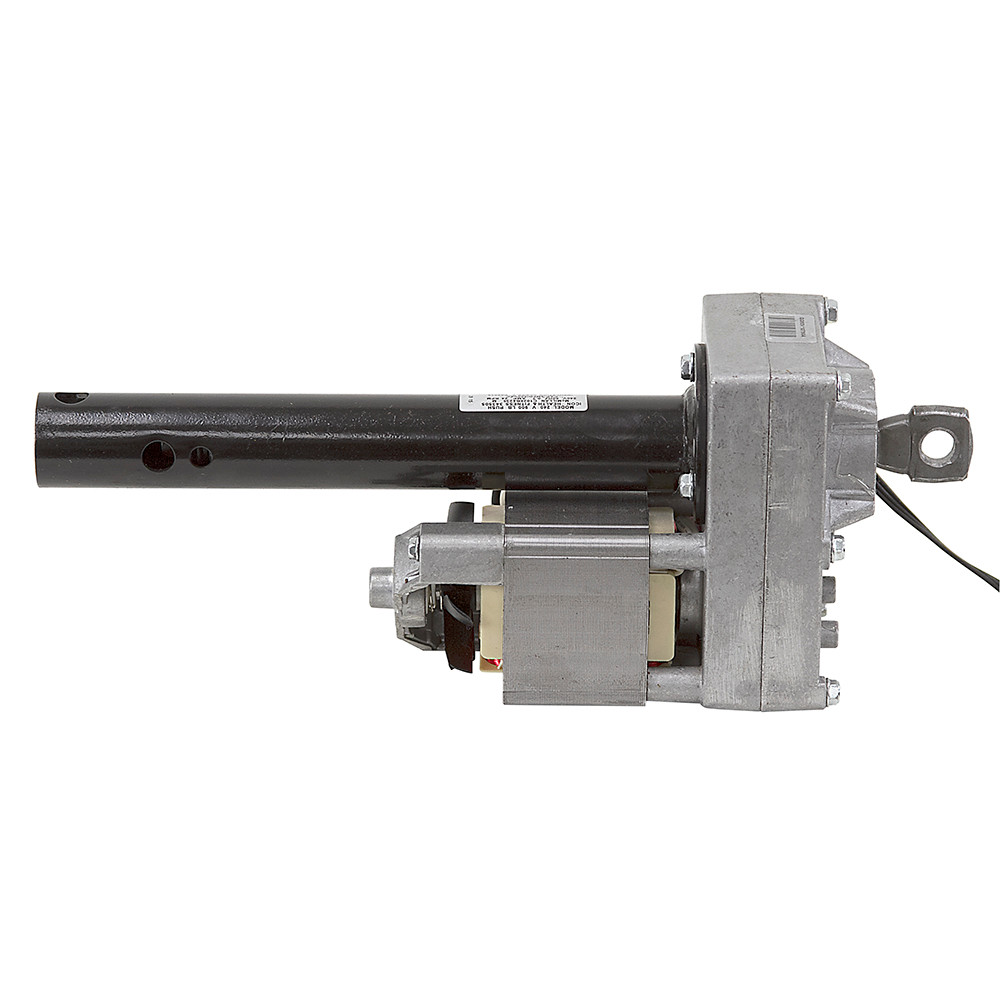

6.125" STROKE 240 VAC LINEAR ACTUATORNew, ICON HEALTH AND FITNESS model# 343505 capacitor-start linear actuator. Power extend and power retract, rated to push up to 900 lb., retract under no load. Hall effect sensor connected to internal gearing.
SPECIFICATIONS
- Voltage 240 VAC, 50 Hz
- Amperage 0.7 Amps
- Capacity 900 lb. Push
- Thread 3/4"-6 Acme thread
- Stroke 6-1/8"
- Extension Speed 0.084" / sec. (no load)
- Extension Time 72.5 seconds to Full Stroke, No Load
- Limit Switches NA
- Direction Reversible
- Duty Intermittent
- Retracted length 10-1/4"
- Rod end pin hole 3/8"
- Base end pin hole 3/8"
- Size 11-1/8" x 4-1/4" x 3-1/8"
- Shpg. 7 lb.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 5-1865
PDF Page Catalog298-146.pdf
Badges surplus-item,last-one
Load Rating 500 to 999 lbs.
Stroke 4'' to 7.99''
Voltage 240 Volt AC
![6.125" Stroke 240 Volt AC Linear Actuator Icon Health & Fitness 343505 [500979]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/8357/97837/5-1865__57068.1762805774.jpg?c=1 "6.125\" Stroke 240 Volt AC Linear Actuator Icon Health & Fitness 343505 [500979]")
![5.375" Stroke 240 Volt AC Linear Actuator Icon Health and Fitness 302925 [500973]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/8448/97825/10-3056__05939.1762805771.jpg?c=1 "5.375\" Stroke 240 Volt AC Linear Actuator Icon Health and Fitness 302925 [500973]")
![5.375" Stroke 240 Volt AC Linear Actuator Icon Health and Fitness 302925 [500973]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/8448/97826/10-3056_1__42083.1762805771.jpg?c=1 "5.375\" Stroke 240 Volt AC Linear Actuator Icon Health and Fitness 302925 [500973]")

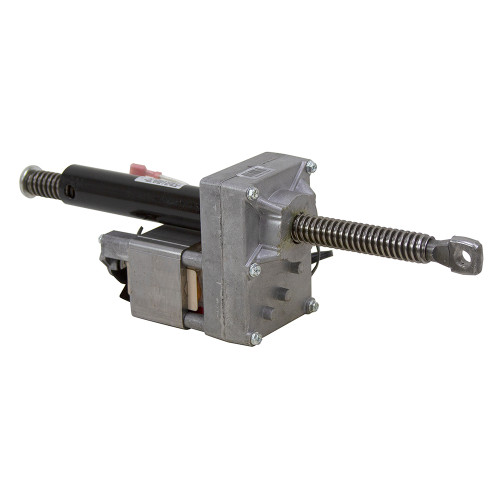

![10.75" Stroke 120 Volt AC Linear Actuator Icon Health And Fitness 315774 [500971]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/8421/97821/10-3054__97215.1762805770.jpg?c=1 "10.75\" Stroke 120 Volt AC Linear Actuator Icon Health And Fitness 315774 [500971]")
