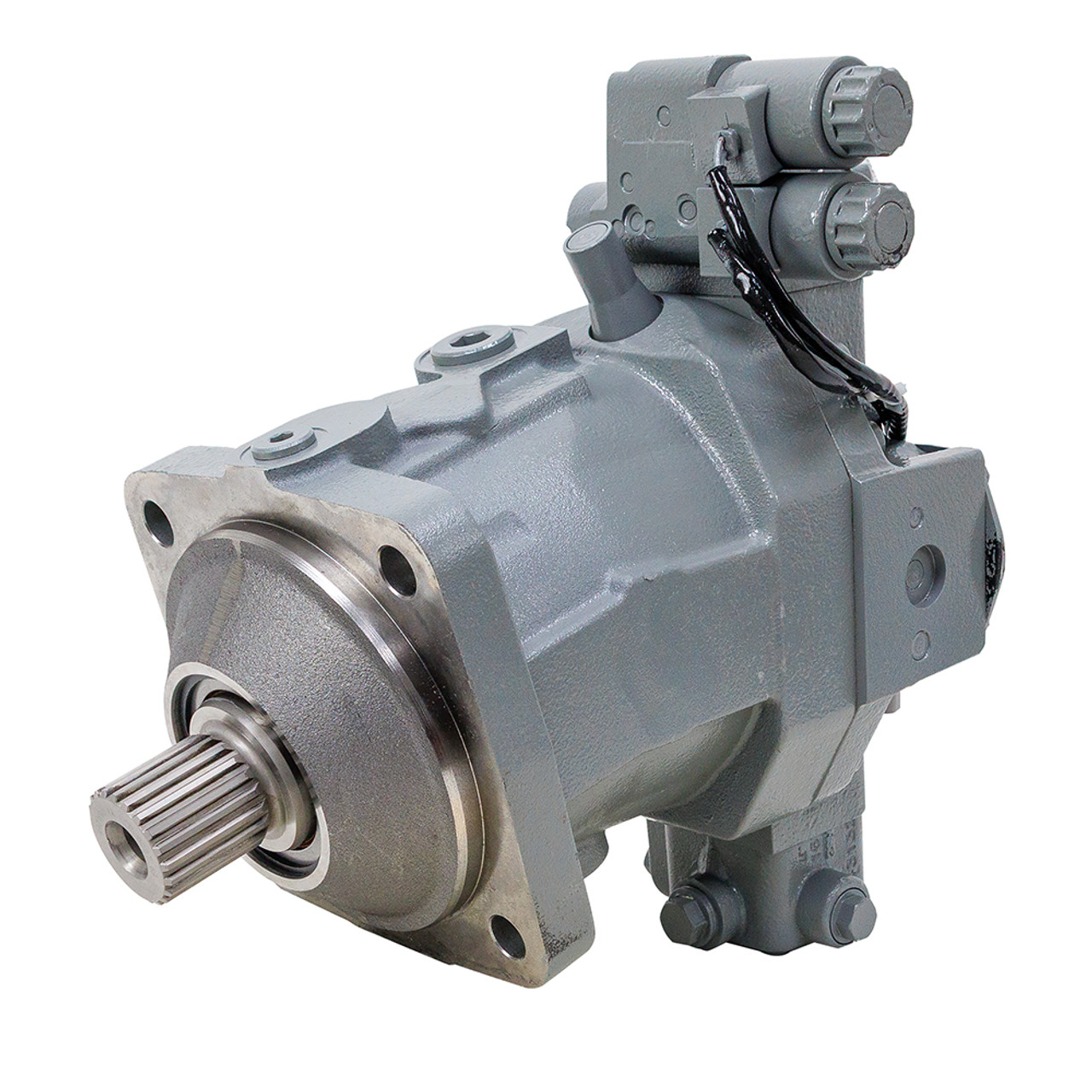

6.5 cu in Variable Displacement Axial Piston Hydraulic Motor Manitou Group 50337802 [906911]

Product Description

6.5 cu in MANITOU GROUP 50337802 HYDRAULIC MOTOR
New, Manitou Group 50337802 variable displacement axial piston hydraulic motor with rear work ports. Solenoid A controls direction (enegized cw, de-energized ccw) marked blue, solenoid B controls motor speed (energized low speed-high torque, de-energized high speed-low torque) marked red.

SPECIFICATIONS

• Brand Manitou
• Model 50337802
• Family A6VM series 65
• Size 107
• Displacements
     6.5 cu. in. / rev. max.
     1.61 cu. in. / rev. min.
• Motor Type Axial Piston
• Rotation Reversible
• Pressure:
     5800 PSI Nomimal
     6500 PSI Peak
• Torque: 6027 in lbs @ 5800 PSI
• Speed:
     3550 RPM Nomimal
     6300 RPM Peak
• Flow: 100 GPM
• Mount Four 17.5 mm dia. holes on 141.4 mm x 141.4 mm centers (ISO 3019-2 160-4)
• Shaft 45mm dia. 21T spline (W45 x 2 x 30 x 21 x 9g)
• Work Ports A & B 1" dia. 4 Bolt Flange code 62
• Pilot Pressure Port X1 SAE 6
• Drain Port T1 SAE 12
• Drain Port T2 SAE 16
• Port for Synchronous Control G SAE 6 (Plugged)
• Flushing Port U SAE 10 (Plugged)
• Gauge Port(Contol Pressure) M1 SAE 6 (Plugged)
• Pilot Pressure Port X3 SAE 6 (Plugged)
• Solenoid Voltage 12 Volt DC
• Electroinc Connector Deutsch DT04-4P
• Size 14.5" x 14" x 7.125"
• Shpg. 115 lbs.
