6" Floor Lock [700179]

Product Description

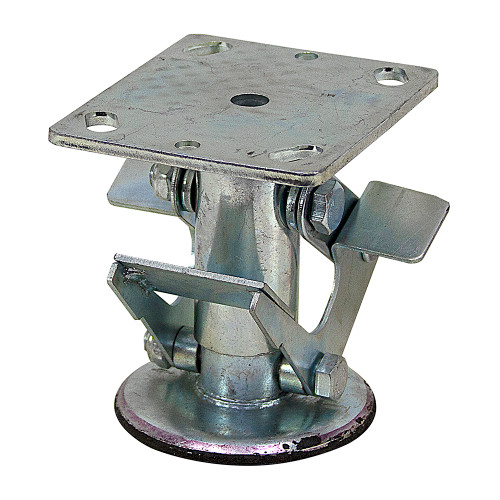

6" FLOOR LOCK
Old unused inventory, floor lock for use with plate caster with 6" diameter wheel. 3" diameter rubber disc on base is skid resistant. Floor locks provide a foot activated braking option for equipment or carts with casters of similar heights. Spring loaded foot pedal is depressed to extend the rubber pad into a locked position to create a forceful resistance with the floor to immobilize the equipment. Releasing the lock allows the equipment to roll freely on the casters. Floor locks are not designed to be a jack and do not lift or directly support weight.

SPECIFICATIONS

• Extended Height 7-3/4"
• Retracted Height 6-3/4"
• Correlating Caster Wheel Size 6"
• Top Plate 4" x 4-5/8"
• Foot Pad 3" dia.
• Mount Four slotted holes from 3-5/8" x 2-5/8" to 3" x 3" centers
• Size 7-3/4" x 7" x 6-3/4"
• Shpg 5 lbs.
