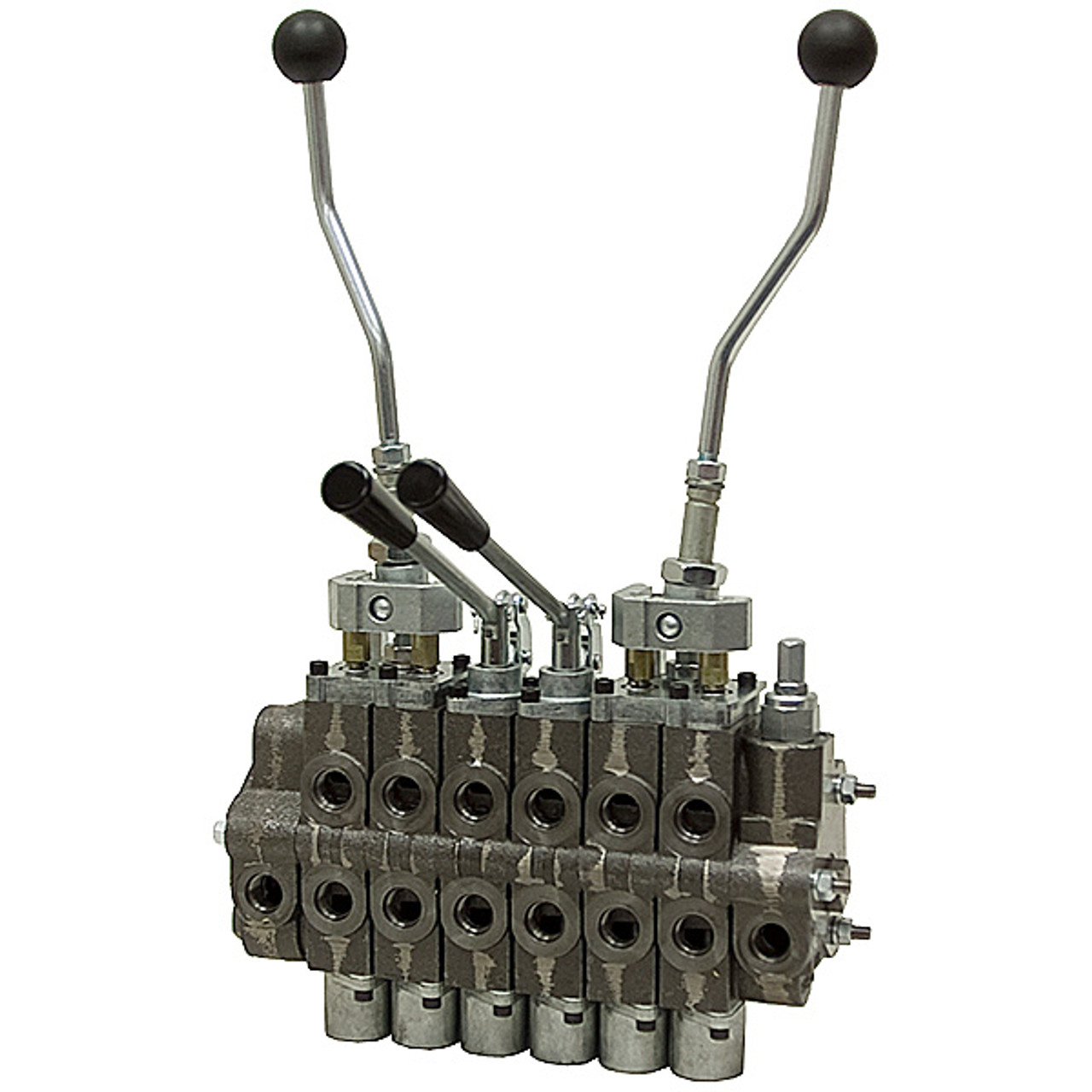

6 Spool Hydraulic Valve w/Joysticks Prince SV [902017]

Product Description

6 SPOOL CONTROL VALVE
Brand new, Prince SV control valve. Ideal for use on small backhoes with hydraulic stabilizers. Dual joysticks for easy operation of swing, boom, crowd and bucket. Standard levers for stabilizers. Parallel circuit. Differential poppet style relief valve, load check in each section. Reversible handle mounts. Supplied as individual components, easily bolted together. Includes tie bolts and all seals. Optional top or side ports on both inlet and outlet sections.

SPECIFICATIONS

• Open Center
• Spools Six
• Flow 12 GPM max.
• Pressure 3000 PSI max.
• Relief Valve Adj. 1500-3000 PSI, preset @ 2000
• In/Out Ports SAE 8
• Work Ports SAE 8
• Mount 3 hole, tapped 3/8-16,
  3-7/8" x 10-1/16"
• Size 8-5/8" x 13-1/16" x 3-1/4"
• Shpg. 60 lbs.

Spool Details:
  Spool 1 Double Acting-spring centered
  Spool 2 Double Acting-spring centered
  Spool 3 Double Acting-spring centered
  Spool 4 Double Acting-spring centered
  Spool 5 Double Acting-spring centered
  Spool 6 Double Acting-spring centered
