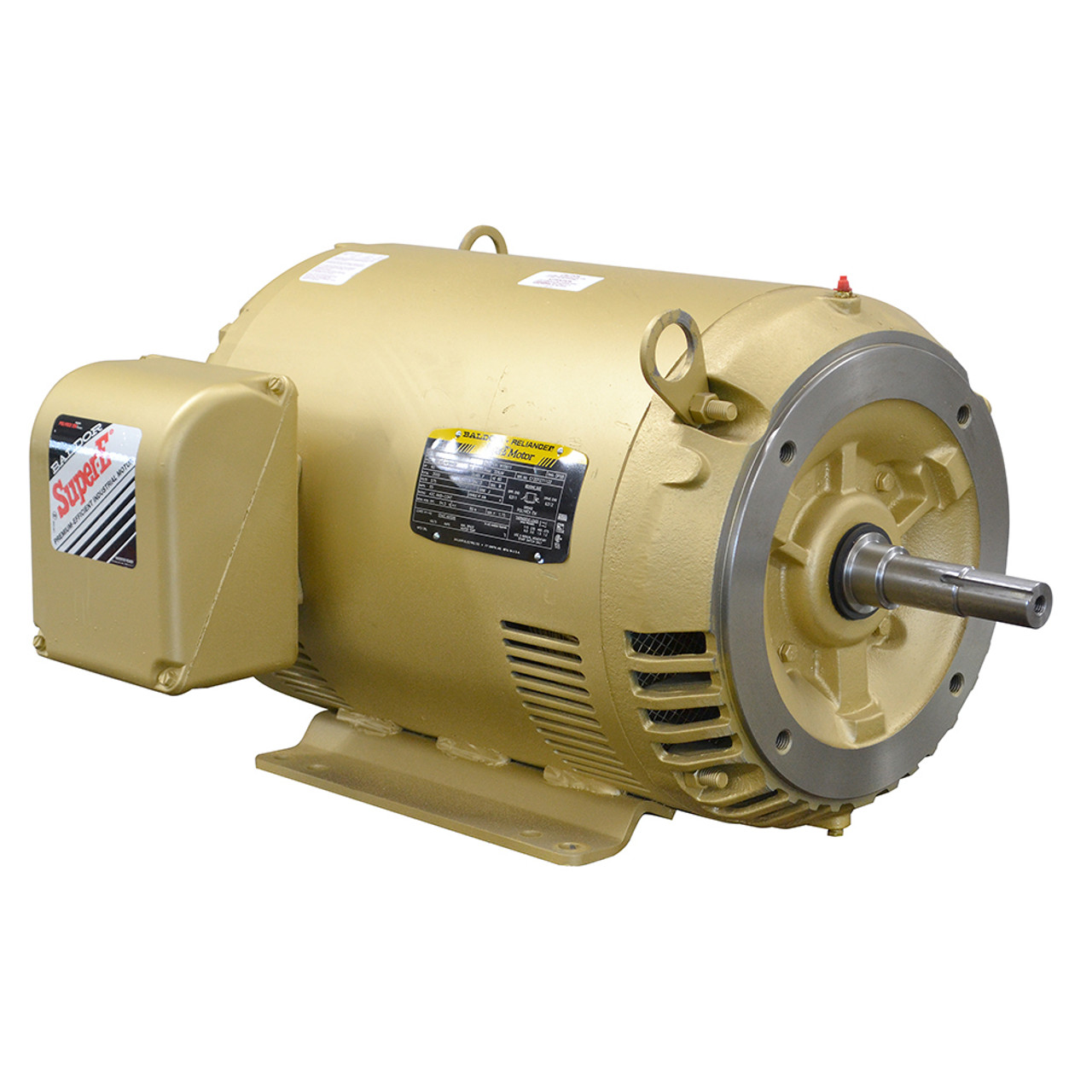

60 HP 3550 RPM 575 Volt AC 3Ph Baldor Motor M15611 [501387]

Product Description

60 HP 3550 RPM 575 VOLT AC 3PH BALDOR MOTOR
New, Baldor pump motor model# M15611

SPECIFICATIONS

• Brand Baldor
• Model Number M15611
• Power 60 HP
• Voltage 575 AC
• Phase 3
• Frequency 60 Hz
• Amperage 55 Amps
• Speed 3550 RPM
• Rotation Reversible
• Service Factor 1.15
• Bearings Ball
• Enclosure OPSB
• Duty Continuous
• Frame 326JM
• Base Mount Four 0.66" diam. holes on 12-1/2" x 12" centers
• Face Mount Four 5/8"-11 tapped holes on 11" diameter bolt circle
• Shaft 1-3/8" dia. x 2-3/8" stepped down to 1-1/4" dai. x 2-1/4" w/ 1/4" keyway
• Size 27-7/8" x 21" x 15-1/2"
• Shpg. 558 lbs.
