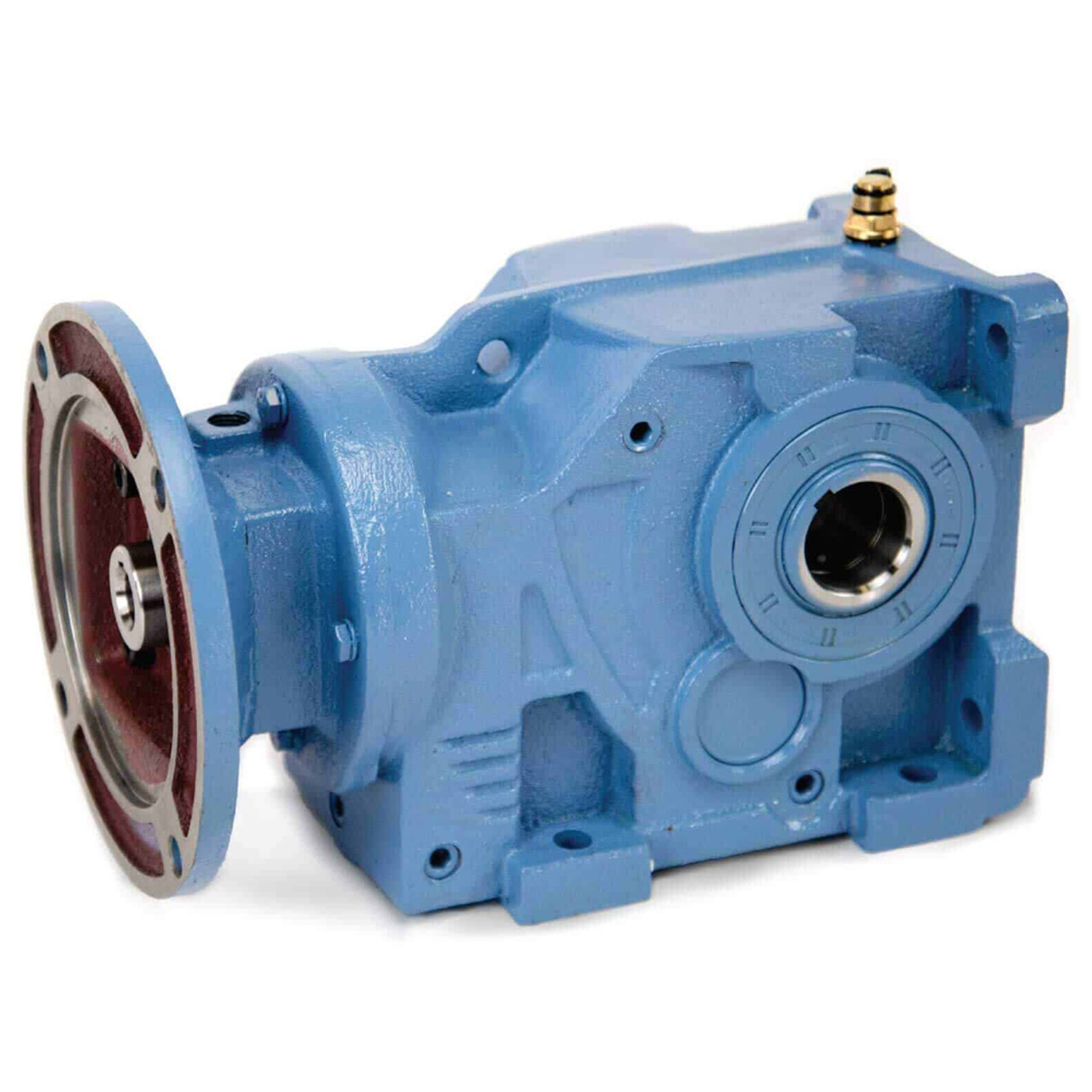

8.31:1 Size 97 81.48 HP Helical Bevel Gear Reducer Worldwide KHN97-7.5/1-H-254/256TC [603456]

Product Description

8.31:1 Size 97 81.48 HP Helical Bevel Gear Reducer WWE KHN97-7.5/1-H-254/6TC
Brand new, World Wide Electric helical bevel gear reducer. Cast iron housing. Gearbox flanges are designed to accept NEMA C-Face electric motors. Foot mounts for horizontal or vertical mounting, hollow output bore. Ball bearings on the input and output shafts and precision ground gears for better rotation and quieter operation. Pre-filled with HD320 mineral oil. Single shaft and double shaft output kits available (sold separately).

SPECIFICATIONS

• Manufacturer World Wide Electric
• Model Number KHN97-7.5/1-H-254/6TC
• Box Size 97
• Gear Stages 3
• Nominal Ratio 7.5:1
• Actual Ratio 8.31:1
• Output RPM @ 1750 RPM Input 211 RPM
• Input HP 81.48 HP max.
• Output Torque 22095 in.-lbs. max.
• Over-Hung Load 5010 lbs. max.
• Motor Mount 254/6TC
• Output Bore 2-3/4" Hollow Keyed, 5/8" Keyway
• Horizontal Foot Mount Four 1.02" holes on 9.45" x 9.45" centers
• Vertical Foot Mount Four 1.02" holes on 9.45" x 11.61" centers
• Cross Reference SEW K97
• Size 22.81" x 11.81" x 16.42"
• Shpg. 399 lbs.
