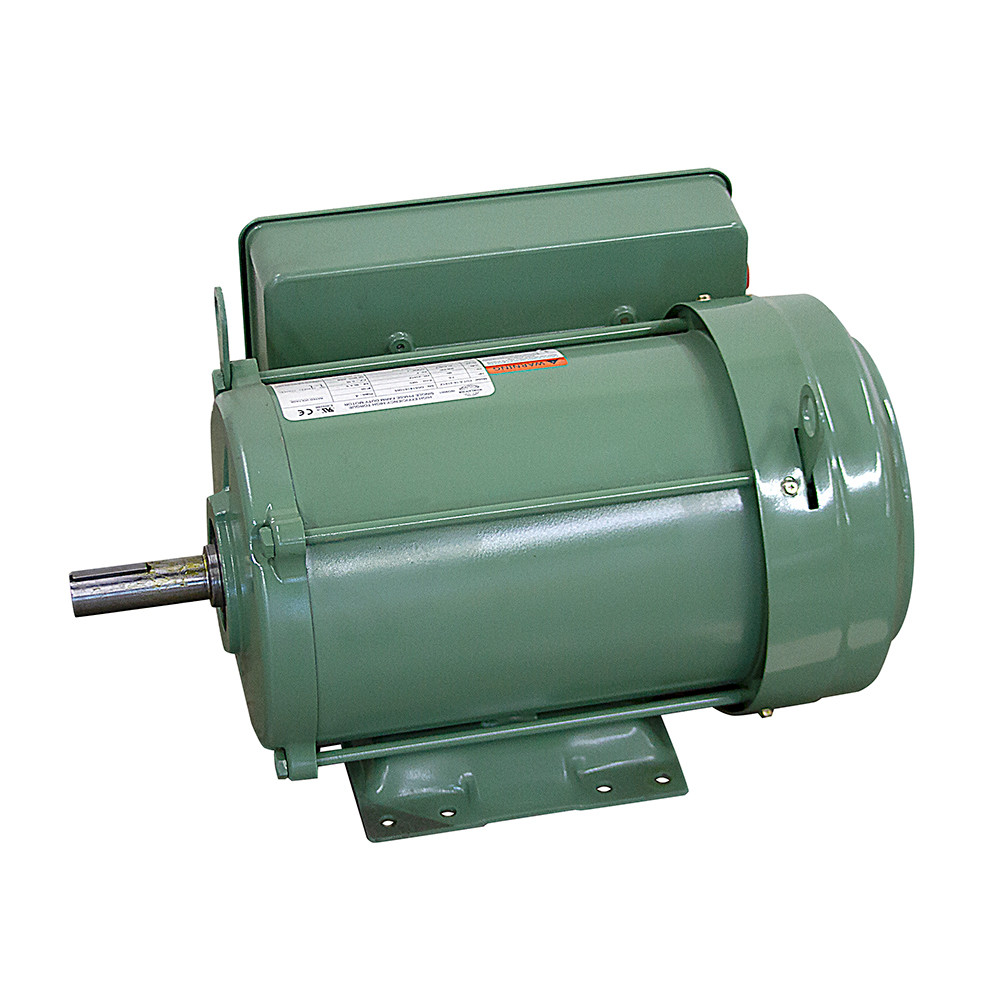

7.5 HP 208-230 Volt AC 1767 RPM WWE FD7.5-18-215TZ Farm Duty Motor [501565]

Product Description

7.5 HP 1767 RPM 208-230 VAC BASE MOUNT MOTOR
Brand new, WORLDWIDE FD7.5-18-215TZ, farm duty heavy duty motor for agricultural and other industrial use. Totally Enclosed Fan Cooled (TEFC) enclosures suitable for indoor or outdoor protection. Capacitor start/capacitor run motor for reduced amperage and high torque. Manual thermal overload protection.

SPECIFICATIONS

• Power 7.5 HP
• Voltage 208-230 AC
• Phase 1
• Frequency 60 Hz
• Amperage 31.5/28.7 Amps
• Speed 1767 RPM
• Rotation Reversible
• Service Factor 1.15
• Bearings Ball
• Thermal Overload Protection Manual
• Enclosure TEFC
• Duty Continuous
• Frame 215TZ
• Base Mount Eight 3/8" holes on 1-1/2" to 5-1/2" to 7" x 8-1/2" centers
• Shaft 1-1/8" dia. x 3-1/2" overall length w/ 1/4" wide x 1-3/4" long keyway
• Size 20" x 14" x 11-1/2"
• Shpg. 183 lbs.
