Product Description

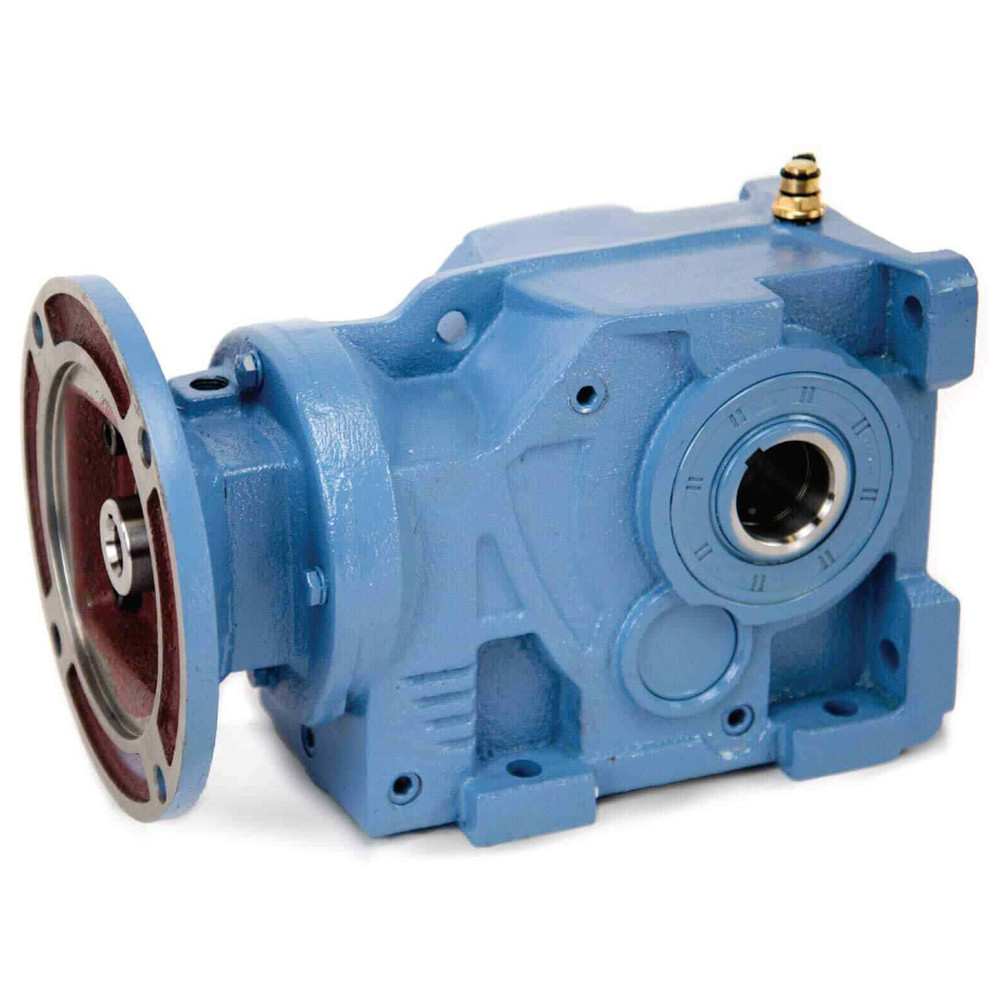

72.35:1 Size 87 9.73 HP Helical Bevel Gear Reducer WWE KHN87-70/1-H-184TCBrand new, World Wide Electric helical bevel gear reducer. Cast iron housing. Gearbox flanges are designed to accept NEMA C-Face electric motors. Foot mounts for horizontal or vertical mounting, hollow output bore. Ball bearings on the input and output shafts and precision ground gears for better rotation and quieter operation. Pre-filled with HD320 mineral oil. Single shaft and double shaft output kits available (sold separately).
SPECIFICATIONS
- Manufacturer World Wide Electric
- Model Number KHN87-70/1-H-184TC
- Box Size 87
- Gear Stages 3
- Nominal Ratio 70:1
- Actual Ratio 72.35:1
- Output RPM @ 1750 RPM Input 24 RPM
- Input HP 9.73 HP max.
- Output Torque 22970 in.-lbs. max.
- Over-Hung Load 3500 lbs. max.
- Motor Mount 184TC
- Output Bore 2-3/8" Hollow Keyed, 5/8" Keyway
- Horizontal Foot Mount Four 0.87" holes on 7.09" x 7.09" centers
- Vertical Foot Mount Four 0.87" holes on 7.09" x 9.17" centers
- Cross Reference SEW K87
- Size 17.99" x 9.0" x 13.39"
- Shpg. 214 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Truck true
Prop65 true
Legacy Part Number 13-1612-70-184TC
Dimensional Diagram dr13-1612-70-184TC.PDF
Badges drop-ship
Frame 87
Input HP 9
Motor Mount 184TC
Nominal Ratio 70:1
