  • 8.5x24.5x3.5 Double Acting Hydraulic Cylinder Iowa Industrial Hydraulics M-1497-001 [906015]
  • 8.5x24.5x3.5 Double Acting Hydraulic Cylinder Iowa Industrial Hydraulics M-1497-001 [906015]
  • 8.5x24.5x3.5 Double Acting Hydraulic Cylinder Iowa Industrial Hydraulics M-1497-001 [906015]

    • 8.5x24.5x3.5 Double Acting Hydraulic Cylinder Iowa Industrial Hydraulics M-1497-001 [906015]

    Item Number: 906015

    Legacy Part Number: 9-3462

    (No reviews yet) Write a Review

    In Stock

    Surplus Item
    $599.95
    Adding to cart… category.add_cart_announcement

    Must ship via Truck Freight

    Please contact us for a quote.

    Product Description

    8.5" x 24.5" x 3.5" HYD CYL
    Unused old inventory. IOWA INDUSTRIAL HYDRAULICS M-1497-001, welded, double acting hydraulic cylinder.

    SPECIFICATIONS
    • Double Acting
    • Bore x Stroke 8.5" x 24.5"
    • Gland Retainer Threaded in
    • Pressure 2500 PSI max.
    • Rod Dia. 3.5"
    • Manifold Ports Two, 0.57" O.D. holes
    • Manifold Mount Four, 3/8"-16 TPI x 1" tapped holes on 4.125" x 2.375" centers
    • Manifold Dimensions 5.5" x 3.5"
    • Retracted Length 40.5"
    • Gland Face to Rod Pin Center 3.5"
    • Shpg. 430 lbs.
    END MOUNTINGS
    • Rod End Tang
    • Width 4.529"
    • Pin-Center-To-Tang-End 3"
    • Pin Hole 3.5"

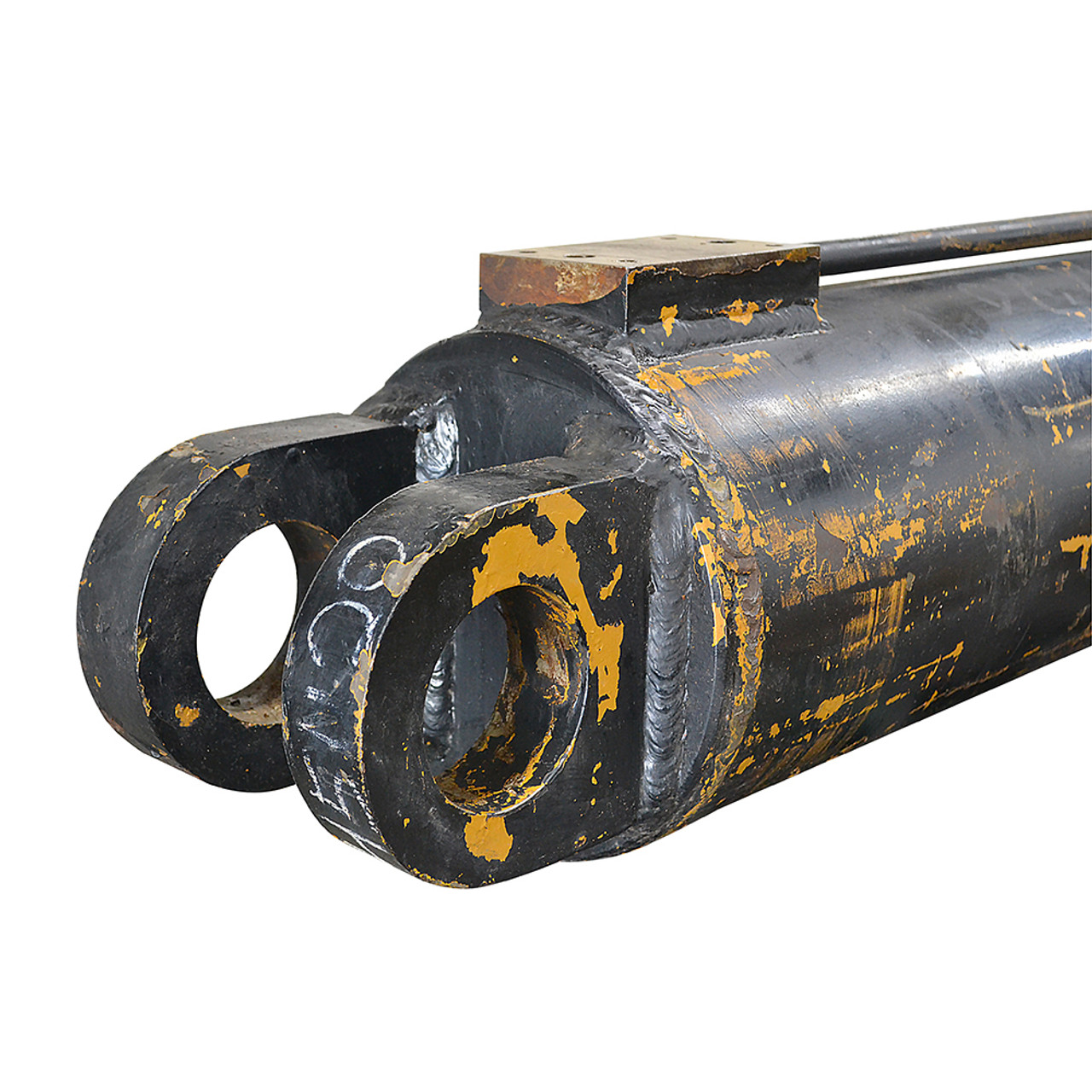

    • Base End Clevis
    • Outside Width 7.194"
    • Inside Width 3.619"
    • Throat Depth 6"
    • Pin Hole 3.5"

    Product Videos

    Custom Field

    Truck true
    Prop65 true
    Legacy Part Number 9-3462
    Badges surplus-item,last-one
    Base End Clevis
    Base End Pin Size 3-1/2''
    Bore Range1 7'' and Larger
    Construction Type Welded
    Max PSI Up to 2500 PSI
    Ports Manifold
    Retracted Length 36'' - 47.9''
    Rod Dia 3.5''
    Rod End Tang
    Rod End Pin Size 3-1/2''
    Stroke 24.5
    Stroke Range1 24'' - 29.9''
