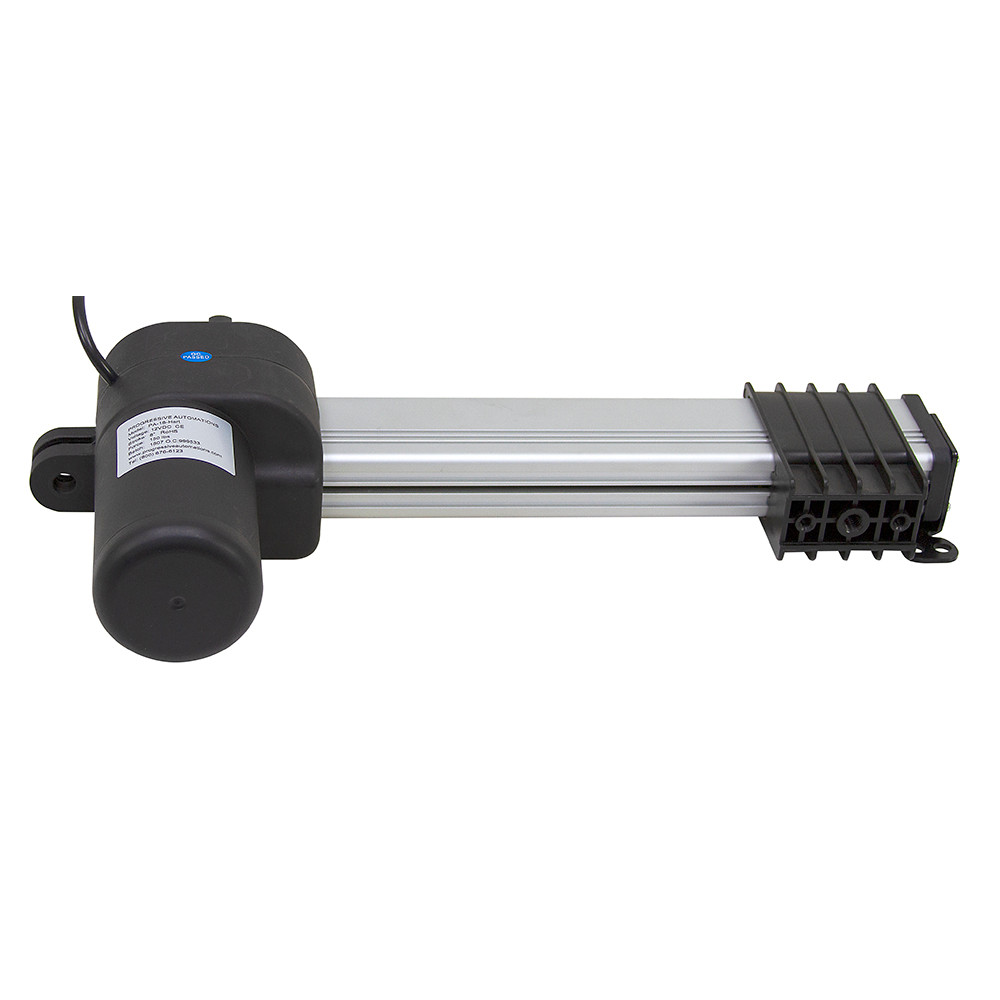

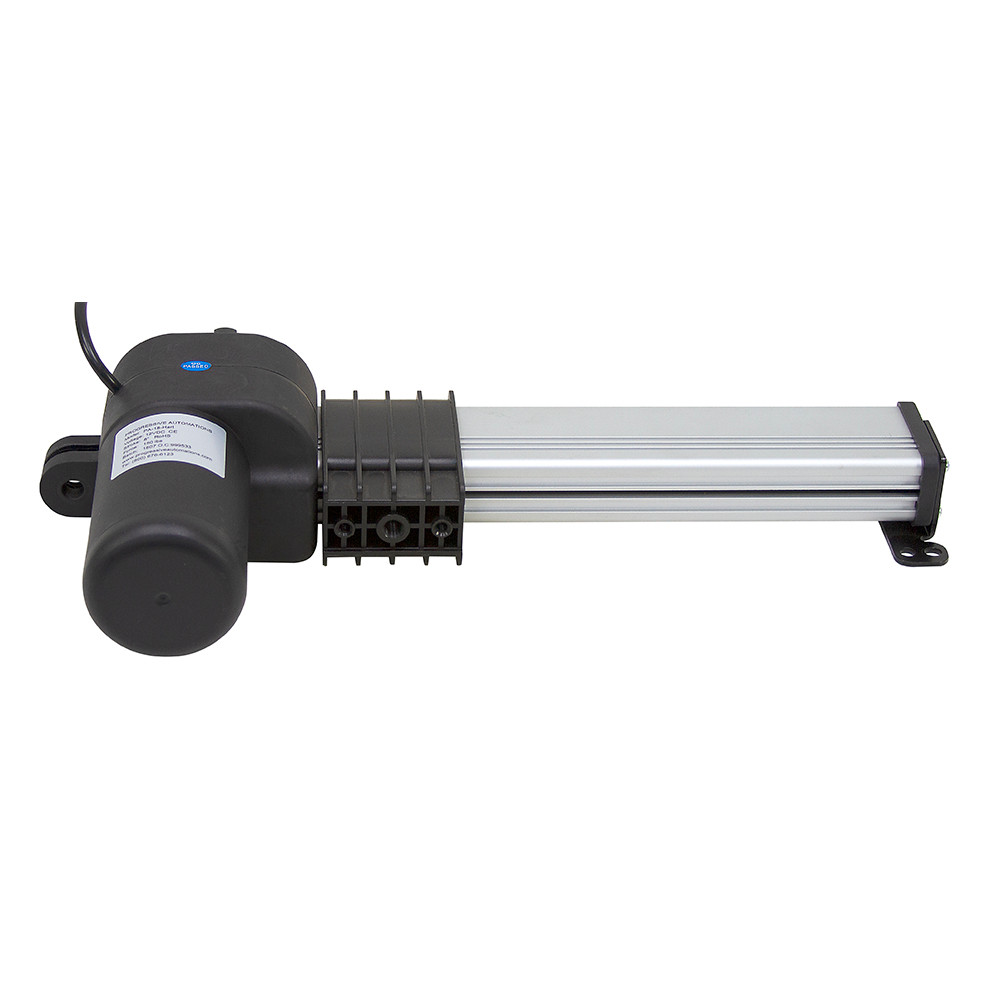

8" Stroke 150 Lbs 12 Volt DC Linear Track Actuator PA-18 Progressive Automotions [501457]

Product Description

8" STROKE 12 VDC 150 LB. LINEAR ACTUATOR with LIMIT SWITCHES
New, PROGRESSIVE AUTOMOTIONS model PA-18 linear actuator.  Linear track sliding block motion design for applications with fixed mounting points. Ideal for custom cabinetry, robotics, slide outs and other linear track applications. ACME screw drive. Permanent magnet motor. Limit switches at each end of travel. Sliding block has three tapped holes on each side.

SPECIFICATIONS

• Stroke 8"
• Voltage 12 DC
• Push/Pull Rating
    Dynamic 150 lbs. max
• Extension Speed
    No Load 1.50 in/sec
    Max Load 0.98 in/sec
• Amps
    No Load 2.5
    Full Load 8.0
• Duty 20%
• Operational Temperature Range
     -13°F to 149°F
• Enclosure IP20
• Base End Clevis Pin Hole 0.400"
• Rod End Bracket Mount Four 0.260" holes
• Sliding Block Mount 1 tapped hole M10-1.5 and 2 tapped holes M6-1.0 on each side
• Sliding Block Dimensions 2.60" x 1.780"
• Retracted Length Base to Mounting Block Center 5.875"
• Mounting Holes Length 15.68"
• Size 17-1/8" x 7-1/4" x 3-3/8"
• Shpg. 7 lbs.
