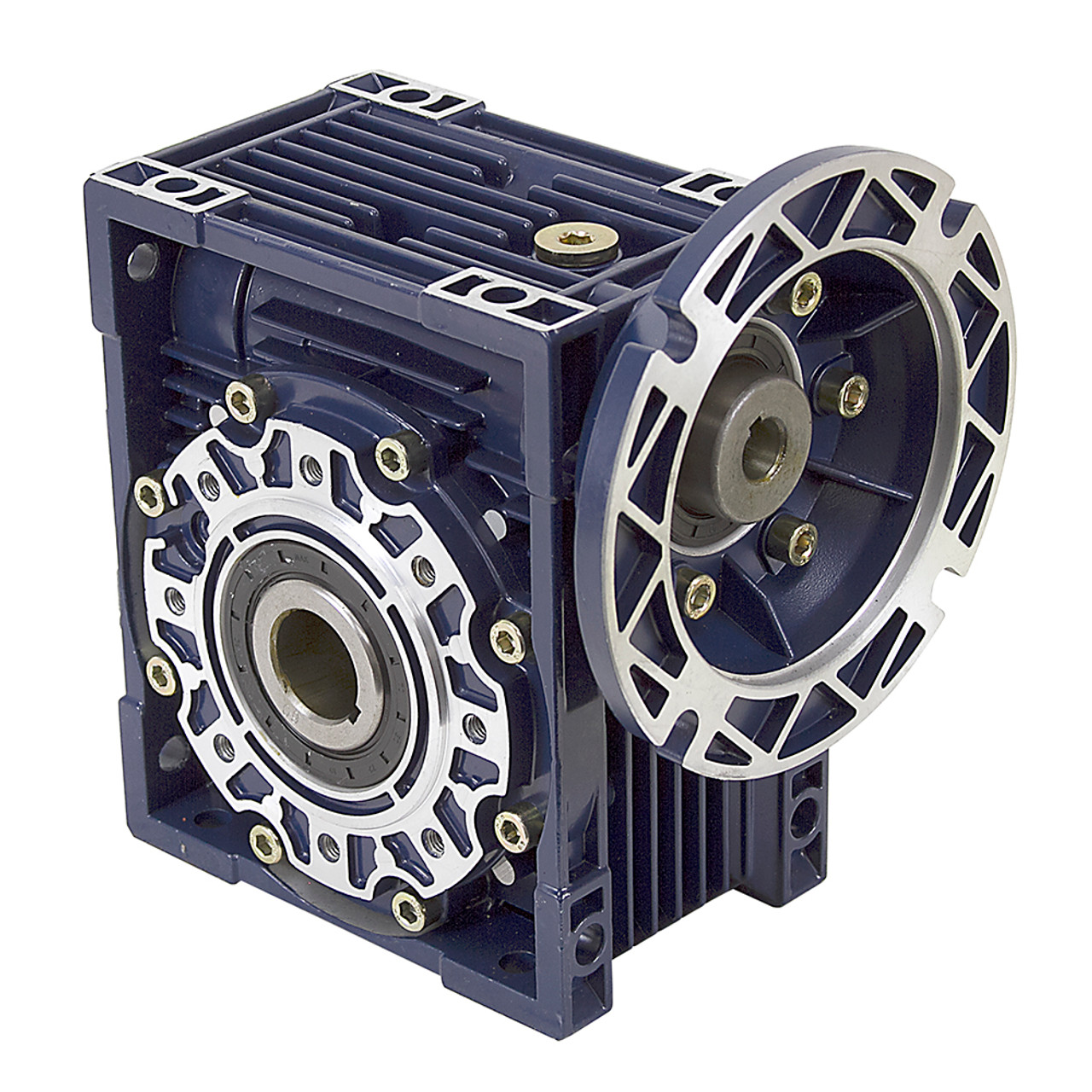

Aluminum Right Angle Worm Gear Reducer, 75 mm C.D., 80/1, 56C Input Flange, Hollow Bore Output Worldwide CALM75-80/1-56C [603097]

Product Description

Aluminum Right Angle Worm Gear Reducer, 75 mm C.D., 80/1, 56C Input Flange, Hollow Bore Output
Brand new, World Wide Electric aluminum worm gear reducer. Aluminum alloy housings. Gearbox flanges are designed to accept NEMA C-Face electric motors. Pre-filled with synthetic oil. Two bearings on the input and output shafts, double lip oil seals, epoxy paint inside and outside for rust prevention, and hollow output bores to accept plug-in output shafts (sold separately).

SPECIFICATIONS

• Brand World Wide Electric
• Model Number CALM75-80/1-56C
• Box Size 75 mm Center Distance
• Gear Ratio 80:1
• Output RPM @ 1750 RPM Input 22 RPM
• Input Hp (1.0 S.F.) 0.91 Hp Max
• Output Torque 1632 in.-lb. Max
• Over-Hung Load 1279 lbs. Max
• Output Shaft Thrust Load 256 lbs. Max
• Efficiency 62 %
• Motor Mount 56C
• Input Bore 5/8" keyed, 3/16" keyway
• Output Bore 1-1/4" keyed, 1/4" keyway
• Top & Bottom Mount 120mm x 90mm
• Back Mount 153mm x 90mm
• Overall Size 8.37" x 6.5" x 9.5"
• Shpg. 19 lbs.
