Product Description

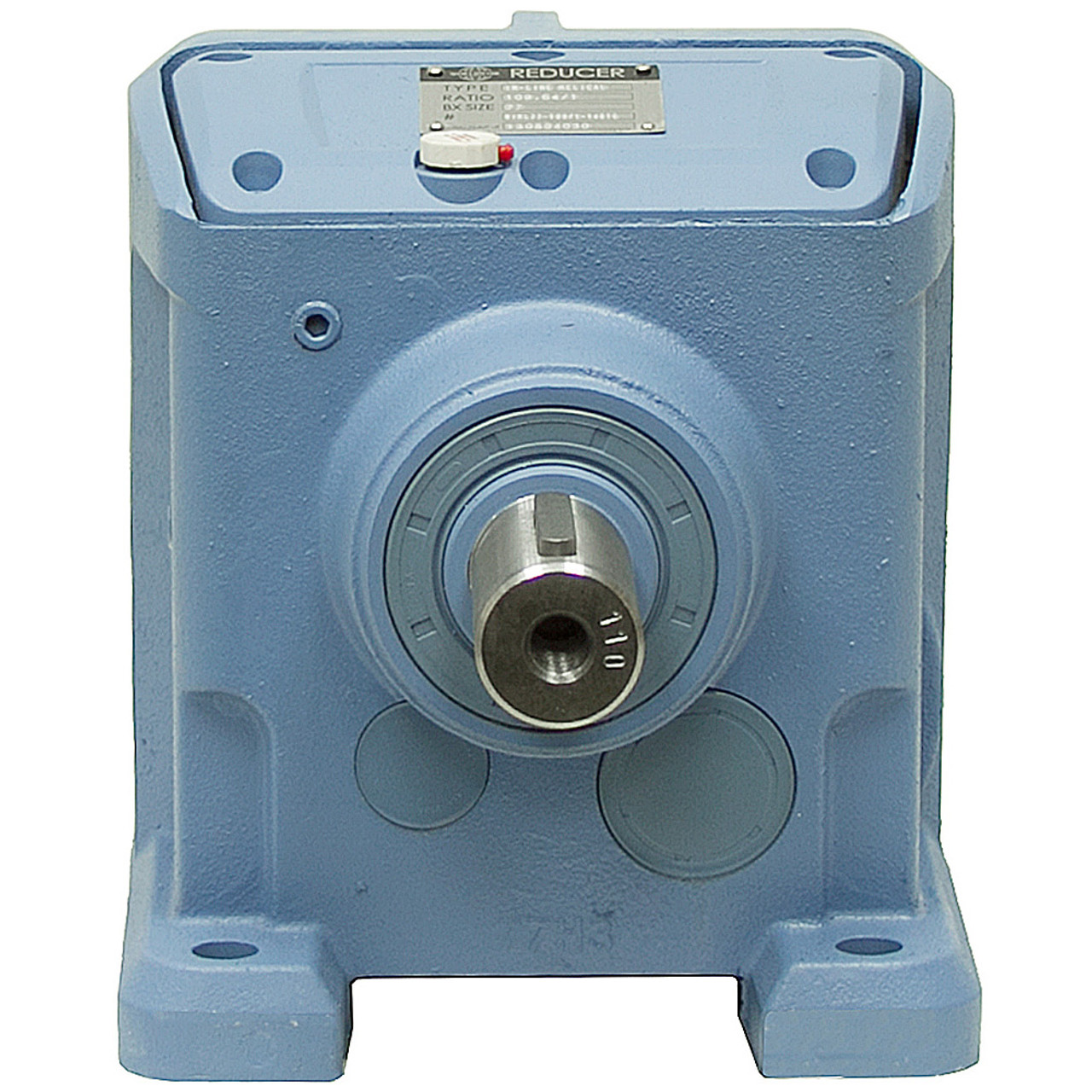

84.62:1 SIZE 77 2 HP INLINE GEAR REDUCERBrand new, World Wide Electric helical inline speed reducer. Cast iron housings. Drop-in replacement for most major inline reducer brands. Gearbox flanges are designed to accept NEMA C-Face electric motors.
SPECIFICATIONS
- Model Number WINL77-80/1-145TC
- Box Size 77
- Stages 3
- Nominal Ratio 80:1
- Actual Ratio 84.62:1
- Input Rotation Reversible, see shaft relation in above photo
- Output RPM @ 1800 RPM Input 21 RPM
- Input Hp 2 Hp Max
- Output Torque 5510 in.-lbs. Max
- Over-Hung Load 1935 lbs. Max
- Service Class I
- Motor Mount 145TC
- Output Shaft 1.625" dia. x 3.15" long keyed, 3/8" wide keyway, shaft end tapped 5/8"-11
- Base Mount Four 0.71" holes on 8.07" x 6.69" centers
- Shpg. 83 lbs.
