9.35 cu in Hydraulic Wheel Motor Young Hydraulic YMPW-160-WT-TW3-S-B-N1-NCD-02

Product Description

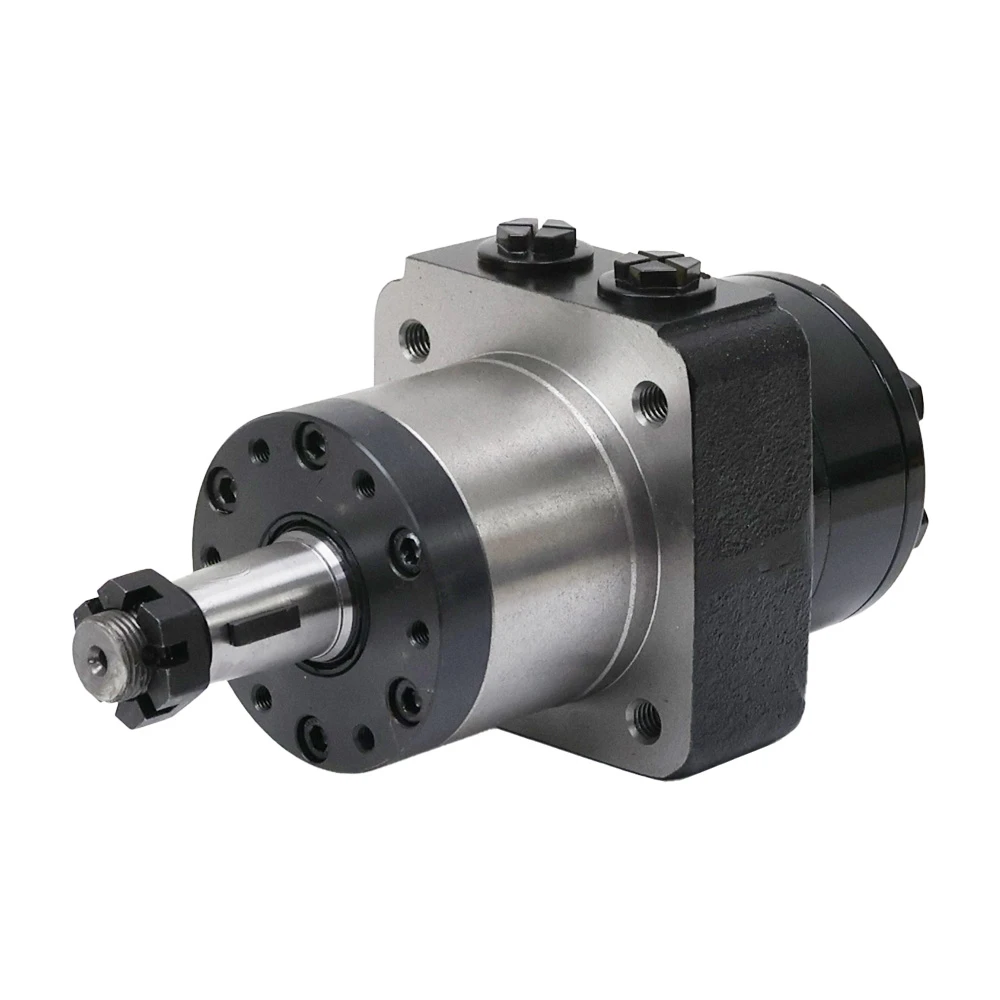

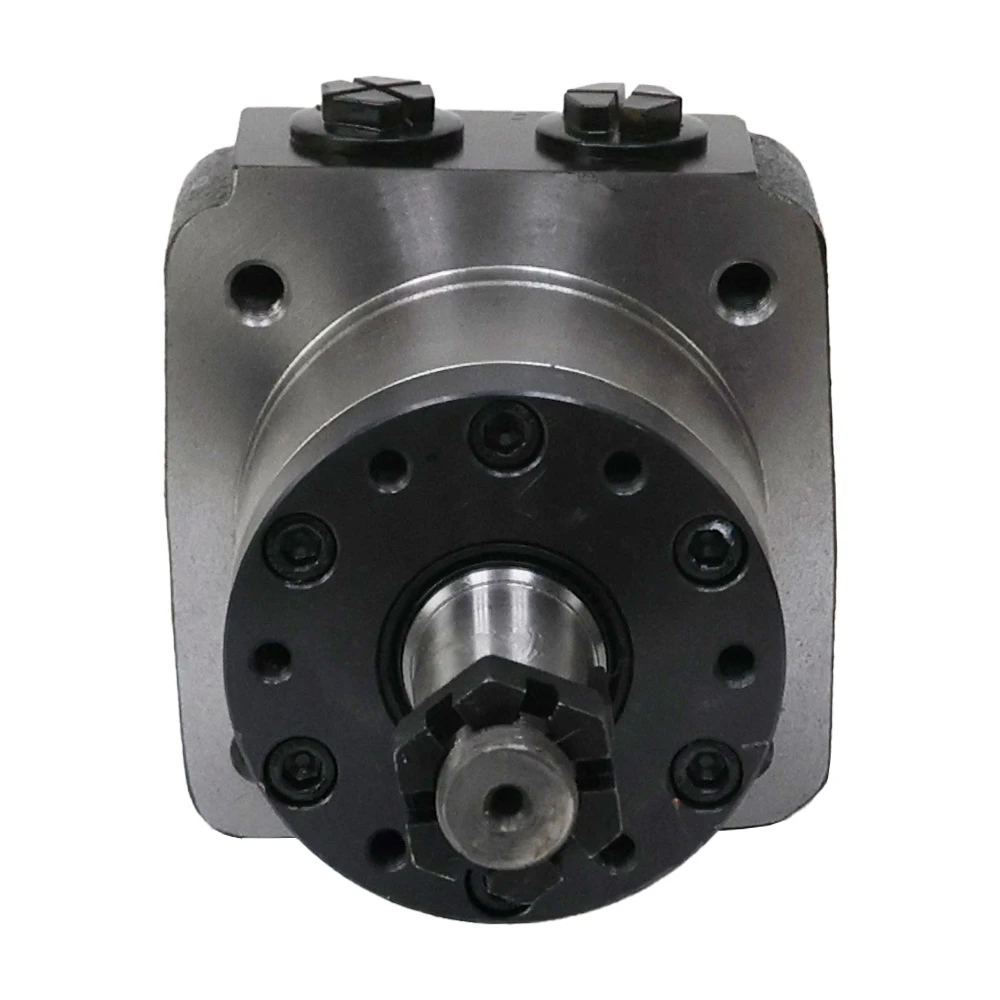

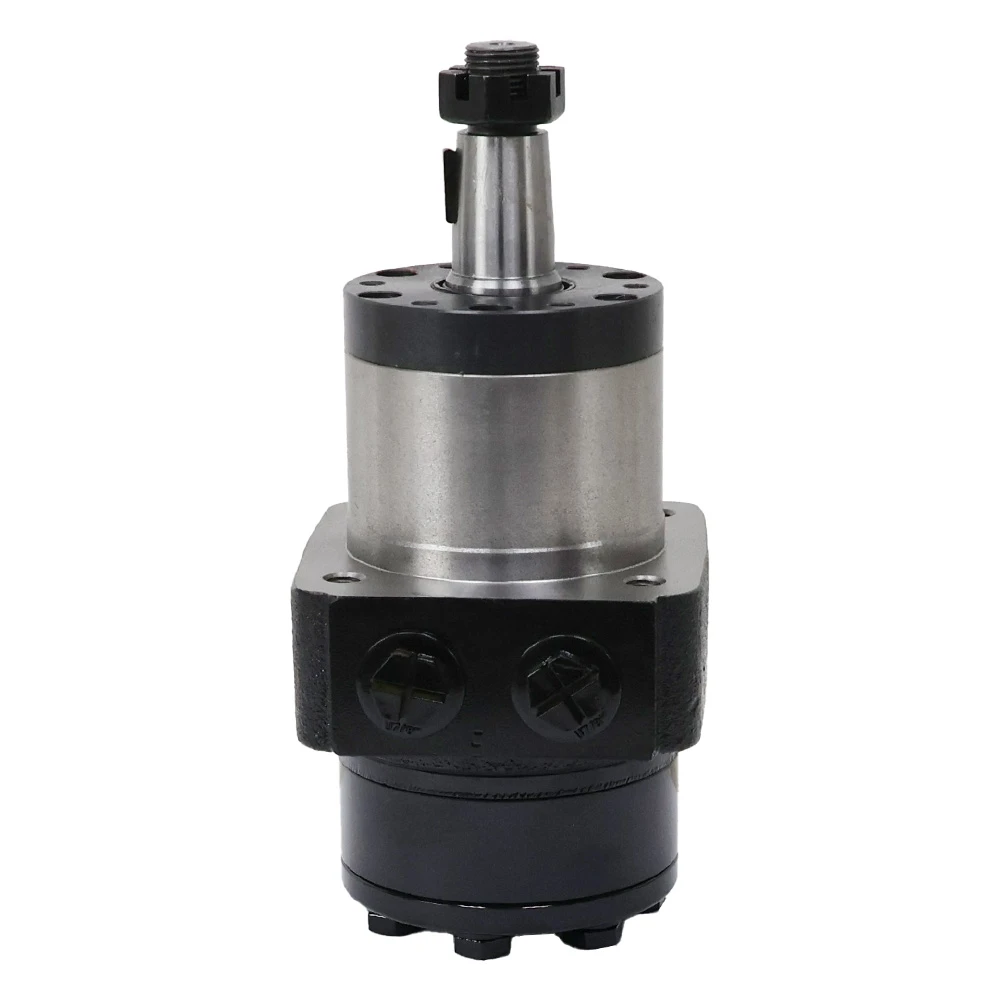

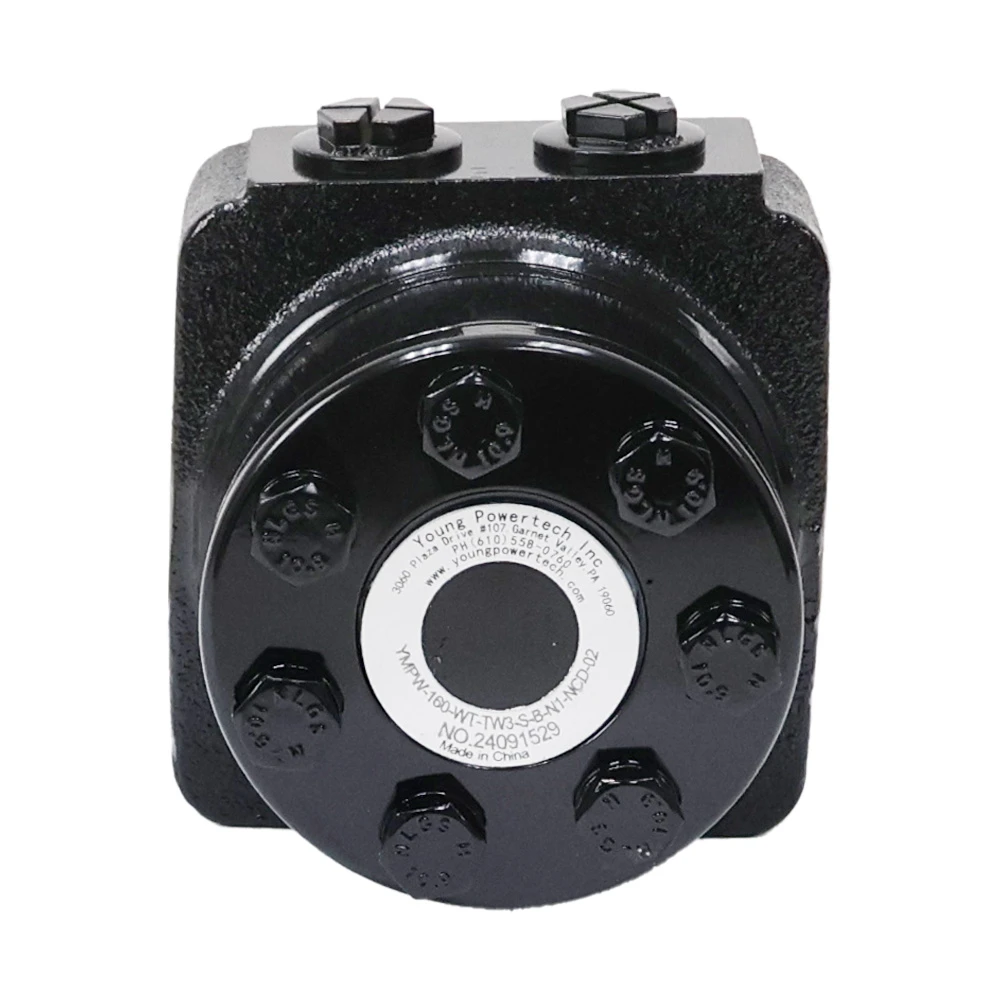

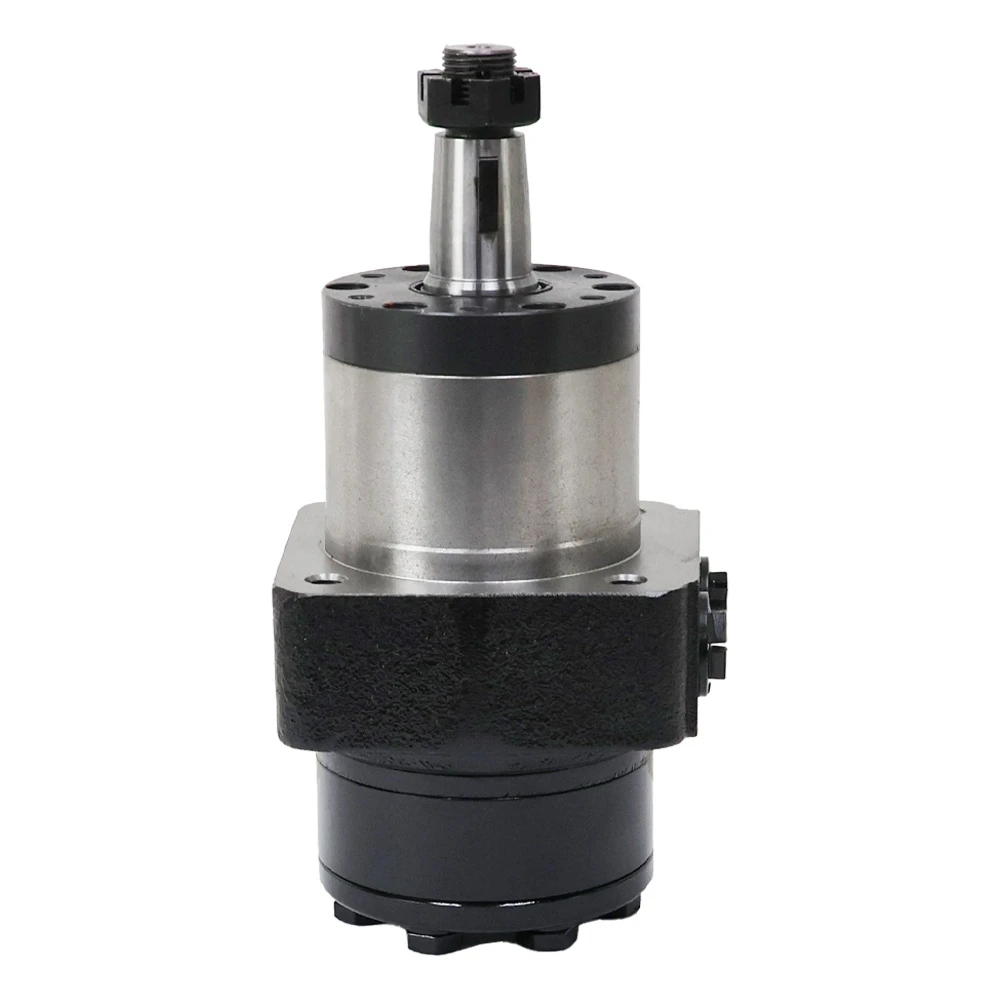

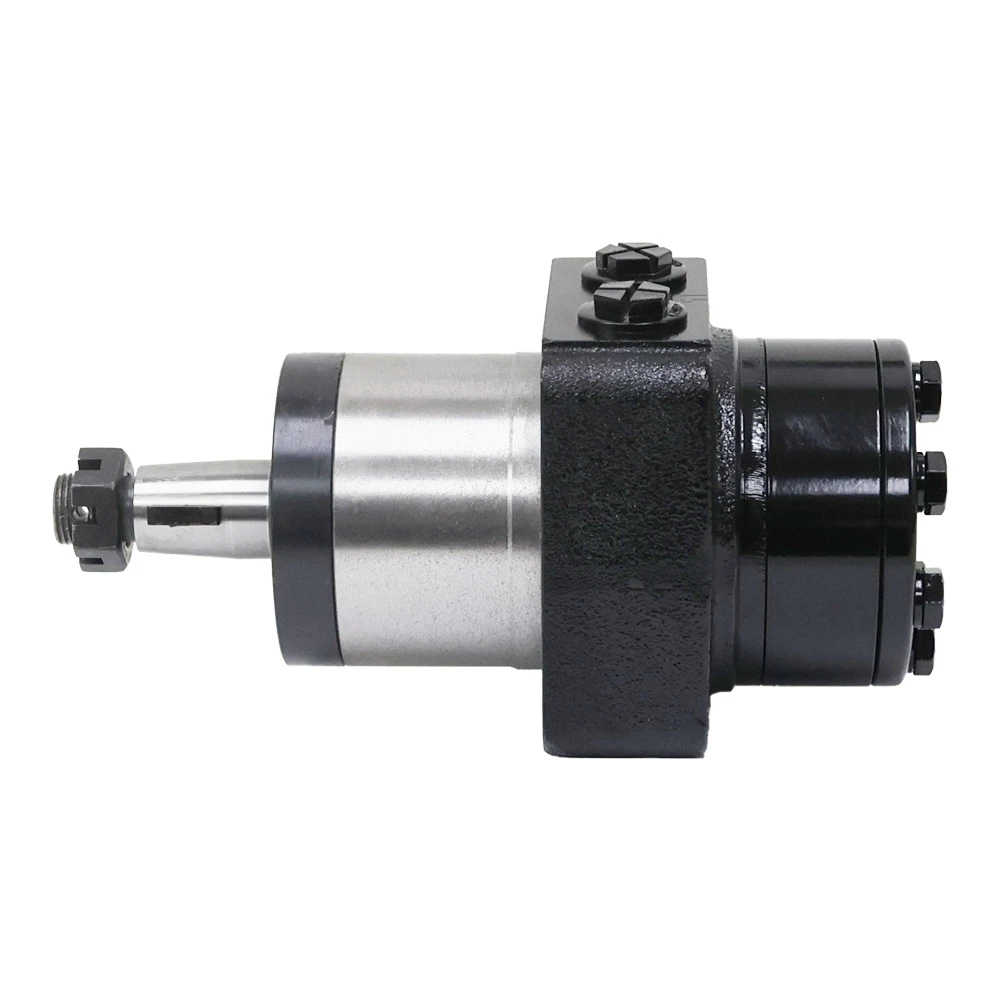

9.35 cu in YOUNG POWERTECH HYDRAULIC WHEEL MOTOR
New Young Powertech YMPW-160-WT-TW3-S-B-N1-NCD-02 hydraulic wheel motor with shaft distribution and rotor type build.

SPECIFICATIONS

• Brand Young Powertech
• Model YMPW-160-WT-TW3-S-B-N1-NCD-02
• Family YMPW
• Displacement 9.35 cu. in. / rev.
• Motor Type Rotor
• Rotation Reversible
• Pressure:
    1812 PSI cont.
     2030 PSI int.
• Torque:
     2167 in-lbs. cont.
     2478 in-lbs. int.
• Speed:
     370 RPM cont.
     390 RPM int.
• Flow:
     15.8 GPM cont.
     19.8 GPM int.
• Mount 4 bolt Wheel w/ 3/8"-16 TPI threaded holes
     4.00" Bolt Circle, 3.15" Pilot Dia.
• Shaft 1.0" Tapered x 2.19" Shaft w/ 0.198" Woodruff Key and 3/4"-16 TPI Threaded End
• Ports SAE 10
• Case Drain None
• Size 8.69" x 4.13" x 3.93"
• Shpg. 19 lbs.
