9" 70 CFM 24 Volt DC Fan SF0924514 [501206]

Product Description

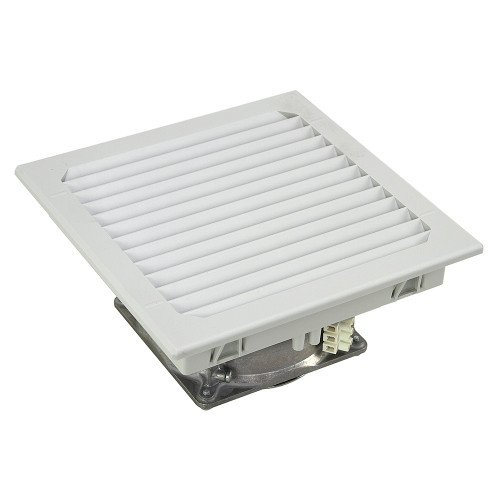

9" GRILL 70 CFM 24 VDC FILTER FAN
New, Pentair fresh air enclosure filter fan model SF0924514. High airflow and low noise for cooling electrical equipment or general air circulation. Grey plastic grill. Air is pulled through the plastic grill and filter. Metal housing with plastic blades. Click-fit design installs into enclosure wall. Snap over grill with paper filter. 51db rating. Terminal block electrical connection.

SPECIFICATIONS

• Pull Type Fan
• Model Number SF0924514
• Flow 70 CFM max.
• Voltage 24 DC
• Amperage 0.17 Amps
• Power 4.1 Watts
• Speed 3050 RPM
• Operating Temperature Range Min. -4° F to Max. 149° F
• IP Rating 55
• Mount 8 holes on 3-5/8" to 7-1/4" x 3-5/8" to 7-1/4" centers
• Cutout Dimensions 6.97" x 6.97"
• Blade Dia. 4-5/16"
• Number of Blades 5
• Size 8-1/16" x 8-1/16" x 3-9/16"
• Shpg. 3 lbs.
