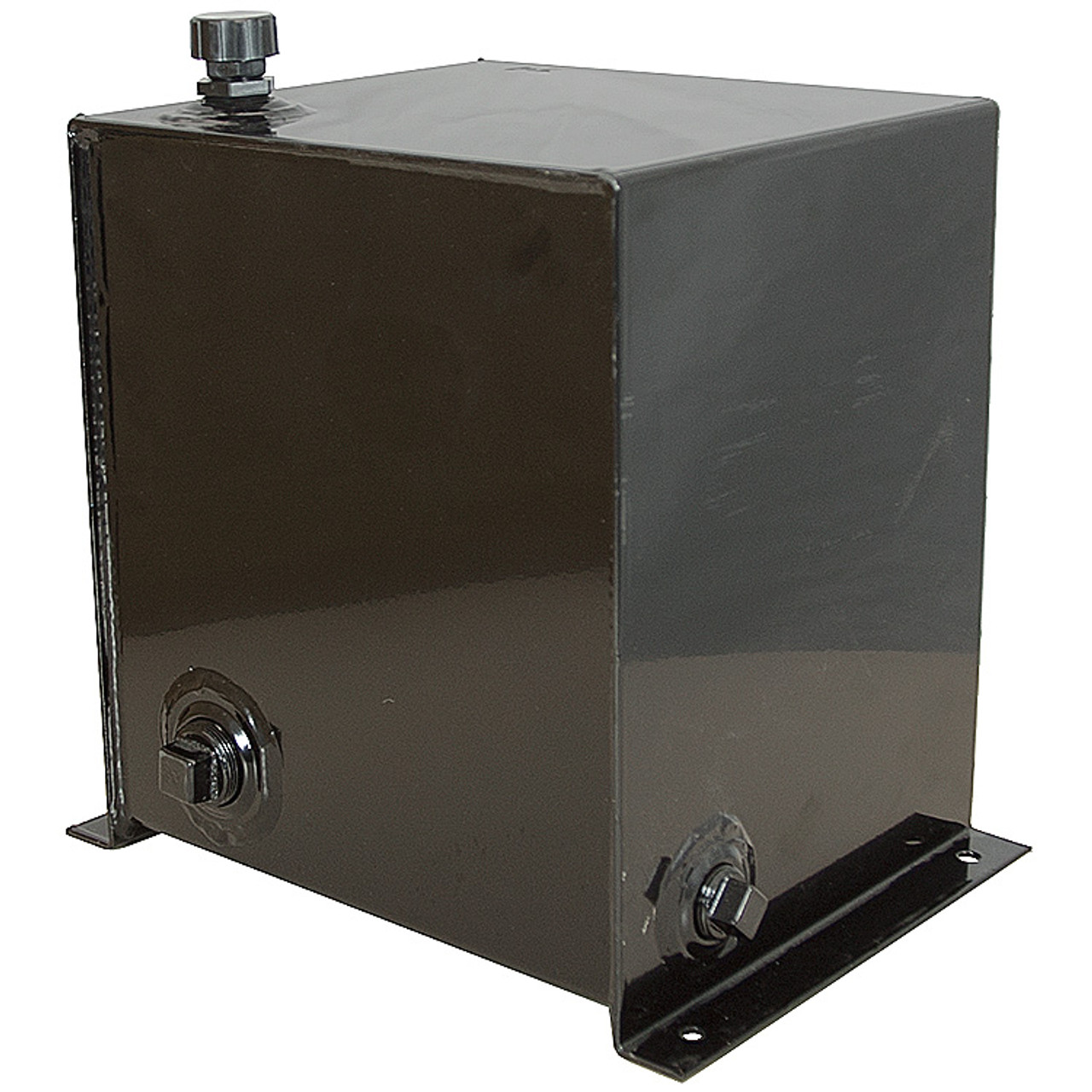

9.8 Gallon Hydraulic Reservoir Buyers Products SMR7S [902359]

Product Description

STEEL HYDRAULIC RESERVOIR
Brand new, BUYERS model SMR7S hydraulic reservoir. Constructed of 10 & 12 gauge black powder coated steel. Magnetic drain plug. All sides are ported, allowing multiple position mounting. Suction ports on opposing sides and bottom. Return ports on the other two sides and top. Whichever return port is at the top of the tank is intended to be used as the filler/breather port. Plastic breather cap included. Plastic 1" NPTM to 3/4" NPTF bushing for breather cap.

SPECIFICATIONS

• Brand Buyers Products
• Model Number SMR7S
• Nominal Oil Capacity 9.8 Gallon
• Usable Oil Capacity 7 Gallon
• Ports:
     Suction 1-1/4" NPT x three
     Return/Filler/Breather 1" NPT x three
     Drain 3/4" NPT x one
• Mount
     Four bolt holes on 14-1/4" x 9-1/4" centers
• Mounting Holes 7/16" diam.
• Size 15-3/4" x 14-7/8" x 11-3/4"
• Shpg. 43 lbs.
