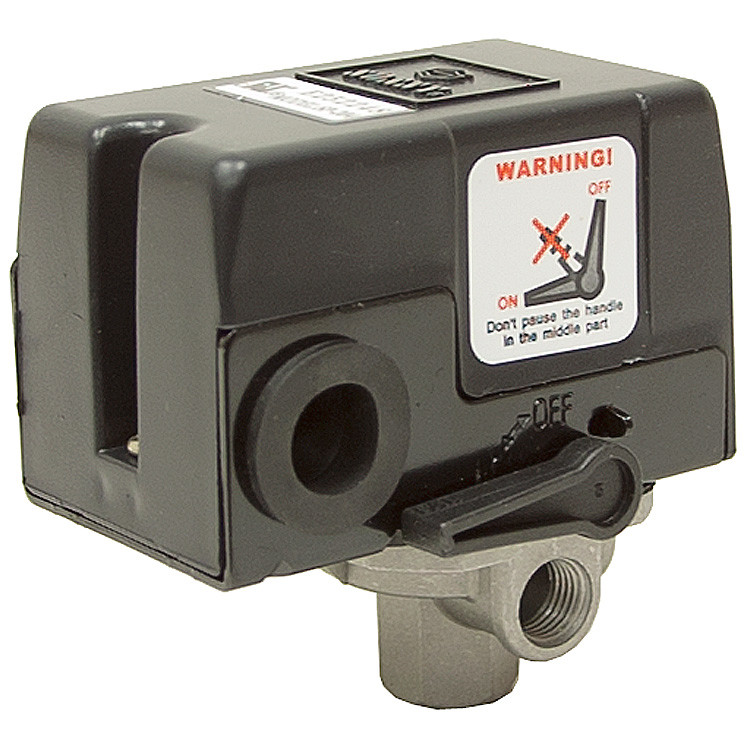

95-125 PSI Four Port 25 Amp Pressure Switch Sunny L4 [400265]

Product Description

Brand new, SUNNY automatic pressure switch for compressed air systems. Automatically turns electric motor ON or OFF at set values. Adjustable differential. Unloader port 1/4" OD copper tubing which allows compressor to start without back pressure load. Sturdy plastic housing. Manual off switch. Four port.

SPECIFICATIONS

• Contact Ratings
    25 amps @ 120 VAC
     25 amps @ 240 VAC
    25 amps @ 240 VAC 3PH
    25 amps @ 32 VDC
    25 amps @ 120 VDC
    25 amps @ 230 VDC
• Factory Setting
    ON (Cut-In) 95 PSI
    OFF (Cut-Out) 125 PSI
• Differential Range 28 to 40 PSI
• Port 1/4" NPT (x4)
• Size 3-3/4" x 3" x 3-1/8"
• Shpg. 1-1/2 lbs.
