Product Description

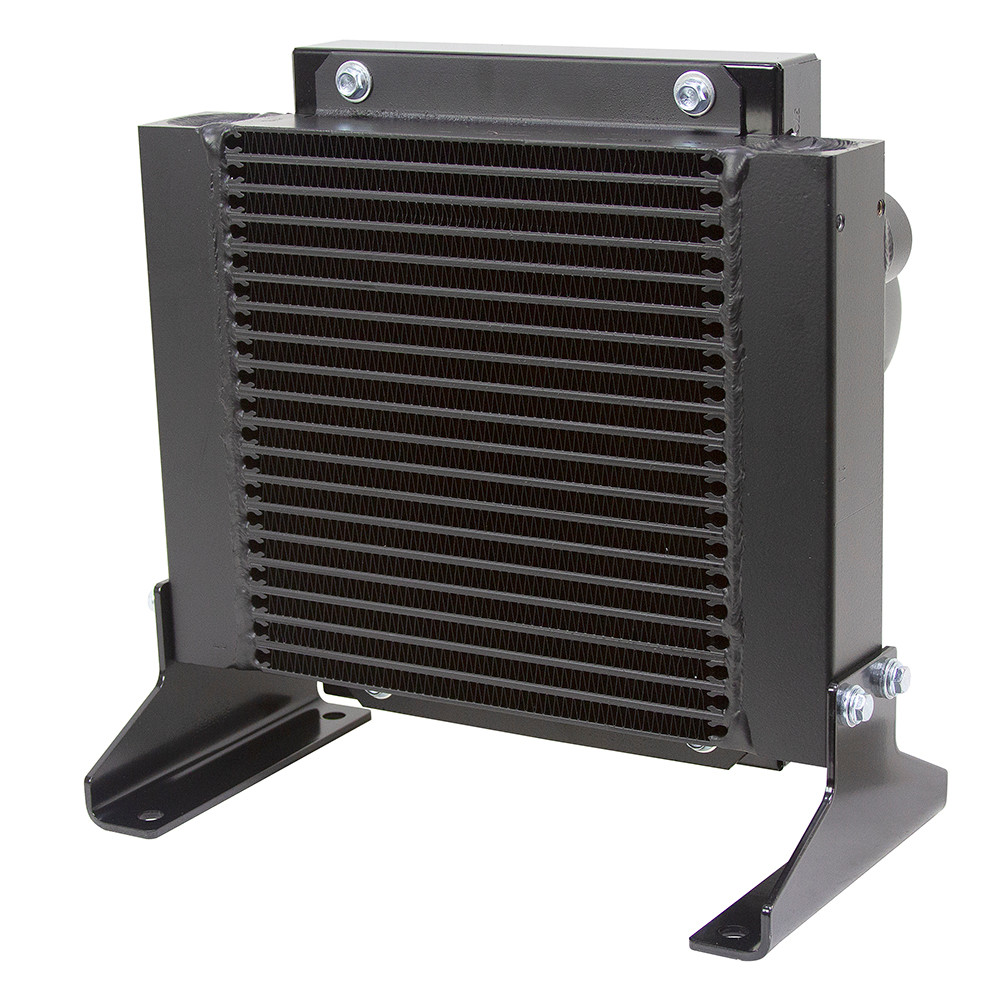

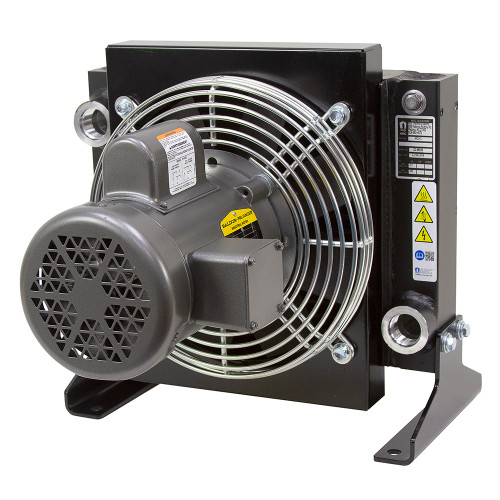

50 GPM AKG AR10-1 Oil Cooler w/ 115/230 Volt AC FanBrand NEW AKG AR series oil cooler that features aluminum construction, 115/230 Volt AC 1 phase fan, leak-free SAE O-Ring connections, zinc plated steel fan guard and powder painted steel mounting brackets.
SPECIFICATIONS
- Manufacturer AKG
- Model Number AR10-1
- Pressure 377 PSI max.
- Temperature 250 F° max.
- Construction Aluminum cooler and steel shroud/mounting brackets
- Flow 50 GPM
- Fan Motor HP 1/2
- Phase 1
- Fan Motor Voltage 115/230
- Amps 7/3.5
- Heat Removed Based On 50 F°
Entering Temperature Difference (BTU/HR) 27033 - Airflow Direction Pull
- Port Size SAE 16
- Mount Four 1/2" bolt holes on 7.09" x 13.86" centers
- Overall Depth (in.) 14.5
- Overall Width (in.) 15.75
- Overall Height (in.) 15.91
- Shpg. 51 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 9-12676-10-1
PDF Page Catalog298-85.pdf
Badges made-in-usa,regular-stock
Air Flow Type AC Single Phase Fan
Heat Rejection Rate 200000 to 29999 BTU/Hr
Max Flow 50 GPM
Voltage 115/230 Volt AC
![50 GPM AKG AR10-1 Oil Cooler w/ 115/230 Volt AC Fan [904704]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/10156/113455/9-12676-10-1__40056.1762809573.jpg?c=1 "50 GPM AKG AR10-1 Oil Cooler w/ 115/230 Volt AC Fan [904704]")
![50 GPM AKG AR15-1 Oil Cooler w/ 115/230 Volt AC Fan [904705]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/10178/113457/9-12676-15-1__55329.1762809574.jpg?c=1 "50 GPM AKG AR15-1 Oil Cooler w/ 115/230 Volt AC Fan [904705]")
![50 GPM AKG AR15-1 Oil Cooler w/ 115/230 Volt AC Fan [904705]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/10178/113458/9-12676-15-1_1__31909.1762809574.jpg?c=1 "50 GPM AKG AR15-1 Oil Cooler w/ 115/230 Volt AC Fan [904705]")
![30 GPM AKG AR8-1 Oil Cooler w/ 115/230 Volt AC Fan [904703]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/10134/113453/9-12676-8-1__06682.1762809573.jpg?c=1 "30 GPM AKG AR8-1 Oil Cooler w/ 115/230 Volt AC Fan [904703]")
![30 GPM AKG AR8-1 Oil Cooler w/ 115/230 Volt AC Fan [904703]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/10134/113454/9-12676-8-1_1__86044.1762809573.jpg?c=1 "30 GPM AKG AR8-1 Oil Cooler w/ 115/230 Volt AC Fan [904703]")

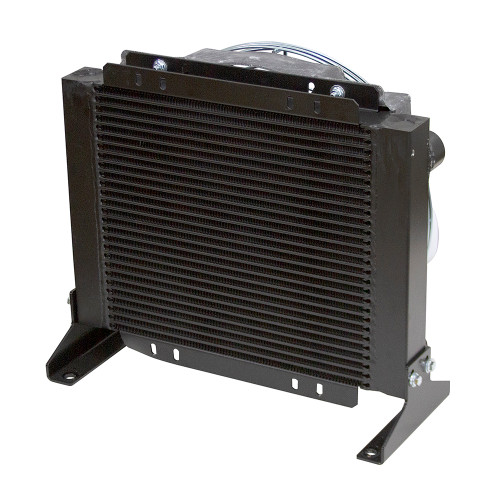

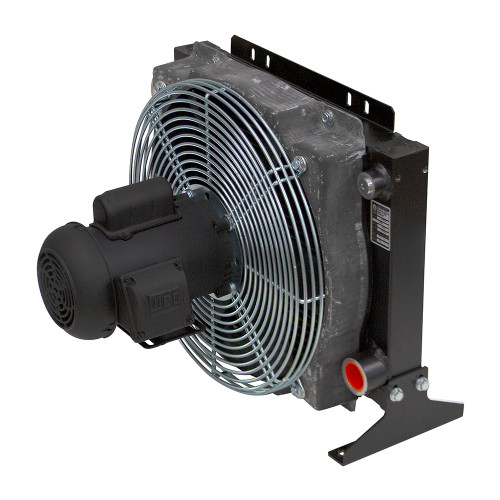

![80 GPM AKG AR20-1 Oil Cooler w/ 115/230 Volt AC Fan [904706]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/10205/113459/9-12676-20-1__60262.1762809574.jpg?c=1 "80 GPM AKG AR20-1 Oil Cooler w/ 115/230 Volt AC Fan [904706]")
