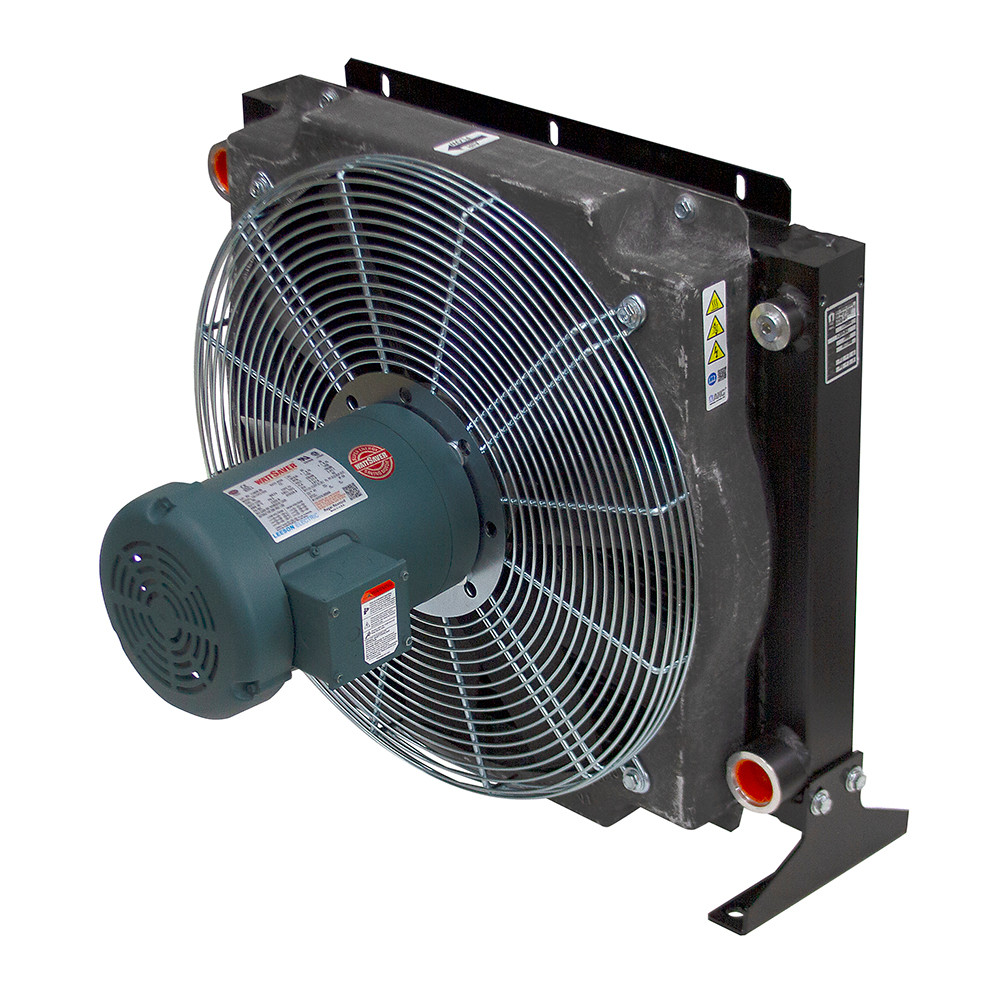

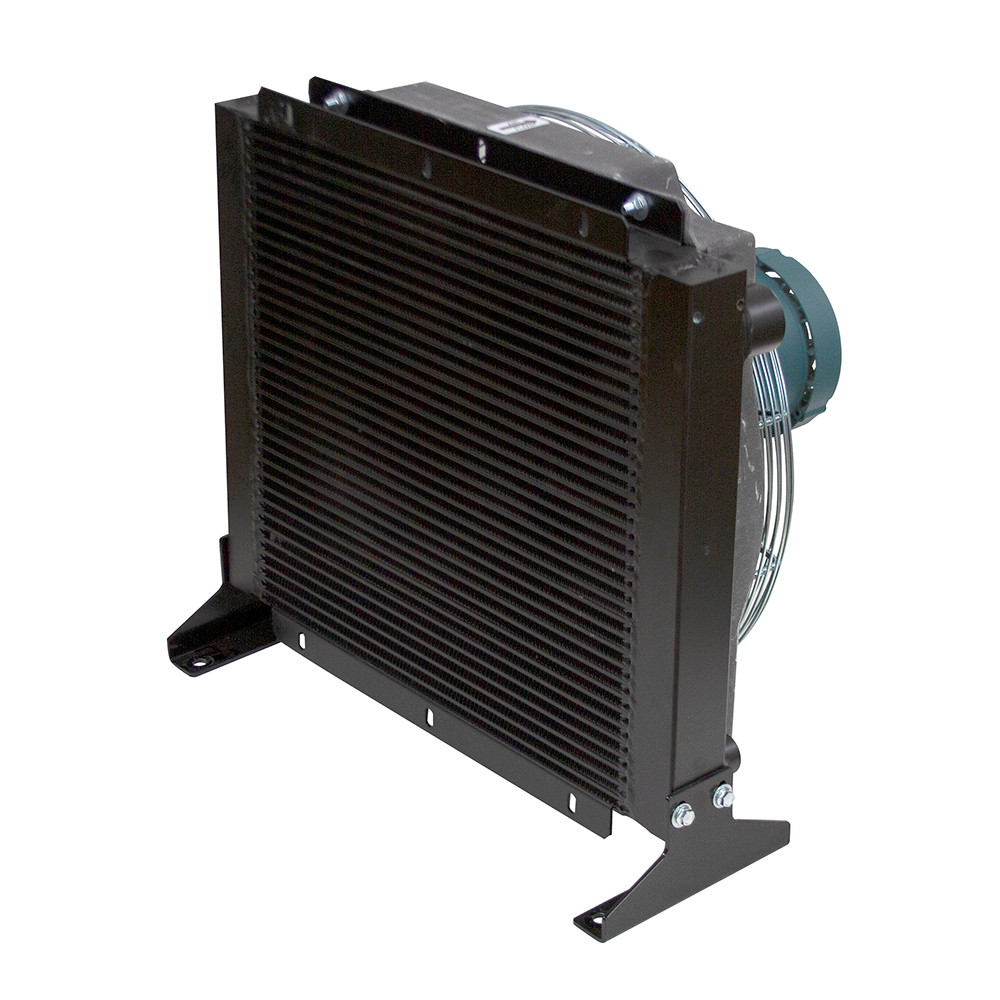

![80 GPM AKG AR30-3 Oil Cooler w/ 230/460 Volt 3Ph Fan [904701]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/1280x1280/products/10087/113449/9-12676-30-3__83979.1762809572.jpg?c=1 "80 GPM AKG AR30-3 Oil Cooler w/ 230/460 Volt 3Ph Fan [904701]")
![80 GPM AKG AR30-3 Oil Cooler w/ 230/460 Volt 3Ph Fan [904701]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/1280x1280/products/10087/113450/9-12676-30-3_1__02159.1762809572.jpg?c=1 "80 GPM AKG AR30-3 Oil Cooler w/ 230/460 Volt 3Ph Fan [904701]")
![80 GPM AKG AR30-3 Oil Cooler w/ 230/460 Volt 3Ph Fan [904701]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/100x100/products/10087/113449/9-12676-30-3__83979.1762809572.jpg?c=1 "80 GPM AKG AR30-3 Oil Cooler w/ 230/460 Volt 3Ph Fan [904701]")
![80 GPM AKG AR30-3 Oil Cooler w/ 230/460 Volt 3Ph Fan [904701]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/100x100/products/10087/113450/9-12676-30-3_1__02159.1762809572.jpg?c=1 "80 GPM AKG AR30-3 Oil Cooler w/ 230/460 Volt 3Ph Fan [904701]")
Product Description
80 GPM AKG AR30-3 Oil Cooler w/ 230/460 Volt 3Ph FanBrand NEW AKG AR series oil cooler that features aluminum construction, 230/460 Volt AC 3 phase fan, leak-free SAE O-Ring connections, zinc plated steel fan guard and powder painted steel mounting brackets.
SPECIFICATIONS
- Manufacturer AKG
- Model Number AR30-3
- Pressure 377 PSI max.
- Temperature 250 F° max.
- Construction Aluminum cooler and steel shroud/mounting brackets
- Flow 80 GPM
- Fan Motor HP 1
- Phase 3
- Fan Motor Voltage 230/460
- Amps 3.8
- Heat Removed Based On 50 F°
Entering Temperature Difference (BTU/HR) 78150 - Airflow Direction Pull
- Port Size SAE 20
- Mount Four 1/2" bolt holes on 7.09" x 23.7" centers
- Overall Depth (in.) 16.75
- Overall Width (in.) 25.59
- Overall Height (in.) 24.03
- Shpg. 147 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Truck true
Prop65 true
Legacy Part Number 9-12676-30-3
PDF Page Catalog298-85.pdf
Badges made-in-usa,regular-stock
Air Flow Type AC Three Phase Fan
Heat Rejection Rate 70000 BTU/Hr & Greater
Max Flow 80 GPM
Voltage 230/460 Volt AC
