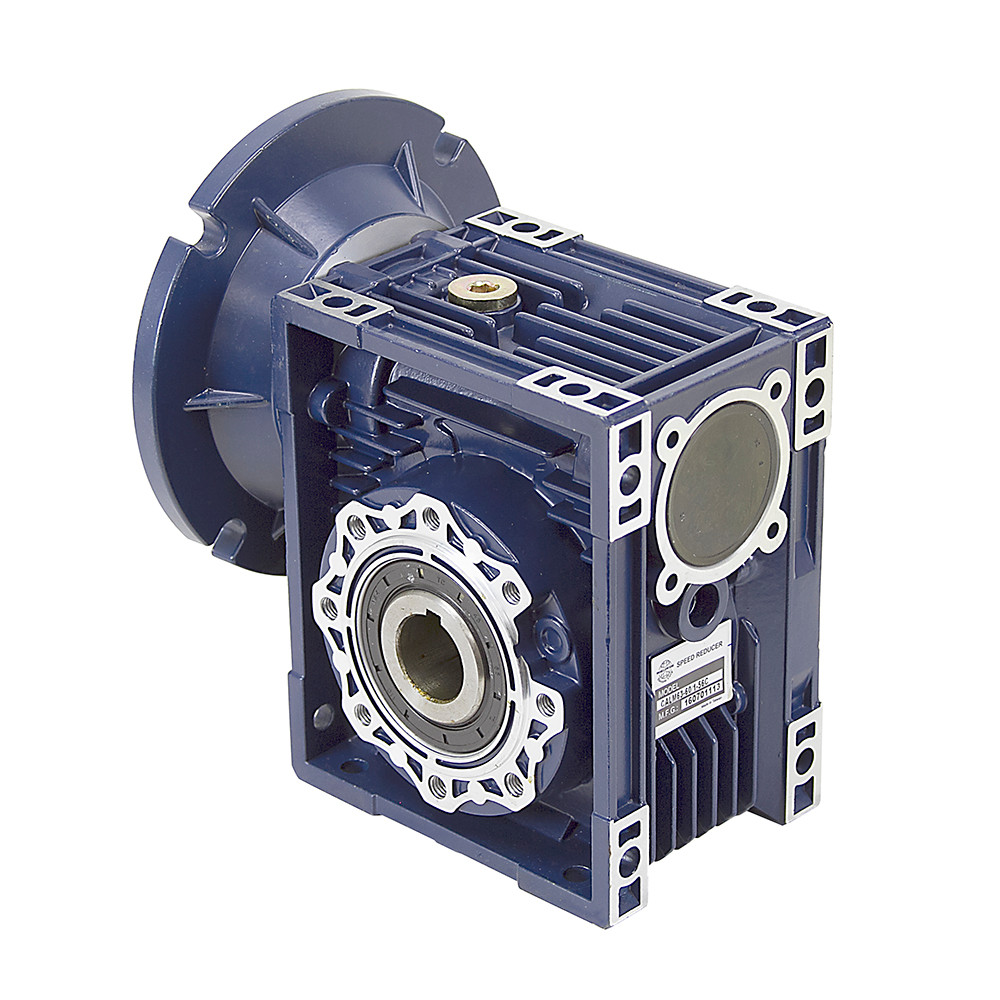

Aluminum Right Angle Worm Gear Reducer, 63 mm C.D., 20/1, 145TC Input Flange, Hollow Bore Output Worldwide CALM63-20/1-145TC [603086]

Product Description

Aluminum Right Angle Worm Gear Reducer, 63 mm C.D., 20/1, 145TC Input Flange, Hollow Bore Output
Brand new, World Wide Electric aluminum worm gear reducer. Aluminum alloy housings. Gearbox flanges are designed to accept NEMA C-Face electric motors. Pre-filled with synthetic oil. Two bearings on the input and output shafts, double lip oil seals, epoxy paint inside and outside for rust prevention, and hollow output bores to accept plug-in output shafts (sold separately).

SPECIFICATIONS

• Brand World Wide Electric
• Model Number CALM63-20/1-145TC
• Box Size 63 mm Center Distance
• Gear Ratio 20:1
• Output RPM @ 1750 RPM Input 88 RPM
• Input Hp (1.0 S.F.) 2.06 Hp Max
• Output Torque 1225 in.-lb. Max
• Over-Hung Load 683 lbs. Max
• Output Shaft Thrust Load 137 lbs. Max
• Efficiency 83 %
• Motor Mount 145TC
• Input Bore 7/8" keyed, 3/16" keyway
• Output Bore 1-1/8" keyed, 1/4" keyway
• Top & Bottom Mount 100mm x 85mm
• Back Mount 130mm x 85mm
• Overall Size 6.87" x 6.5" x 8.5"
• Shpg. 13 lbs.
