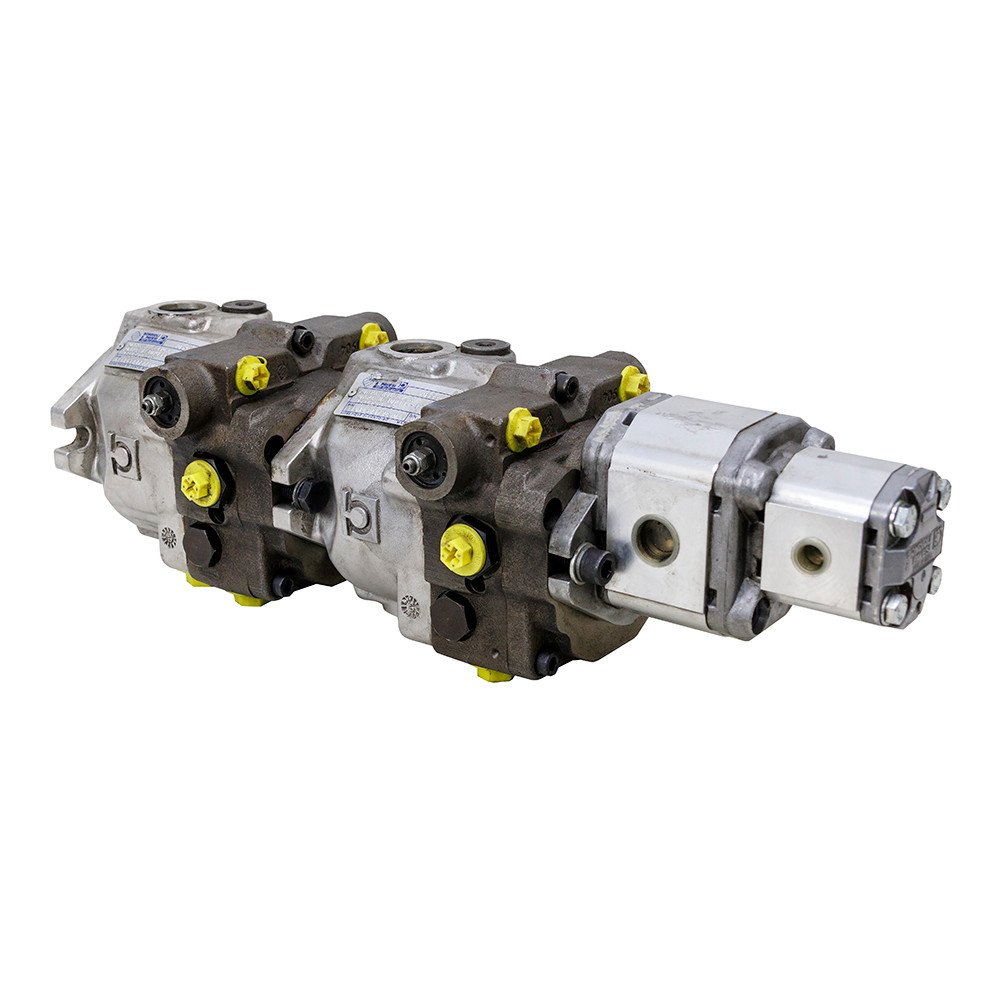

0.85/0.85 cu in Hydraulic Double Piston Pump w/ Boost Pump Bodioli & Paviesi NT10PV14-14H217AL7BU-45/NT10PV14-14H217AL7BU-45/HPLPB208SSVU6U5BEG [903108]

Product Description

• Disp.
    Front 0.85 cu in
    Middle 0.85 cu in
    Boost 0.51/0.30 cu in
• Pump Type Piston/Piston/Gear/Gear
• Rotation CCW
• Pressure:
     Front 2538 PSI
     Middle 2538 PSI
     Boost 3336 PSI
• Max Speed:
     Front 4000 RPM
     Middle 4000 RPM
     Boost 3500 RPM
• Min Speed:
     Front 500 RPM
     Middle 500 RPM
     Boost 700 RPM
• Flow:
     Front 14.72 GPM @ 4000 rpm
     Middle 14.72 GPM @ 4000 rpm
     Boost 7.73/4.55 GPM @ 3500 rpm
• Relief Valve 2465 PSI
• Mount 2 bolt SAE A
• Shaft 3/4" dia. 11T spline
• Inlet Ports SAE 10
• Outlet Ports SAE 10
• Drain Ports SAE 10/ SAE 6
• Control Ports SAE 4
• Boost Pump Inlet Port SAE 12
• Boost Pump Outlet Ports SAE 10/ SAE 6
• Size 21" x 6-3/4" x 5-3/4"
• Shpg. 62 lbs.
