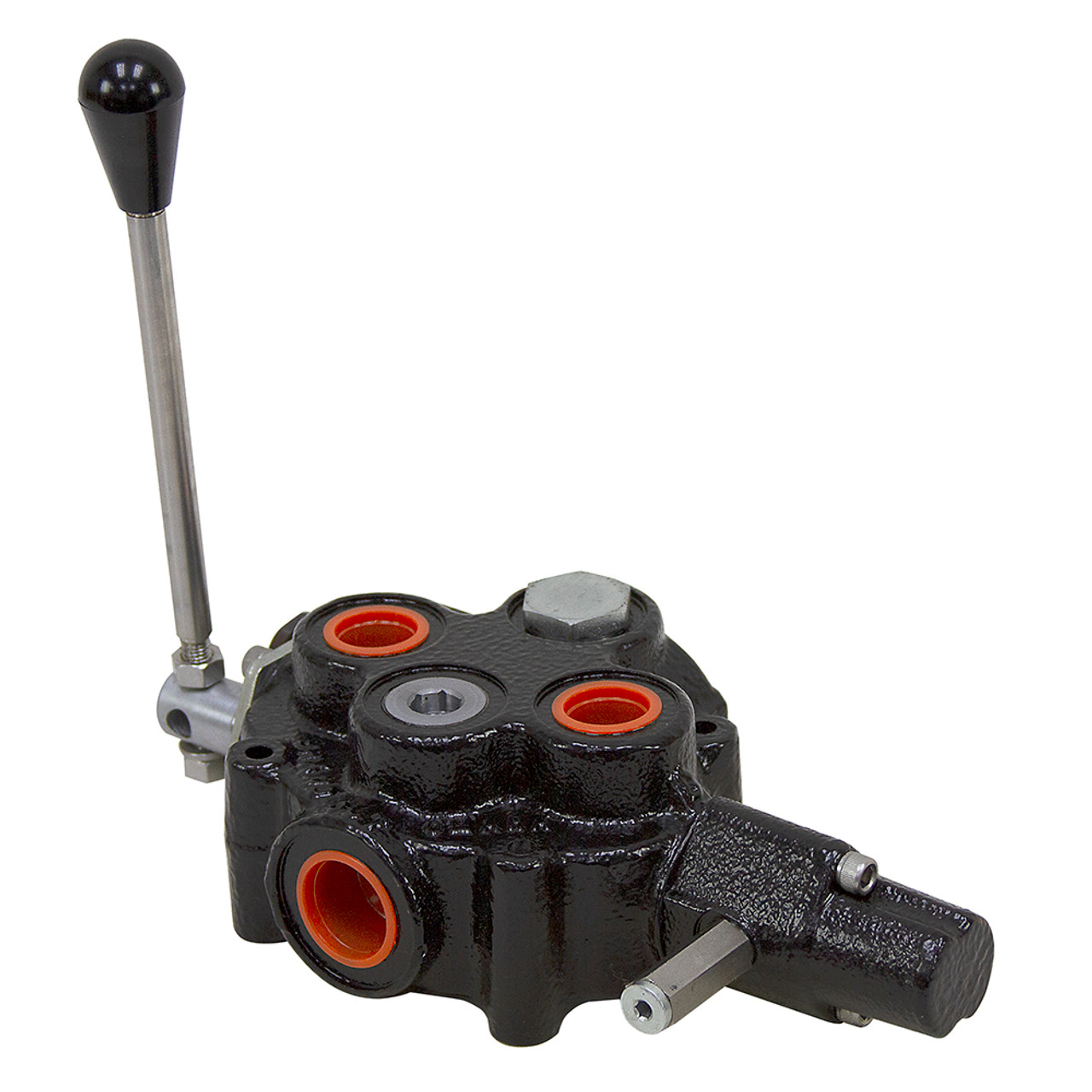

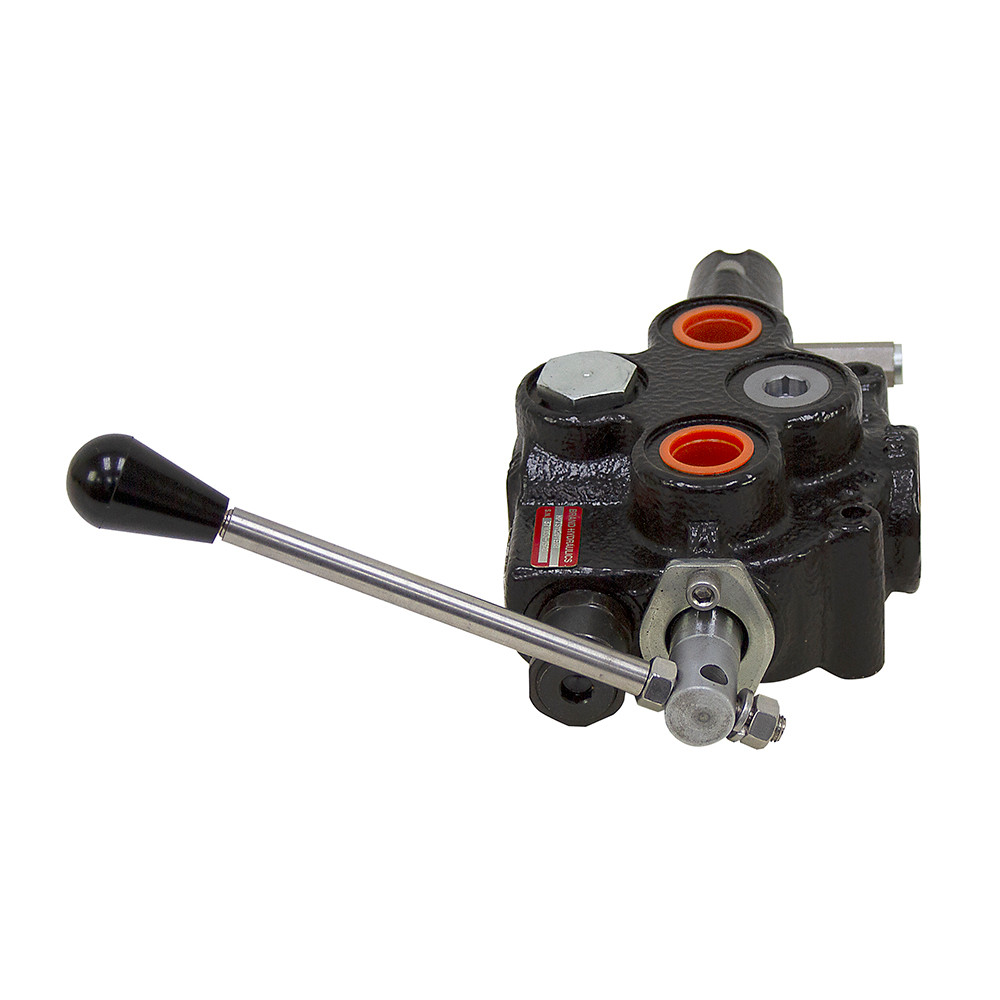

1 Spool 18 GPM Brand Hydraulics Rotary Spool Marine Control Valve MPTS1120TEHB [905359]

Product Description

MARINE PAINTED ROTARY CONTROL VALVE
Brand new, BRAND HYDRAULICS model MPTS1120TEHB directional control valve with rotary spool. Special epoxy coating to inhibit rust. Stainless steel spool. Turning spool 90 degrees CW goes to full spool in and 90 degrees CCW to full spool out. Rotary friction detent holds handle in any position. Use for controlling hydraulic motors. Open center that can be converted to power beyond by changing the location of the conversion plug installed in the power core of the valve. Additional SAE 10 plug not included will be required to plug top port for closed center use.

SPECIFICATIONS

• Manufacturer BRAND
• Model Number MPTS1120TEHB
• Open Center
• Spools One
• Flow 18 GPM max.
• Pressure 3000 PSI max.
• Relief Valve Adj to 1500-3000, preset @ 2000 PSI
• In/Out Ports SAE 12 (top or side ports)
• Work Ports SAE 10
• Mount 3 holes thru body
• Size 9-3/8" x 4-1/2" x 2-3/4"
• Shpg. 10 lbs.

Spool Details:
  Spool 1 Double Acting, Rotary Motion, Stainless Steel, Tandem Center Work Ports Blocked In Neutral
