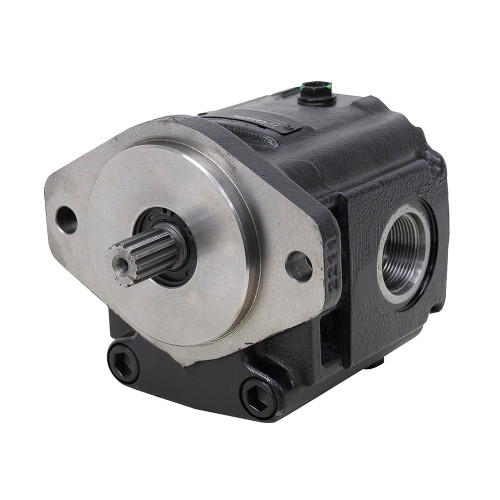

2.82 cu in Casappa KM30.46LO-A8K9-LOF/OG-N-C4-03-VU13 Hydraulic Gear Motor [905481]

Product Description

• Brand Casappa
• Model KM30.46LO-A8K9-LOF/OG-N-C4-03-VU13
• Family KAPPA
• Displacement 2.82 cu. in. / rev.
• Motor Type Gear
• Rotation CW
• Pressure:
     3050 PSI cont.
     3625 PSI int.
• Torque:
     1369 in-lbs. cont.
     1627 in-lbs. int.
• Speed:
     350 RPM min.
     3000 RPM max.
• Flow:
     4.27 GPM @ 350 RPM
     36.62 GPM @ 3000 RPM
• Mount 2 bolt SAE B
• Shaft 7/8" 13 tooth spline x 1-1/4"
• Ports SAE 16 and 20
• Case Drain SAE 4
• Size 7" x 5-3/4" x 7-1/2"
• Shpg. 41 lbs.
