Pneumatic Dust Collector with Cart Chicago Pneumatic CDP 10 [100428]

Product Description

PNEUMATIC DUST COLLECTOR

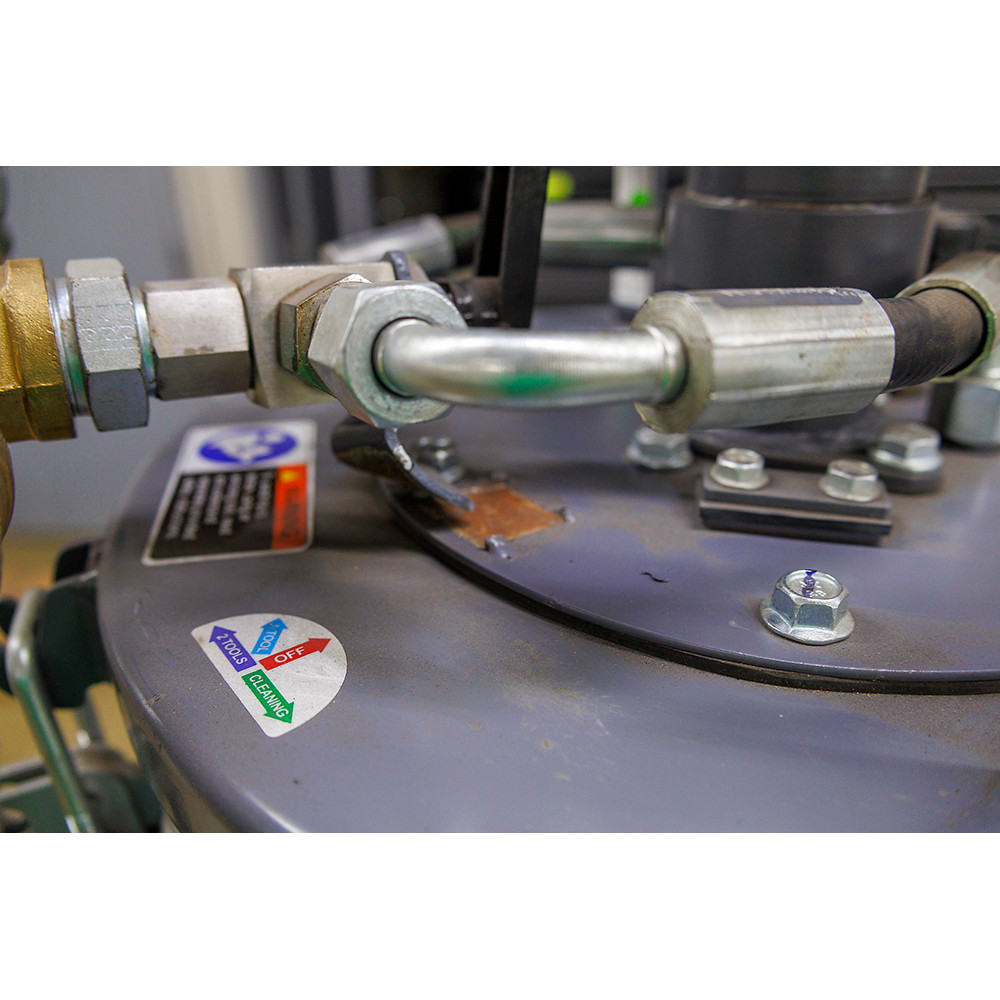

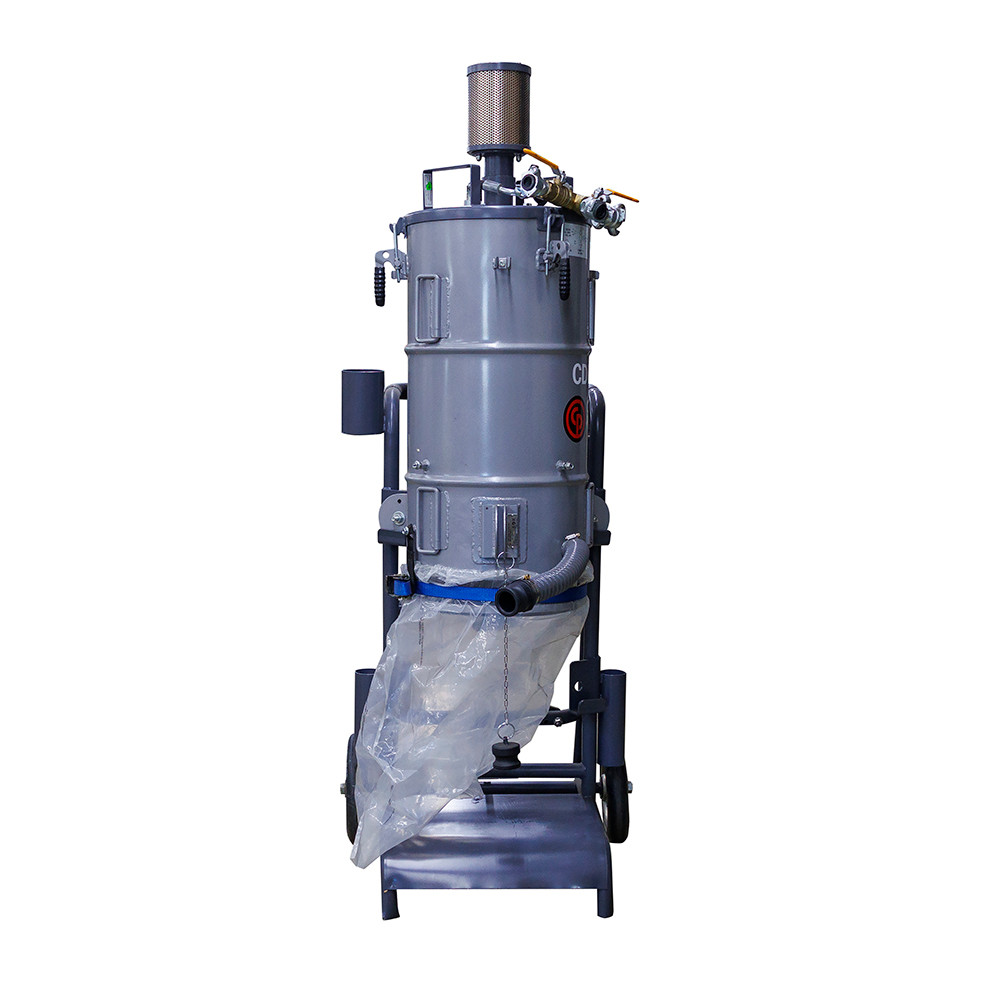

Chicago Pneumatic CDP 10 dust collector with cart. Heavy steel construction. Unit does not require power, only a reliable source of compressed air. For indoor and outdoor use. Intended for use with one hand-held Rock drill or Breaker with proper attachments. The ejector tube is located in a well protected position inside the filter and the Housing-unit. The rock cuttings and dust particles that are sucked into the dust collector are collected into a sack. The sack is secured around the cyclone part of the filter unit by the sack holder. (Weld on bracket for attachments is broken, handle bar is scratched and tubing for foot is crushed. Sold as is.)

SPECIFICATIONS

• Brand Chicago Pneumatic
• Model Number CDP 10
• Air Consumption at 87 psi (6 bar) 23.3-25.4 cfm (11-12 l/s)
• Suction Hose 1" (38mm)
• Filter Surface Area 21-1/2 sq. ft. (2 m²)
• Collection Sack, Flat Dimensions 22" x 27.5" (560mm x 700mm)
• Diamter of Housing Unit 14-3/8" (365mm)
• Height of Housing Unit 30" (760mm)
• Height above ground 51-1/2" (1310mm)
• Shpg 220 lbs.
