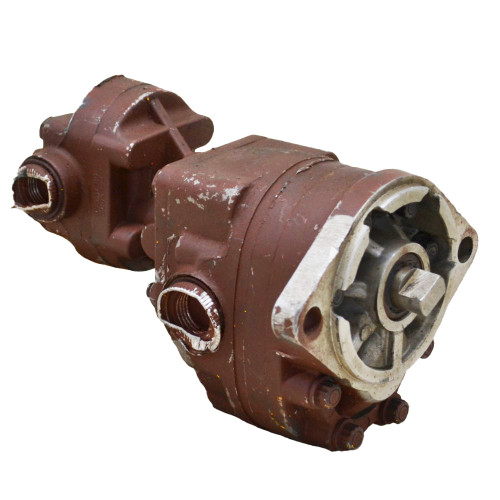

0.09 cu in Cessna 24100 RAX Hydraulic Gear Pump [904082]

Product Description

• Manufacturer Cessna
• Model 24100 RAX
• Series 24100
• Disp. 0.09 cu. in. / rev.
• Pump Type Gear
• Rotation CW
• Pressure:
     500 PSI min.
     2000 PSI max.
• Speed:
     500 RPM min.
     4000 RPM max.
• Flow:
     0.13 GPM @ 500 RPM
     1.5 GPM @ 4000 RPM
• Mount Two bolt SAE AA
• Shaft 7/16" dia. x 1-1/4" long w/ 1/8" keyway
• Inlet Port 3/8" NPT
• Outlet Port SAE 6
• Size 3-3/4" x 4" x 3-1/2"
• Shpg. 3 lbs.
