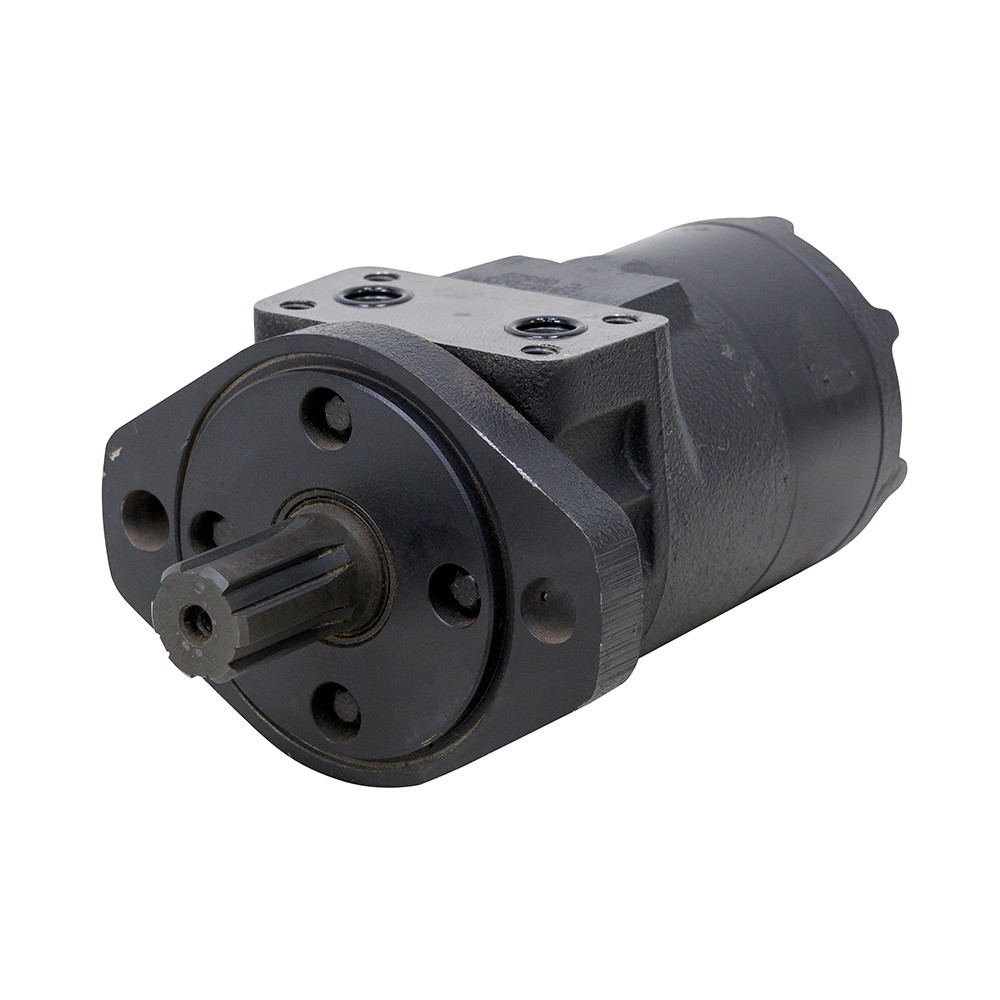

11.9 cu in Charlynn 158-1093-001 Hydraulic Motor [906690]

Product Description

11.9 cu in CHAR-LYNN 158-1093-001 HYDRAULIC MOTOR
New, Char-Lynn 158-1093-001 T series geroler hydrauic motor. Lower drive running angle for improved life and improved low speed performance. Applications include agricultural augers, harvesters, seeders, car wash brushes, food processing, railroad maintenance equipment, machine tools, conveyors, industrial sweepers and floor polishers, saw mills, turf equipment, concrete and asphalt equipment and skid steer attachments.

SPECIFICATIONS

• Brand Char-Lynn
• Model 158-1093-001
• Family T series
• Displacement 11.9 cu. in. / rev.
• Motor Type Geroler
• Rotation Reversible
• Pressure:
     2000 PSI cont.
     2565 PSI int.
• Torque:
     3178 in-lbs. cont.
     3936 in-lbs. int.
• Speed:
     306 RPM cont.
     388 RPM int.
• Flow:
     16 GPM cont.
     20 GPM int.
• Mount 2 Bolt SAE A
• Shaft 1" dia. x 1-7/8" long 6 tooth spline
• Ports Manifold w/ two 0.48" dia. o-ring port holes w/ four 5/16"-18 threaded holes on 1-1/8" x 2-1/2" centers
• Case Drain None
• Size 8" x 5-1/2" x 3-3/4"
• Shpg. 18 lbs.
