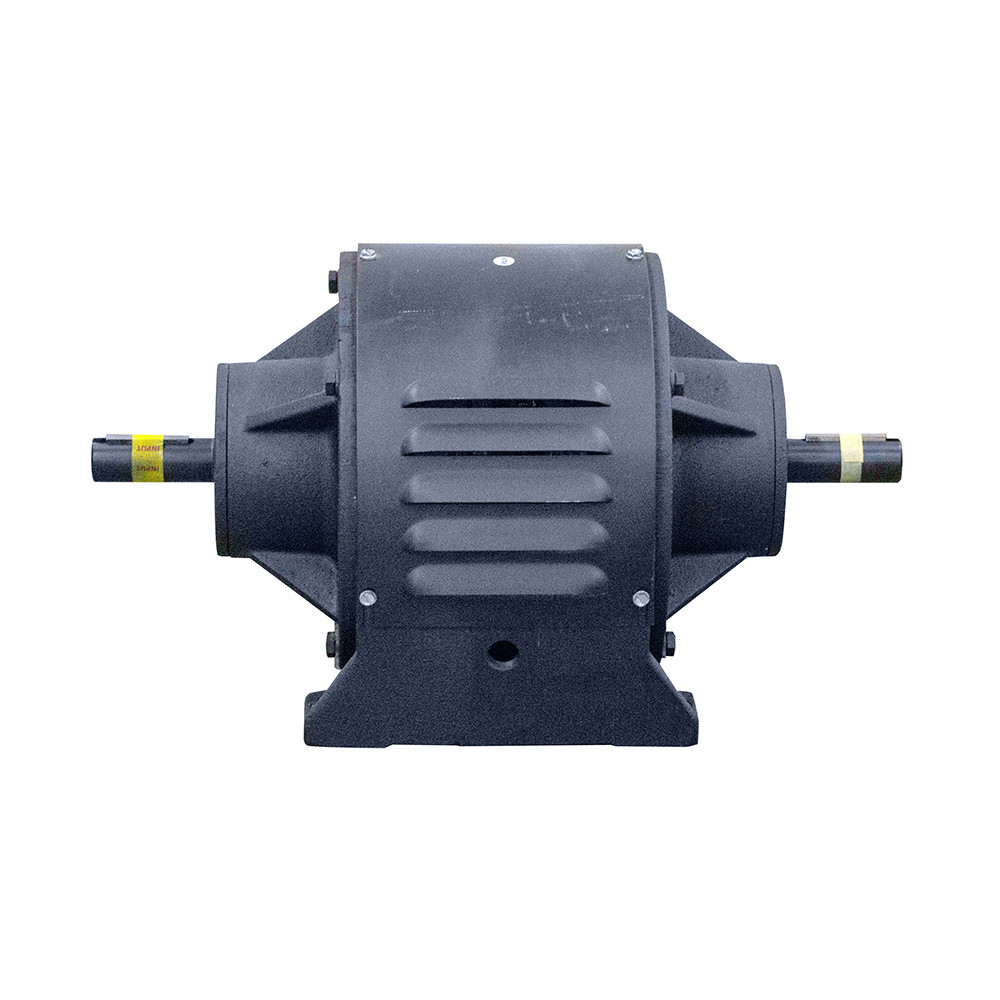

90 Volt DC Clutch Brake Warner Electric EP-825 5231-273-002 [601717]

Product Description

CLUTCH BRAKE
New, Warner Electric EP-825 5231-273-002 electro pack. Rugged, pre-assembled clutch and brake combinations in an enclosed, foot mounted housing. Factory aligned, pre-assembled and have been designed to mate easily with industry standard motors and reducers with v-belts, pulleys, chain and sprockets, in line couplings and timing belt drives.

SPECIFICATIONS

• Brand Warner Electric
• Model EP-825
• Series EP
• Part Number 5231-273-002
• Max RPM 3600
• Voltage 90 Volt DC
• Horsepower @ 1800 RPM 7-1/2
• Static Torque Brake (ft-lb) 125 (ft-lb)
• Static Torque Clutch 125 (ft-lb)
• Input/Output Shaft Size 1.125" w/ 0.25" sq. Key
• Mount Four 0.406" dia. holes on 8.5" x 8.5" centers
• Size 20-1/32" x 11-39/64" x 10-13/16"
• Shpg 176 lbs.
