Product Description

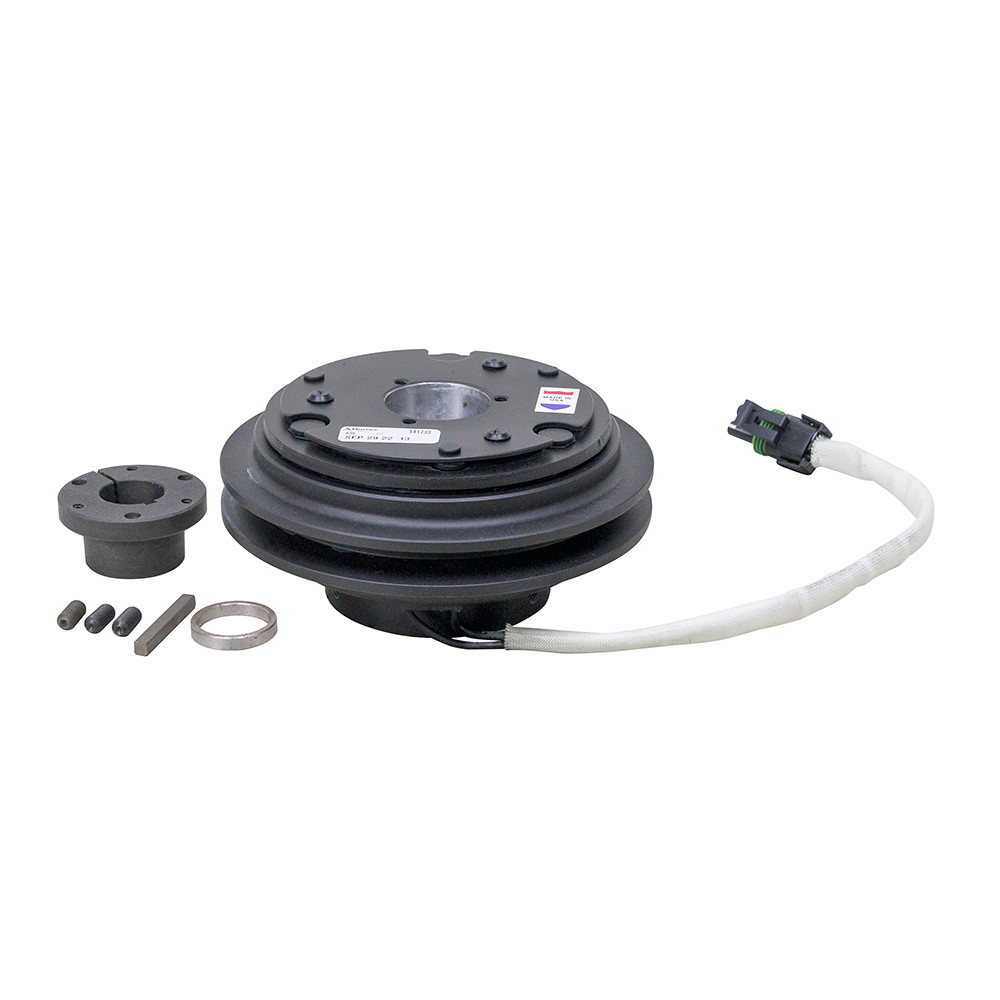

12 VOLT DC CLUTCH ASSEMBLYNew, Pentair Hypro 2526-0011 12 Volt DC clutch assembly for centrifugal pumps. Includes 7/8" JAX series QD bushing hub. Fits Hypro pump models 9203P, 9253P-C, 9500P-S, 9205C and 9205C-SP(Not avaible from Surplus Center).
SPECIFICATIONS
- Brand Pentair Hypro
- Model Number 2526-0011
- Voltage 12 Volt DC
- Amps 4.85 Amps
- Rotation CW
- Pulley Outside Diameter 5.64"
- Datum Diameter 5.25"
- Bore 7/8" w/ 3/16" keyway
- Belt Type A type
- Max. HP 30
- Max. RPM 5000
- Rated Torque 90 lbs-ft
- Size 5-3/4" x 5-3/4" x 2-3/4"
- Shpg 10 lbs.
