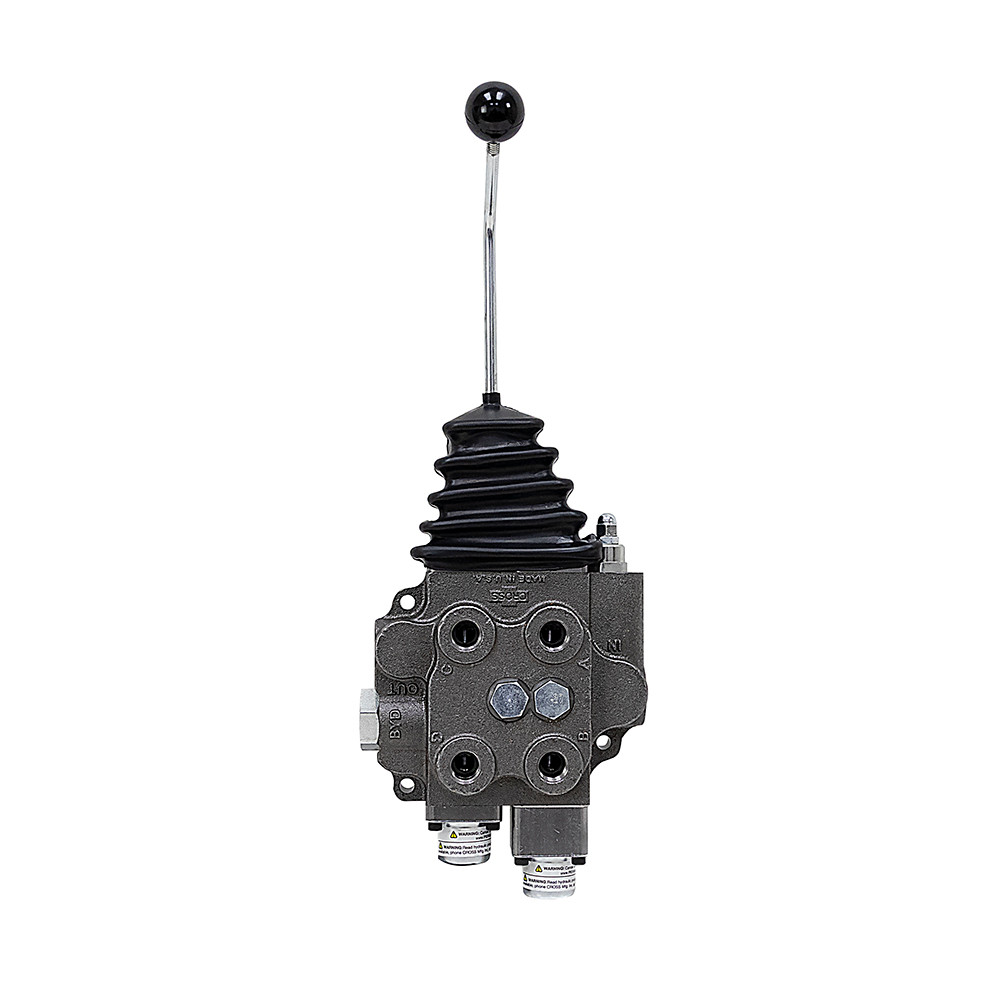

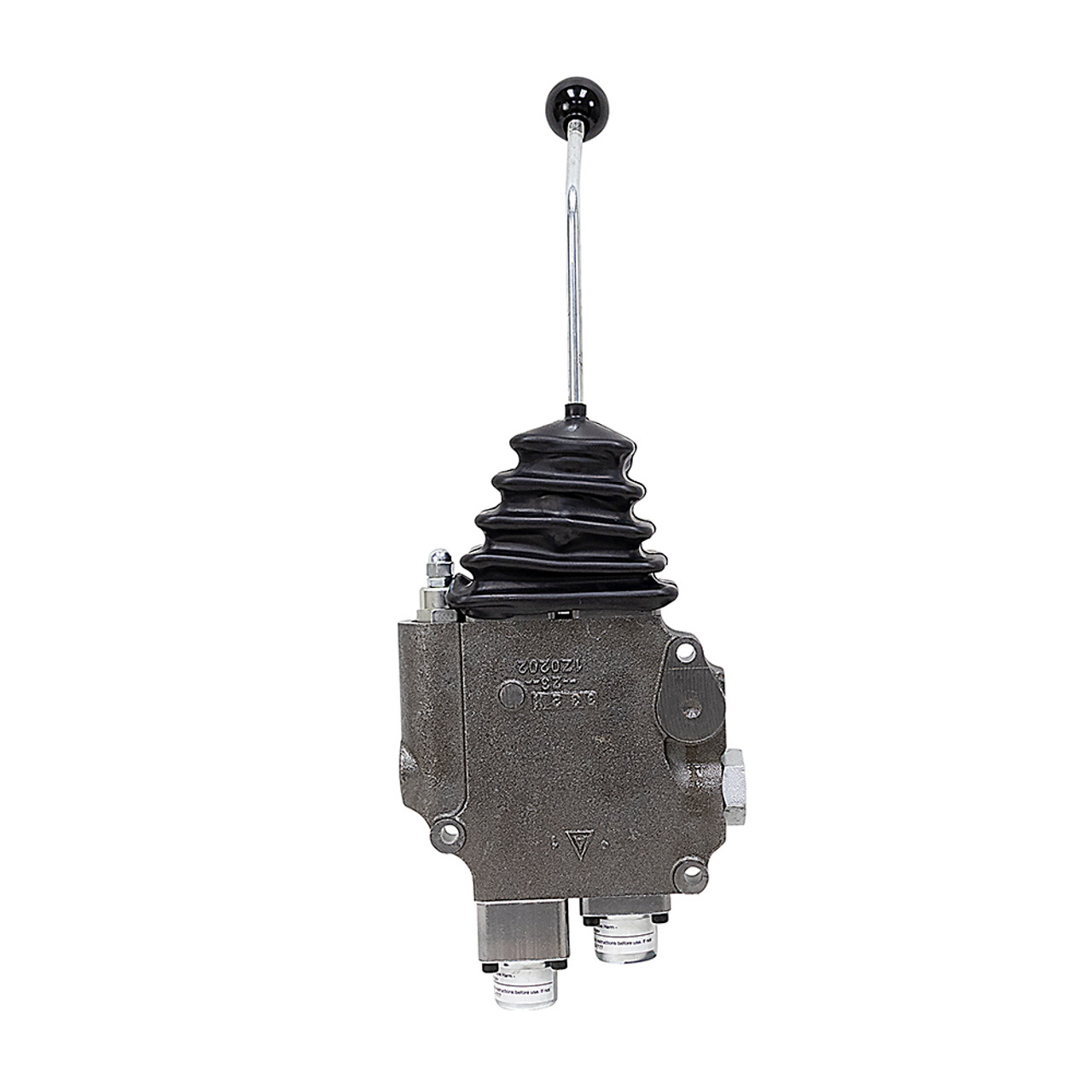

2 Spool 30 GPM Double Acting Joystick Directional Valve W/ First Spool Float Cross Mfg 143430 BA2A1XAG3EA3 SBAF2J [906147]

Product Description

2 SPOOL DOUBLE ACTING JOYSTICK DIRECTIONAL CONTROL VALVE
Brand new CROSS BA2A1XAG3EA3 series joystick directional control valve with first spool float for operating double acting cylinders. The two spools controlled by joystick lever can be operated independently or simultaneously depending on handle movement. Features include built-in adjustable pressure relief valve, open center, side inlet/outlet and top work ports. Intergral load holding check valves. Can be converted to power beyond.

SPECIFICATIONS

• Brand Cross Mfg.
• Model# SBAF2J
• Cross Item# 143430
• Open Center
• Spools Two
• Flow 30 GPM max.
• Pressure 2500 PSI max.
• Relief Valve Adjustable 1500-3000 psi (set at 2000 psi)
• In/Out Ports 3/4" NPT
• Work Ports 1/2" NPT
• Mount Three, 3/8" dia. holes
• Size 13.25" x 7.3" x 7.13"
• Shpg. 24 lbs.

Spool Details:
  Spool 1 Double-acting cylinder spool, spring to center w/ 4th position float detent
  Spool 2 Double-acting cylinder spool, spring to center
