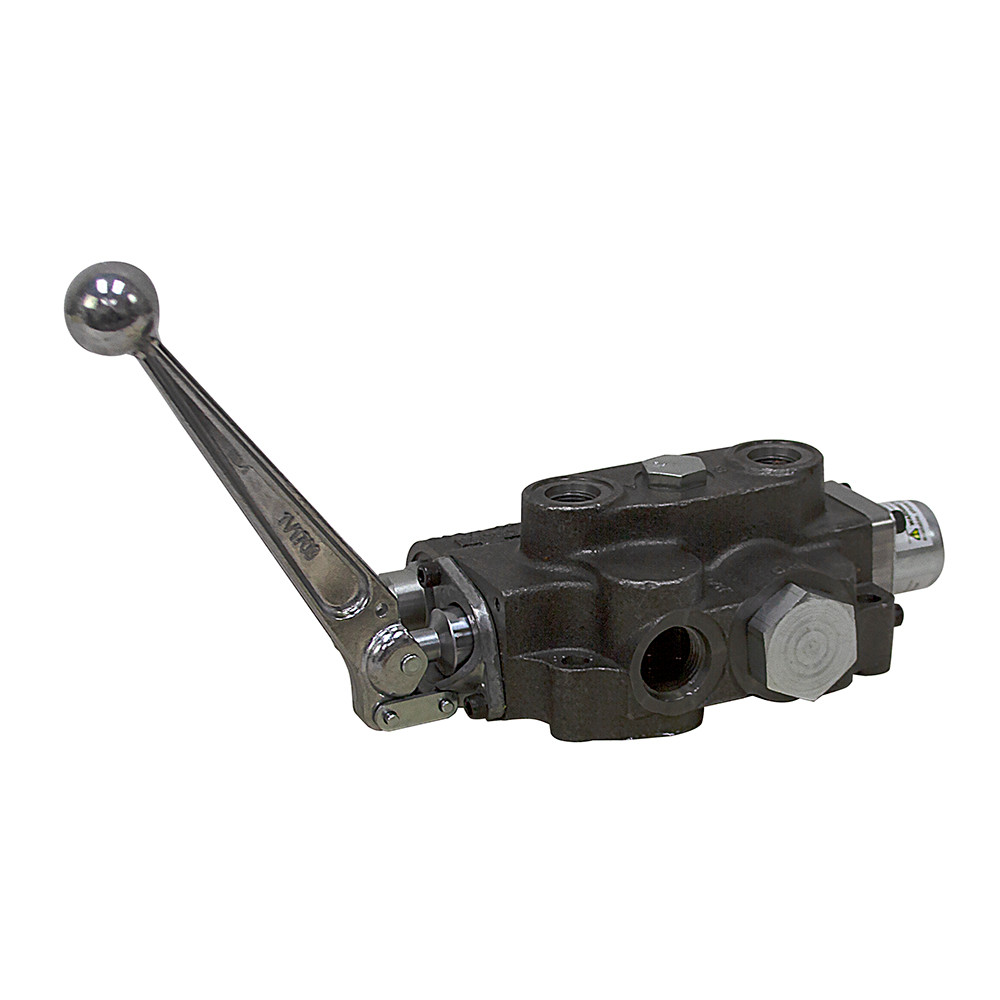

1 Spool 30 GPM Double Acting Directional Valve Cross Mfg 131150 BA11AG3C0 SBA2-ORB [906139]

Product Description

1 SPOOL DOUBLE ACTING DIRECTIONAL CONTROL VALVE
Brand new CROSS BA11AG3EC0 series directional control valve for operating double acting cylinders. Features include built-in adjustable pressure relief valve, open center, side inlet/outlet and top work ports. Intergral load holding check valves. Can be converted to power beyond.

SPECIFICATIONS

• Brand Cross Mfg.
• Model# SBA2-ORB
• Cross Item# 131150
• Open Center
• Spools One
• Flow 30 GPM max.
• Pressure 3000 PSI max.
• Relief Valve Adjustable 1500-3000 psi (set at 2000 psi)
• In/Out Ports SAE 12
• Work Ports SAE 8
• Mount Three, 3/8" dia. holes
• Size 13.25" x 7.3" x 4.88"
• Shpg. 16 lbs.

Spool Details:
  Spool 1 Double-acting cylinder spool, spring to center
