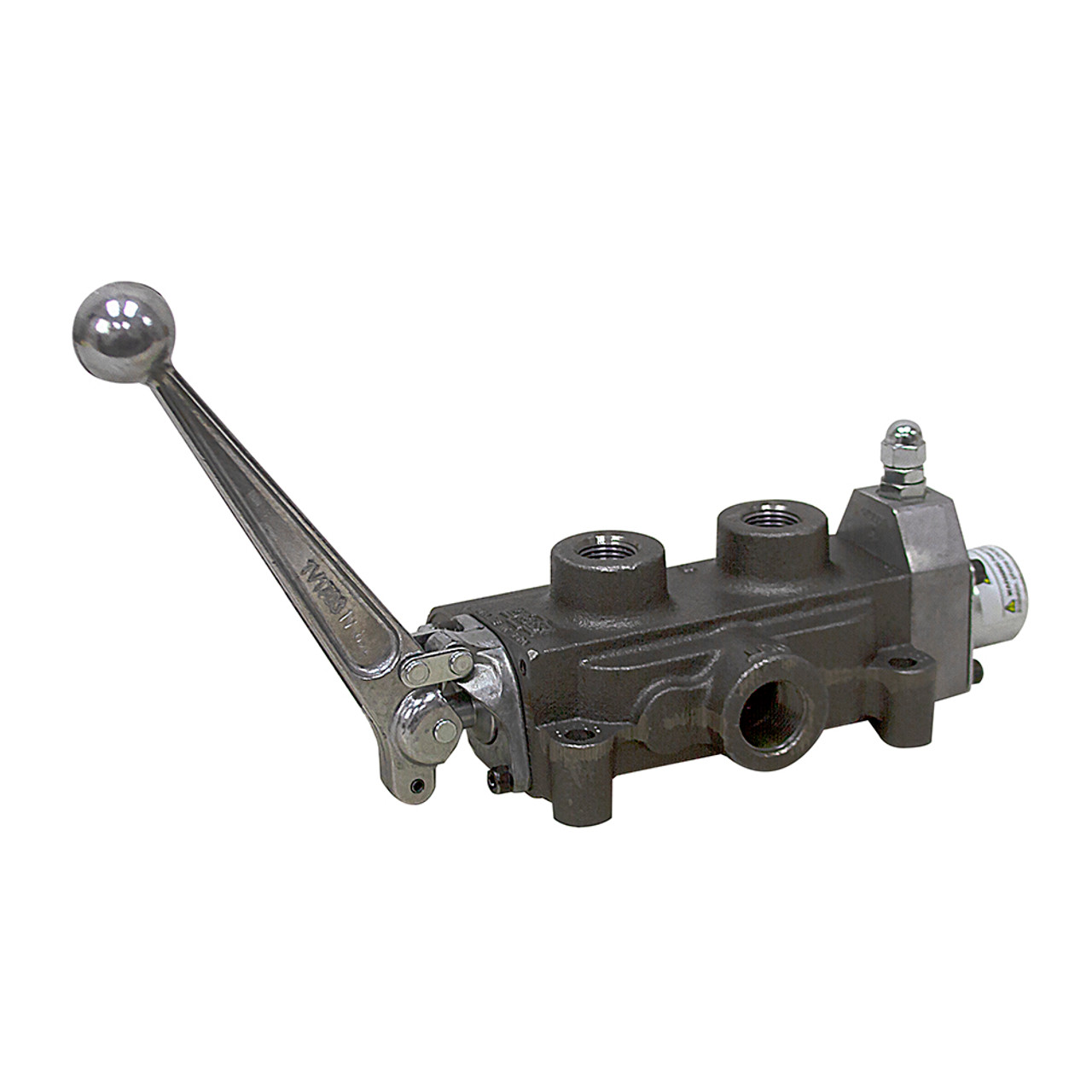

1 Spool 30 GPM Log Splitter Valve Cross Mfg 108360 CD11FCA0 SCD2E [906130]

Product Description

1 SPOOL DOUBLE ACTING DIRECTIONAL CONTROL LOG SPLITTER VALVE
Brand new CROSS CD11FCA0 series directional control valve for operating double acting cylinders. Features include monoblock construction, built-in pressure relief valve, open center, side inlet/outlet and top work ports. Handle assembly can be mounted to have the handle be push or pull to extend the cylinder.

SPECIFICATIONS

• Brand Cross Mfg.
• Model# SCD2E
• Cross Item# 108360
• Open Center
• Spools One
• Flow 30 GPM max.
• Pressure 2500 PSI rated
• Relief Valve 2000 PSI, fixed
• Detent Release Pressure 1000 PSI
• In/Out Ports 3/4" NPT
• Work Ports 1/2" NPT
• Mount Three, 3/8" dia. holes
• Size 12.62" x 7.41" x 4.62"
• Shpg. 12 lbs.

Spool Details:
  Spool 1 Double-acting cylinder spool, spring to center on spool in/auto detent on spool out
