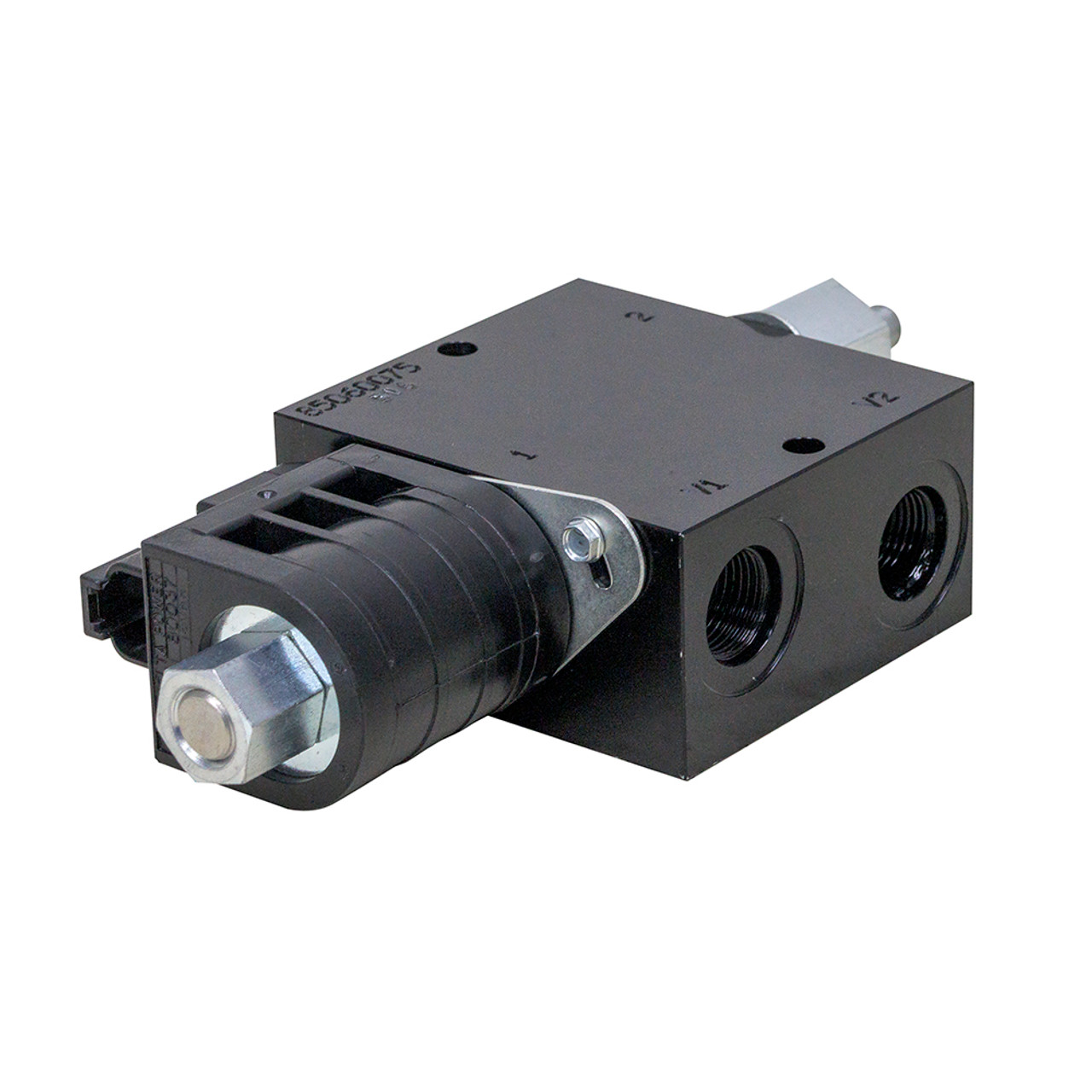

12 Volt DC 15 GPM Solenoid Valve Delta Power DE-S2D [905482]

Product Description

12 VOLT DC SOLENOID POPPET UNLOADING VALVE
New Delta Power DE-S2D-00-DT-12-S solenoid operated, 2 way normally open, pilot operated poppet valve with free reverse flow energized and de-energized with DE-RWA direct acting relief valve. When de-energized the DE-S2D allows flow to pass from (1) to (2) and (2) to (1). When energized the valve blocks flow from (1) to (2) but allows free reverse flow from (2) to (1). The DE-RWA blocks flow from (2) to (1) until sufficient pressure is present at (2) to force the poppet to open and allow metered flow from (2) to (1). The cartridge offers smooth transition in response to load changes in common hydraulic circuits.

SPECIFICATIONS

• Brand Parker
• Cartridge Number DE-S2D
• Coil Number 80037
• Body Number 85060075
• Relief Valve Number DE-RWA
• Open Center
• Flow 15 GPM
• Pressure 3500 psi
• Voltage 12 Volt DC
• Connector Deutsch - Integral DT04-2P
• In/Out Ports SAE 8
• Mount Two 0.28" thru-holes on 3" centers
• Size 8-3/4" x 3-1/2" x 1-3/4"
• Shpg 4 lbs.
