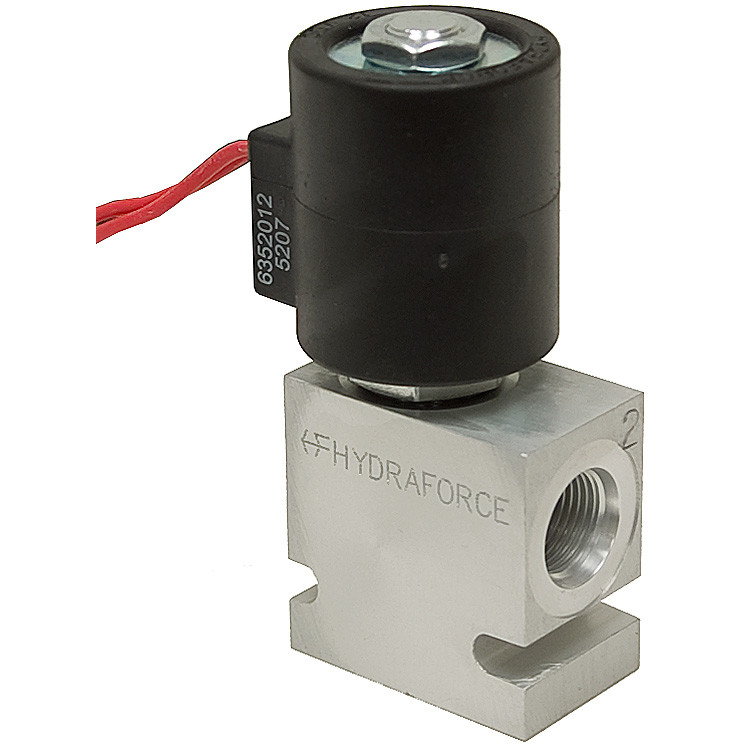

Hydraforce 12 Volt DC NC Solenoid Valve SV10-22-0-N-00 [907057]

Product Description

12 VDC N.C. SOLENOID POPPET VALVE
Brand new, HYDRAFORCE model SV10-22-0-N-00 solenoid-operated, 2-way, poppet type valve. Use for starting, stopping, or dumping of hydraulic circuits to 3000 PSI. Continuous rated solenoid with hardened seat for long life and low leakage.

When de-energized, the valve acts as a check valve, allowing flow to pass from port 1 to port 2, while blocking flow from port 2 to port 1. When energized, the poppet lifts to open the port 2 to port 1 flow path. In this mode, flow is also allowed from port 1 to port 2.

SPECIFICATIONS

• Voltage 12 VDC
• Amperage 1.67 Amps
• Flow 12-15 GPM max.
• Pressure 3,000 PSI PSI max.
• Coil Duty Rating Continuous from 85% to 115% of nominal voltage
• Ports SAE 8
• Shpg. 2 lbs.

Valve consists of HydraForce part numbers:
Coil 6352012
Body 7024280
Cartridge SV10-22-0-N-00
