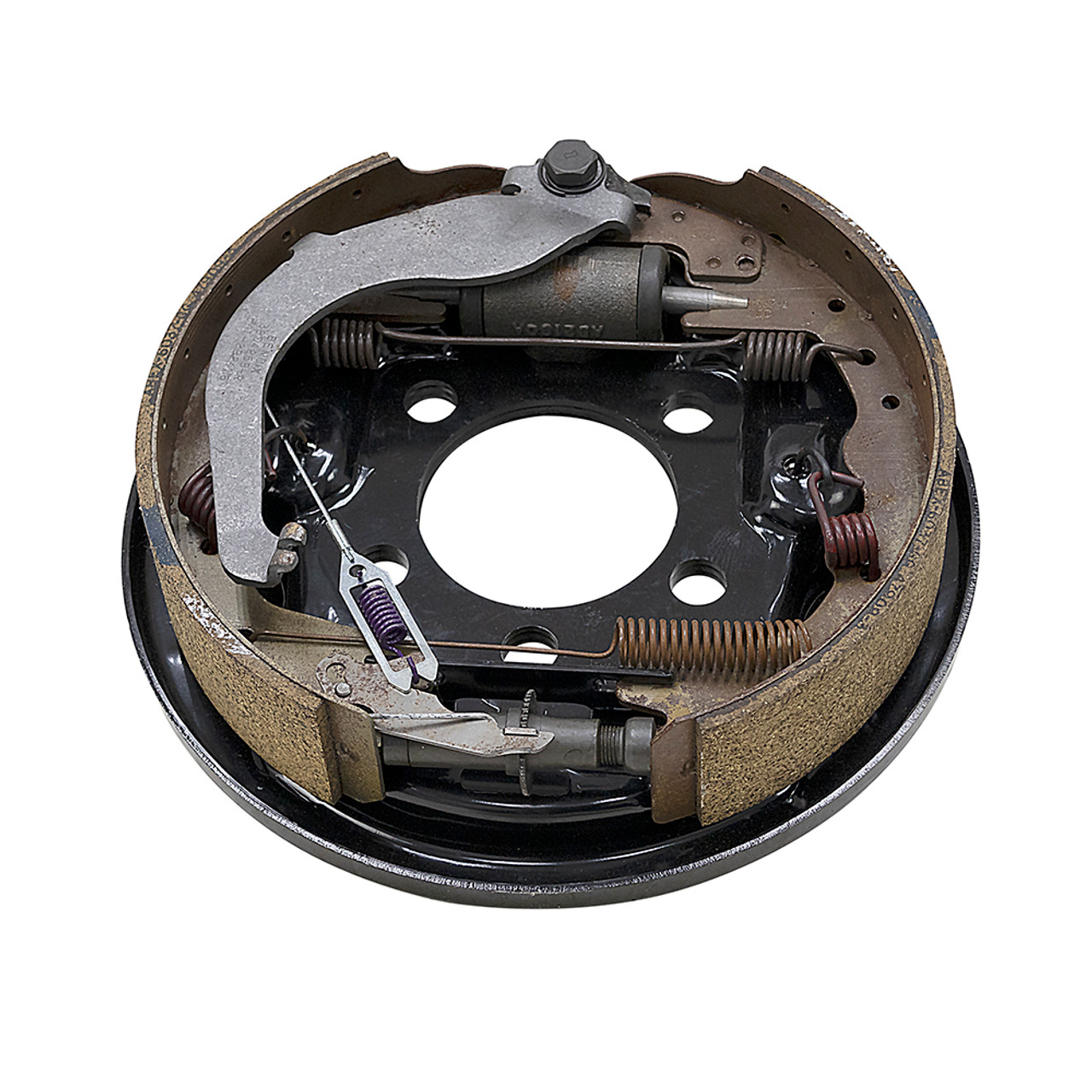

Hydraulic Brake Assemblies w/ 8 Bolt Hub [300105]

Product Description

HYDRAULIC BRAKE ASSEMBLIES
New, Dexter free backing hydraulic trailer brakes with 8" hole on hubs with Bendix brake components. Each brake is 12" x 2-1/2" giving 65 sq. in. of lining for safe stopping of large loads. Mechanical parking brake. Sold in sets with one right and one left assembly. Bearings and bolts included.


SPECIFICATIONS

• Drum I.D. 12"
• Drum Pilot dia. 6"
• Backing Plate Mount Five 3/4" dia. Holes on 5-1/2" B.C. w/ 4" I.D. pilot
• Hub Mount 8 lugs on 8" B.C.
• Hub Bolts 5/8"-18 TPI x 1-1/4" long
• Inside Bore 3-1/4" dia.
• Inner Bearing JLM506849 2.165"(55mm)
• Outer Bearing LM501349 1.625"(41.275mm)
• Rating 6000 lbs.
• Size 13" dia. x 10-1/2" tall
• Shpg. 190 lbs.
