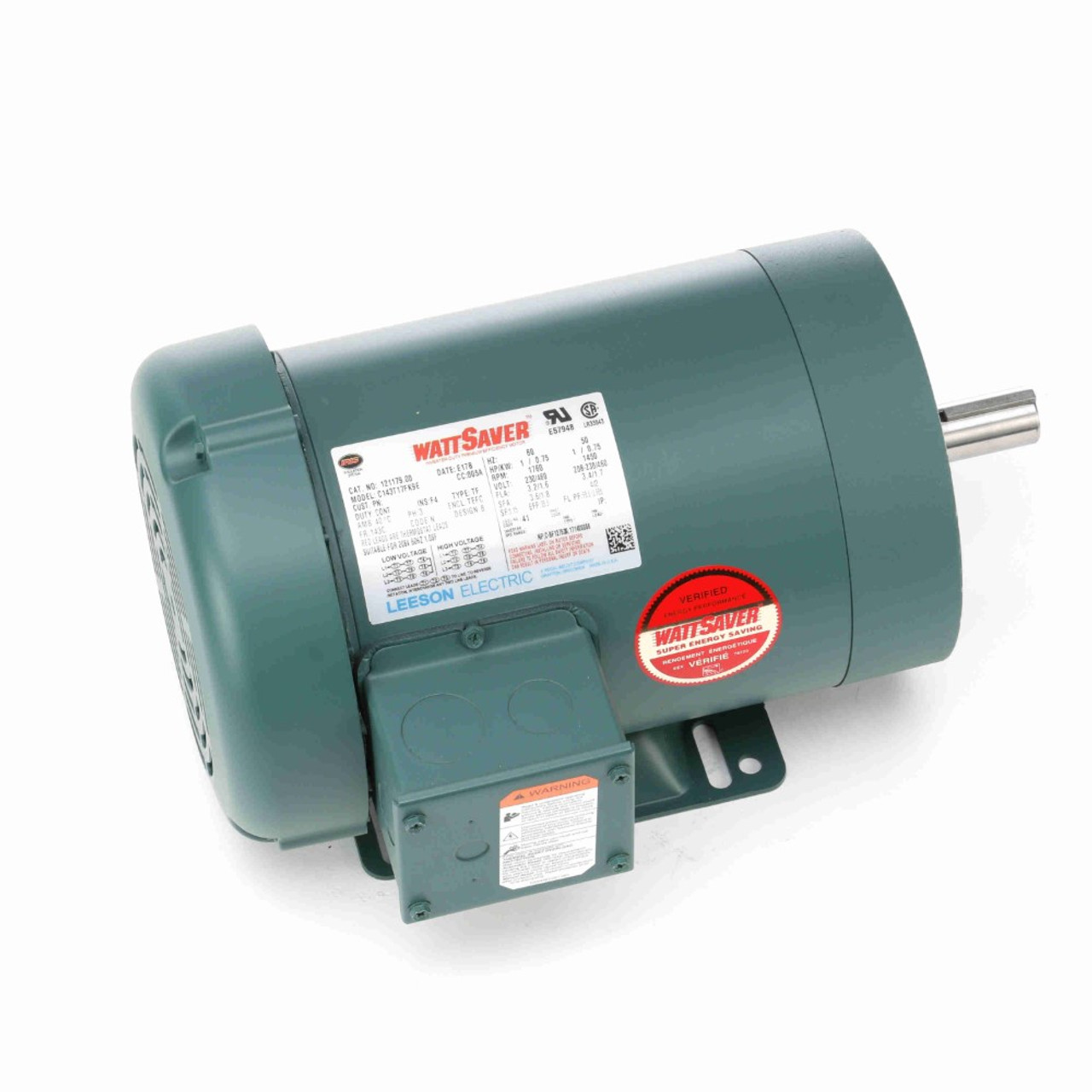

1 HP 1760 RPM 230/460 Volt AC 3Ph 143TC Leeson Electric Motor 121179.00 [501459]

Product Description

• Power 1 HP
• Voltage 230/460 Volt AC
• Phase 3
• Frequency 60 Hz
• Amperage 3.2/1.6 Amps
• Speed 1760 RPM
• Rotation Reversible
• Service Factor 1.15
• Bearings Ball
• Thermal Overload Protection None
• Enclosure TEFC
• Duty Continuous
• Frame 143TC
• Base Mount Six 0.88" x 0.34" elliptical slots on 5.50" x 3" and 5" centers
• Face Mount Four 3/8"-16 threaded holes in motor face on 5-7/8" B.C., 4-1/2" pilot
• Shaft 7/8" dia. x 2.13" overall length w/ 3/16" wide x 1-3/8" long keyway
• Size 10.16" x 8.64" x 7.32"
• Shpg. 35 lbs.
