Product Description

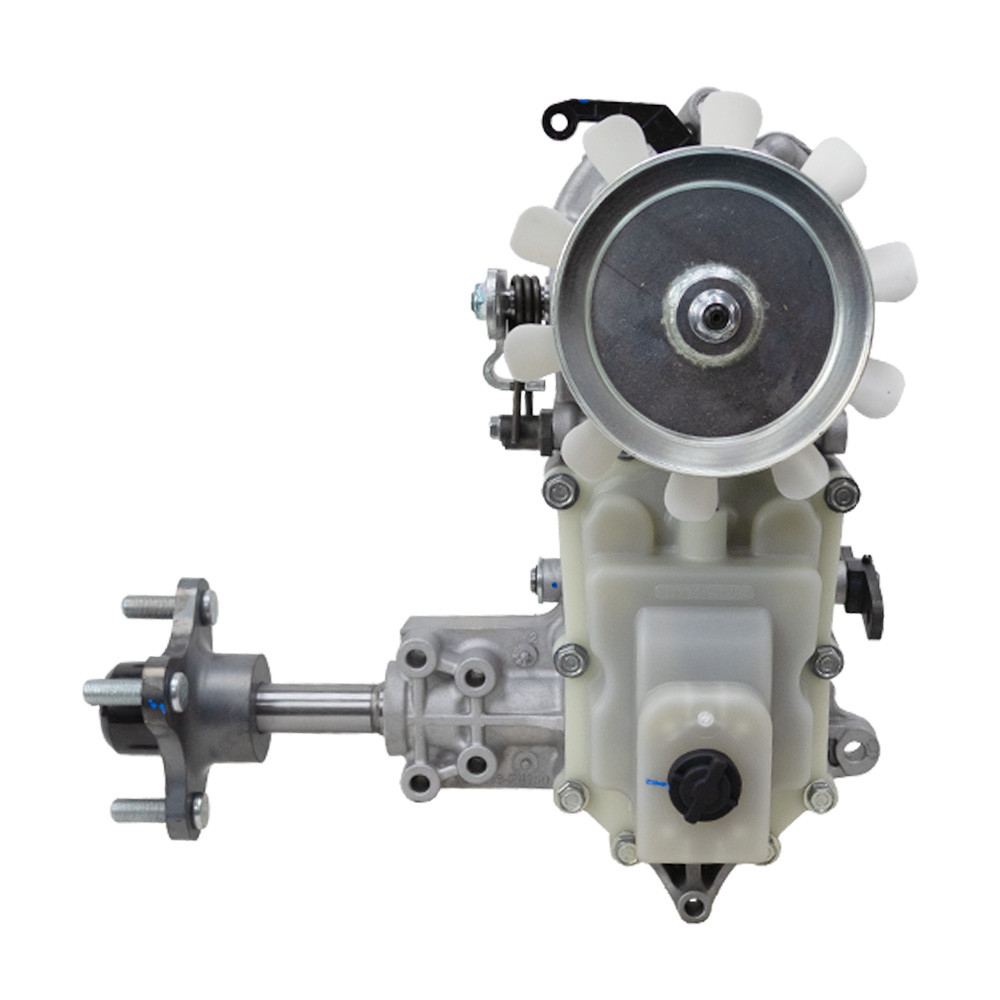

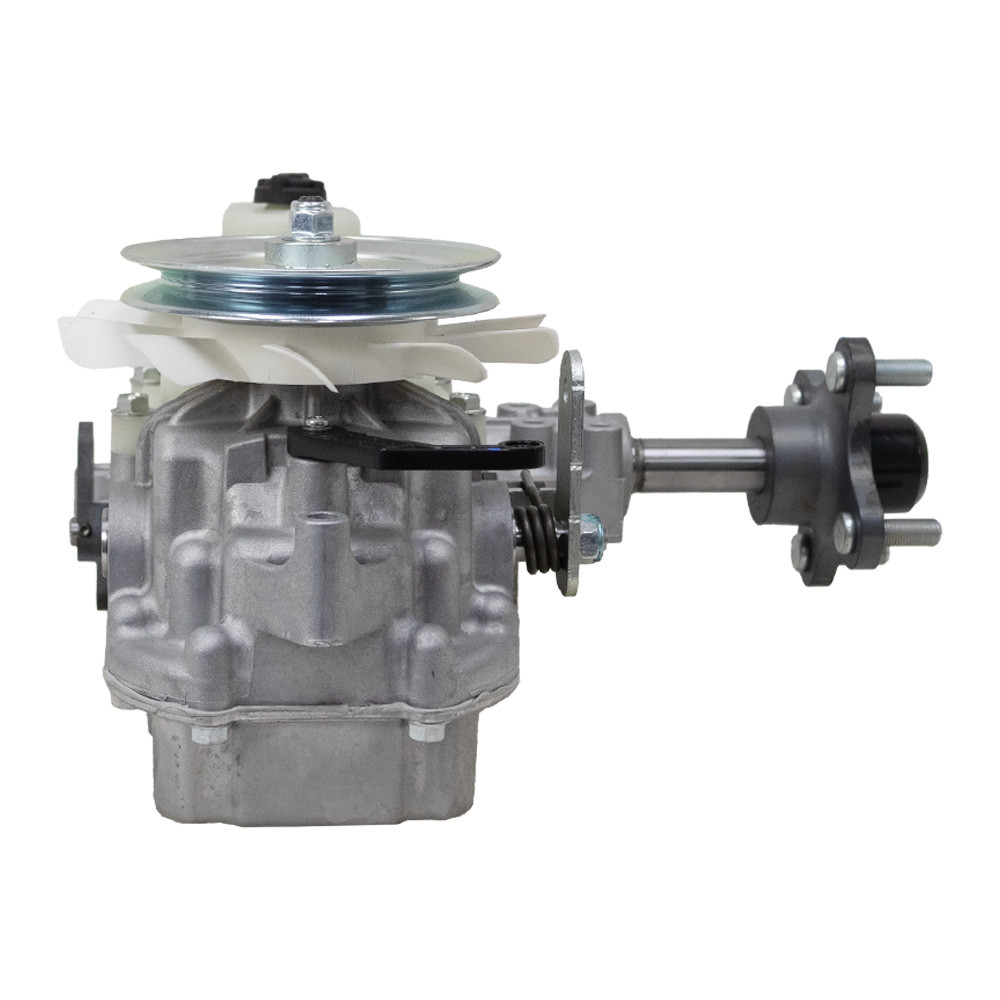

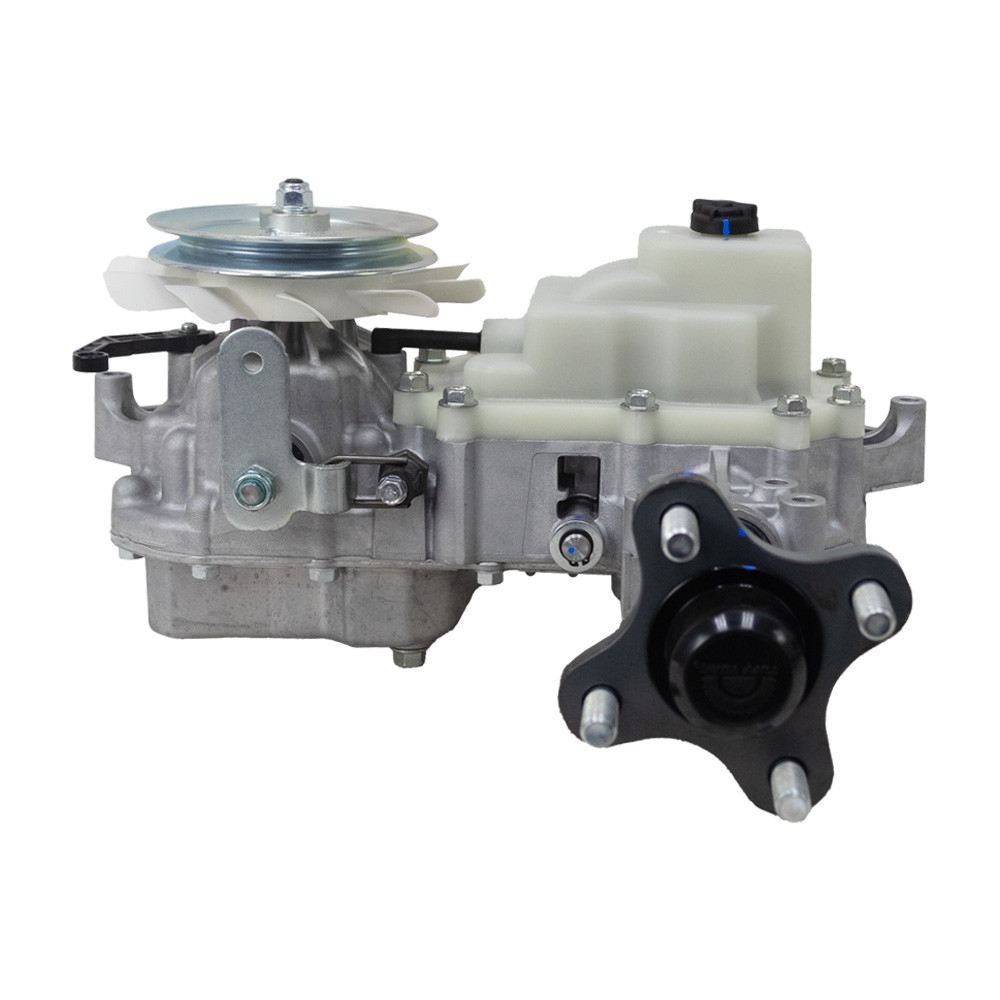

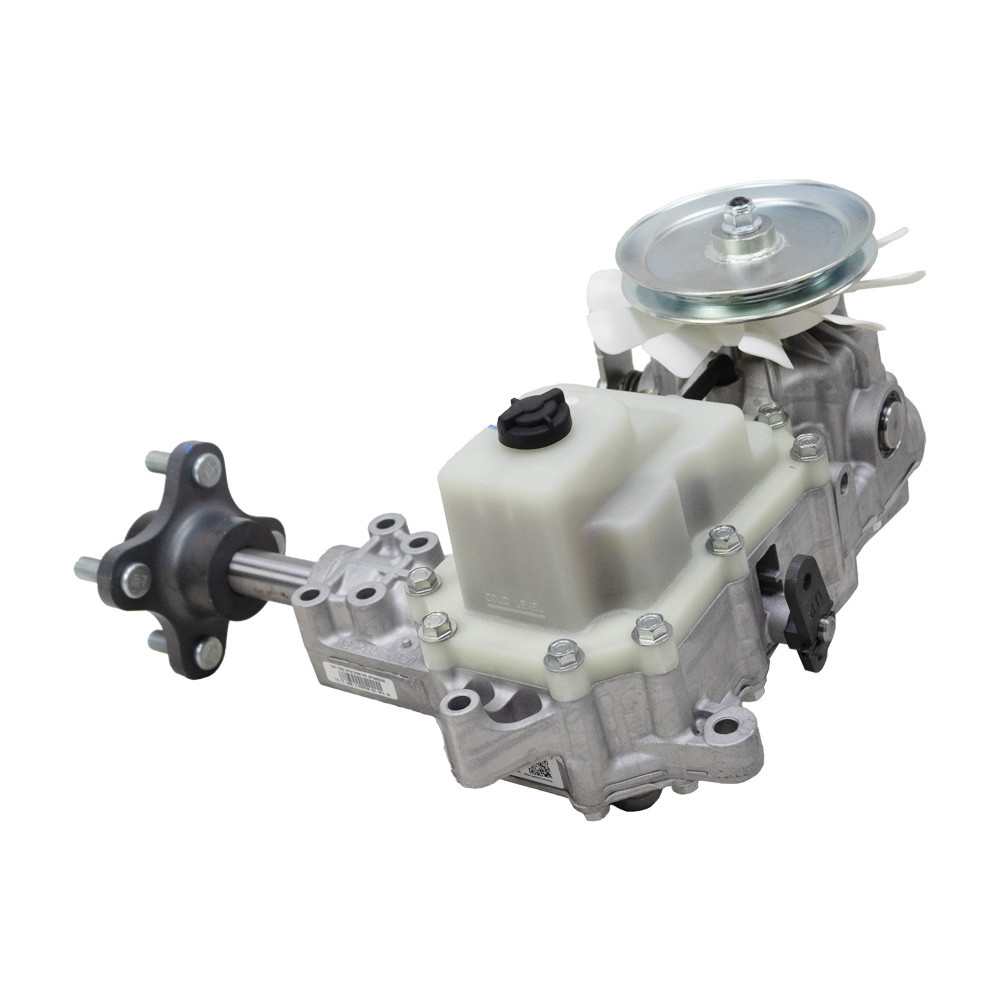

ZTR LEFT HAND TRANSAXLE ASSEMBLY
New, Tuff Torq TZ-400B-X 787Q2124000 left hand hydrostatic transaxle. Features 5" dia. belt-drive input pulley with 7" dia. fan, polymer fluid tank, heavy steel axles for added strength and control, aluminum case for professional-grade durability and dependable performance and an internal braking system. Designed to be used on residential zero-turn mowers. (Right Hand TZ-400 Transaxle not available at Surplus Center)
SPECIFICATIONS
- Brand Tuff Torq
- Part Number 787Q2124000
- Model Number TZ-400B-X
- Input Rotation CW
- Vehicle Speed Max. 10.0 mph
- Tire Size 22" max.
- Vehicle Weight max. w/ Attachments & Operator 1275 lbs. (578 kg)
- Reduction Ratio 18:1
- Pump/Motor Displacement 10/10 cc/rev
- Brake Capacity min. 180 lb-ft (244 Nm)
- Brake Arm Torque 11.7 lb-ft (15.8 Nm)
- Axle Torque 310 lb-ft (420 Nm)
- Fan Size dia. 7" (177.8 mm)
- Pulley Size dia. 5" (127 mm)
- Axel Length 4-1/8" (Housing to Face of Hub)
- Output Four bolt (1/2"-20 TPI) wheel hub on 4" B.C.
- Mount Six 0.37" dia. thru holes
- Size 15.5" x 15.25" x 875"
- Shpg 39 lbs.
