Product Description

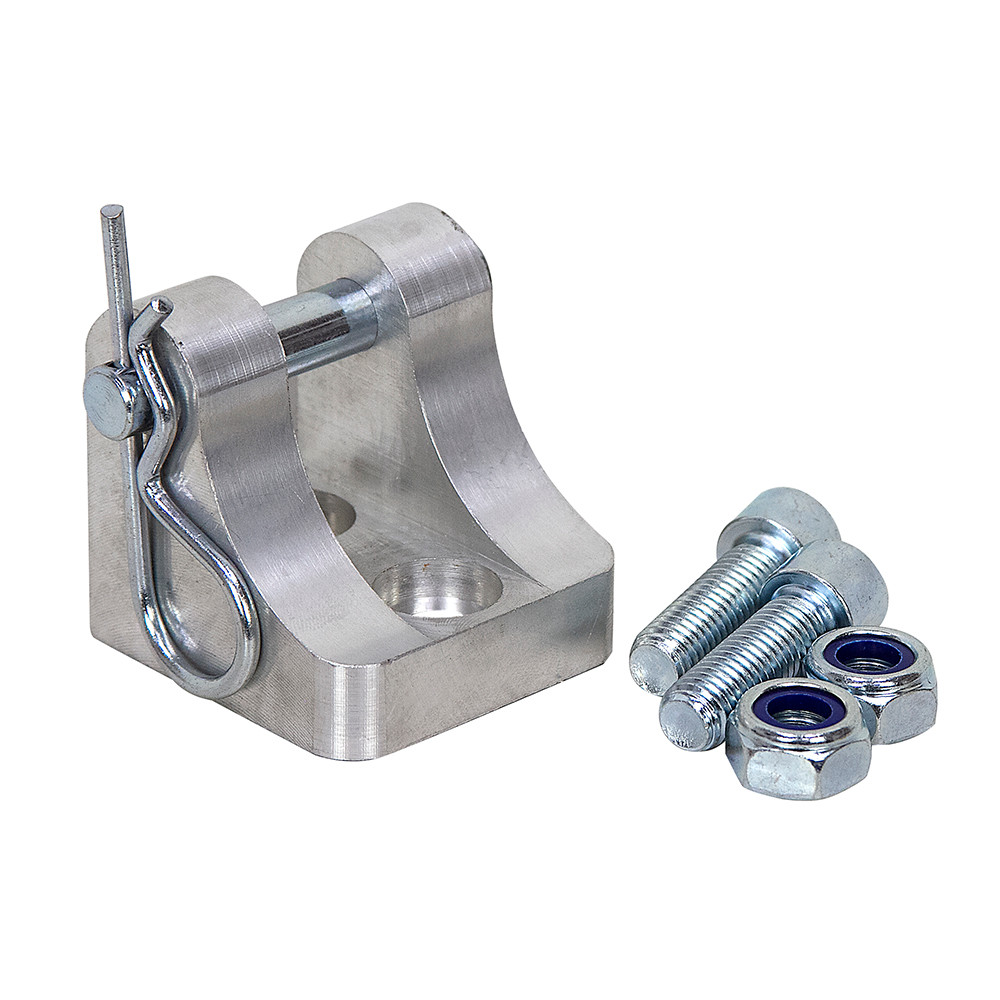

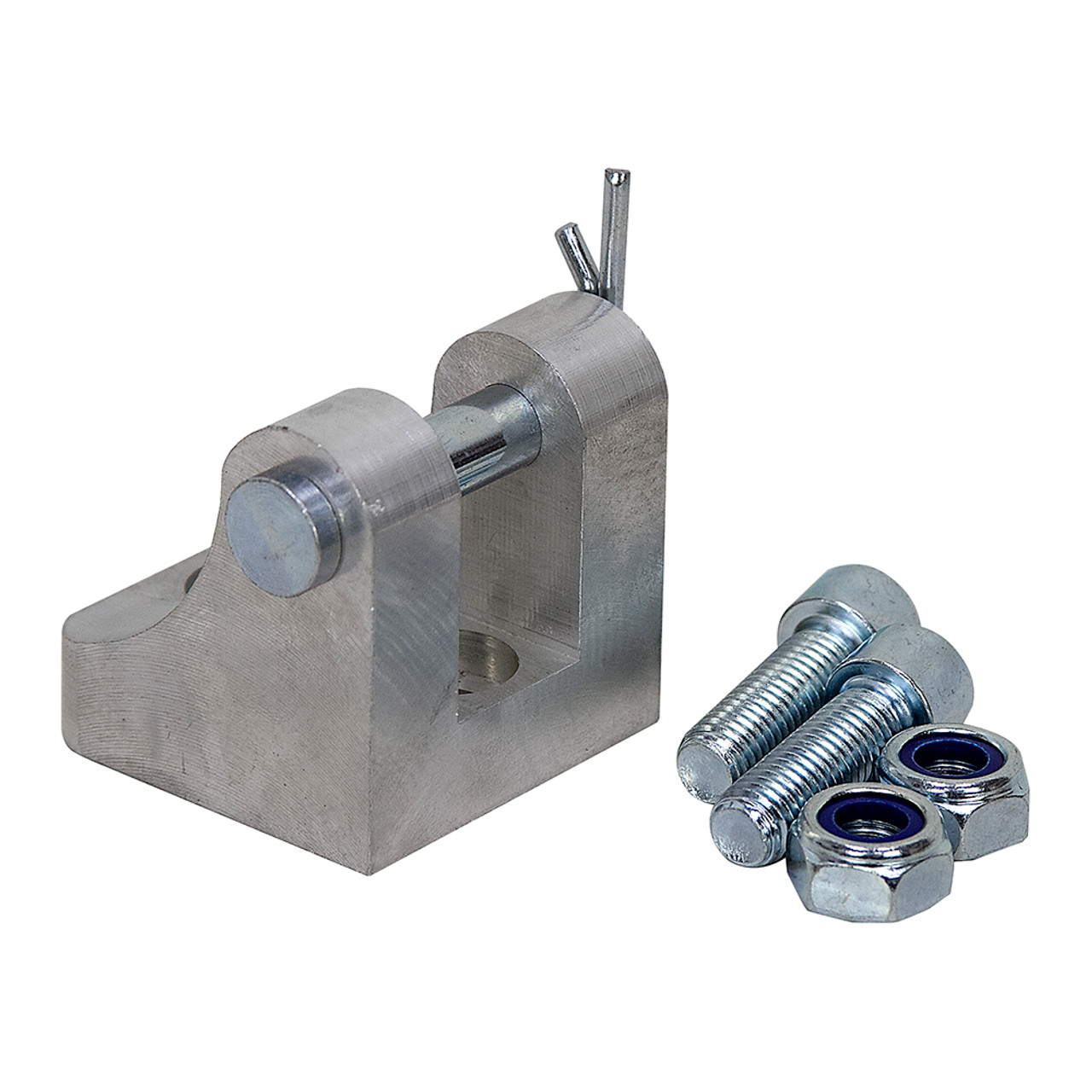

MEDIUM DUTY LINEAR ACTUATOR MOUNTING BRACKET KITBrand new, GLIDEFORCE aluminum mounting bracket kit for use with 5-1896 series linear actuators. Includes mounting hardware. Sold individually, order 2 kits per actuator.
SPECIFICATIONS
- Inside Clevis Width 13/16"
- Outside Clevis Width 2"
- Throat Depth 7/16"
- Actuator Mount Pin Size 10mm (0.394")
- Base Mount Bolt Spacing 1-1/8"
- Size 2" x 2" x 2"
- Shpg. 1/4 lb.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 5-1896-BA
PDF Page Catalog298-145.pdf
Dimensional Diagram dr5-1896-BA.pdf
