Log Splitter Wedge [100229]

Product Description

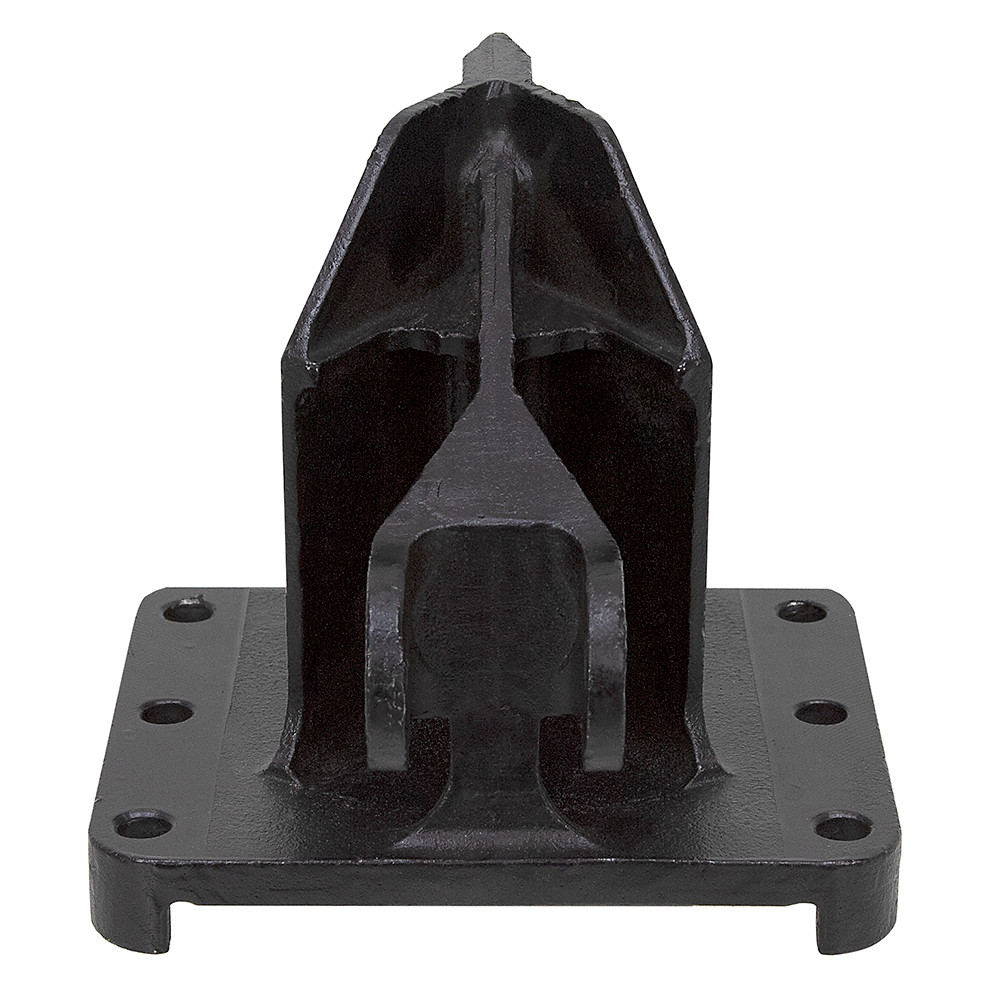

Log Splitter Wedge
New, cast iron log splitter wedge. Designed to slide down splitter beam as cylinder extends. Could also be mounted at end of beam to split wood as it is pushed against it. Clevis end to connect to cylinder rod. Additional hardware and plates needed to clamp around beam when used in traveling wedge mode.

SPECIFICATIONS

• Blade Height 6-5/8"
• Blade Length 5-1/2" long, 4-1/2" wide at back end
• Pin Hole 5/8" dia.
• Clevis 1-3/4" between ears, 2-1/2" outside ears
• Clevis Pin Centerline Height 3-1/16"
• Bolt Holes 9/16" ID x 1-1/16 deep
• Bolt Pattern three hole each side 2-3/4 " on center x  7-1/8" wide
• Beam Opening 6-1/2" wide x 1/2" deep
• Size 7-3/8" x 8-1/4" x 1-1/16"
• Shpg. 22 lbs.
