Product Description

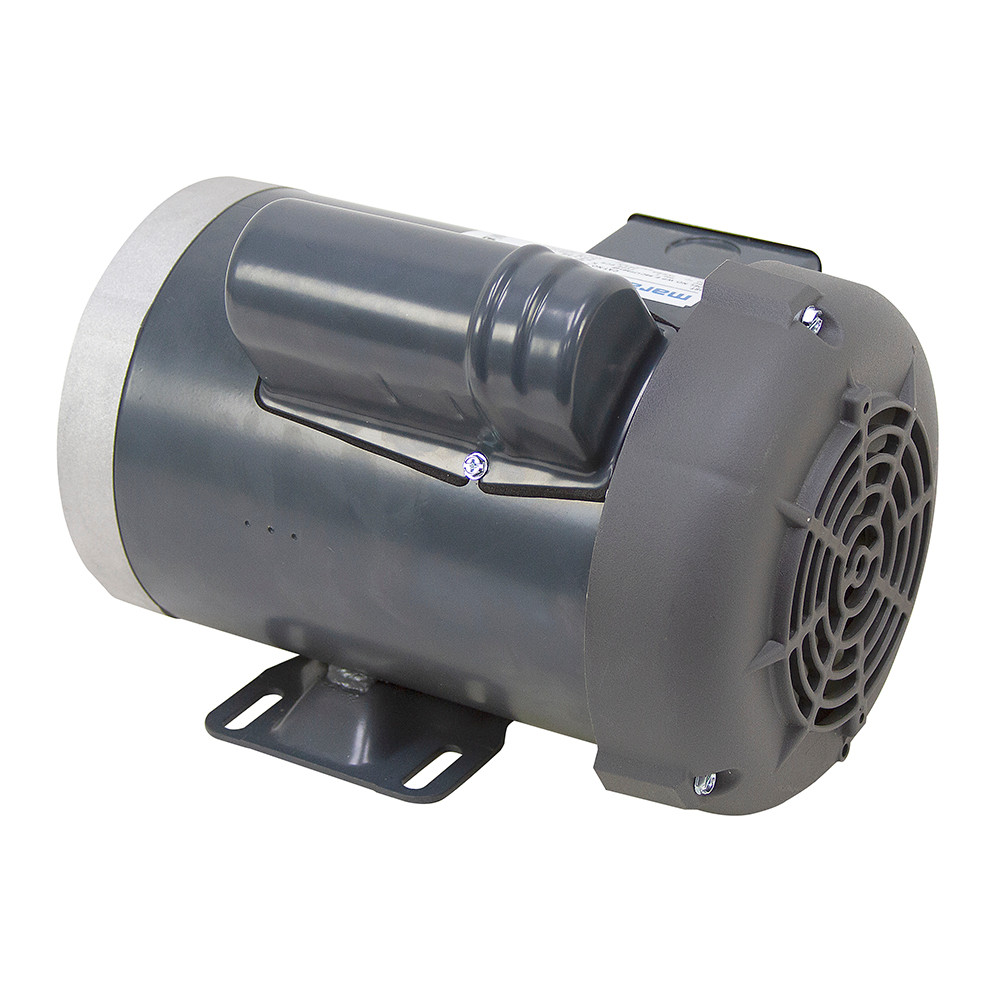

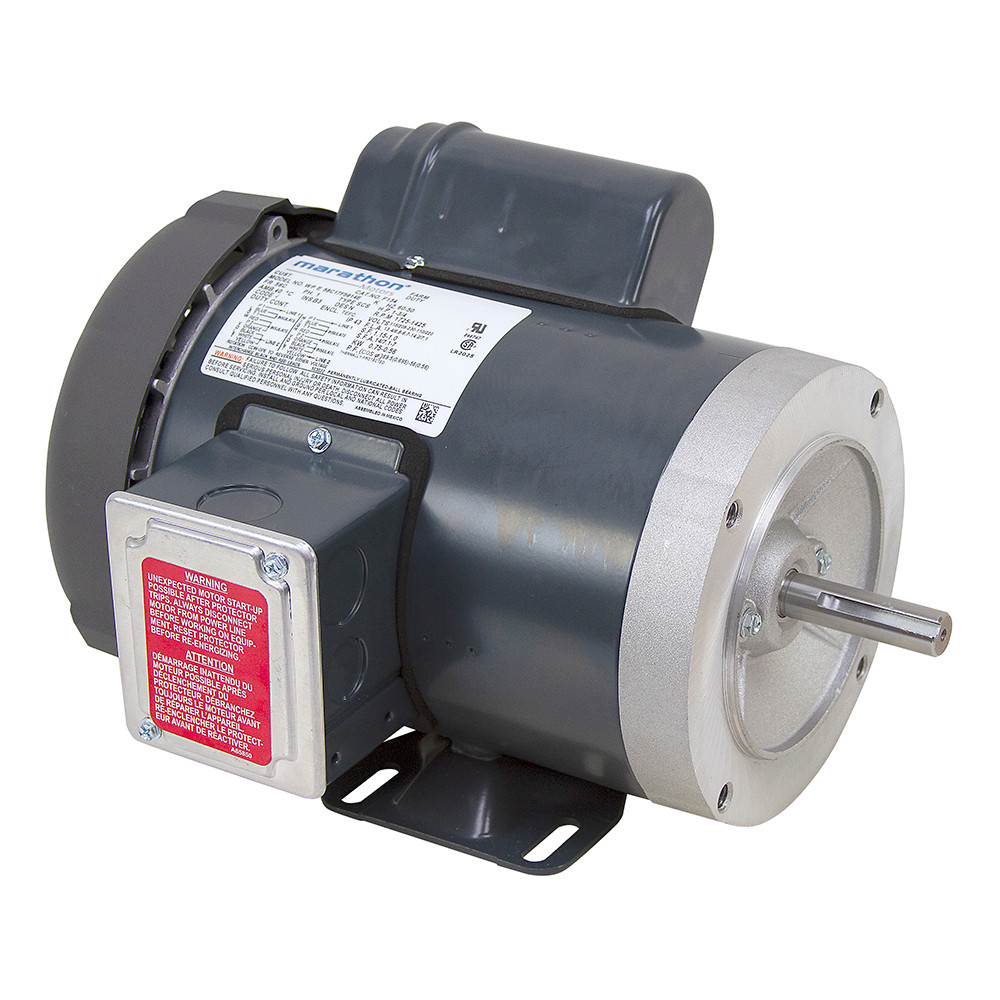

1 HP 1725 RPM MOTORBrand new, Marathon Electric model# 056C17F5914 capacitor-start, farm duty motor. Thermal overload protection with manual reset.
SPECIFICATIONS
- Manufacturer Marathon
- Model # 056C17F5914
- Power 1 HP
- Voltage 115/208-230 AC
- Phase 1
- Frequency 60 Hz
- Amperage 13.4/6.8-6.7 Amps
- Speed 1725
- Rotation Reversible
- Service Factor 1.15
- Bearings Ball
- Thermal Overload Protection Manual
- Enclosure TEFC
- Duty Continuous
- Frame 56C
- Face Mount
Four 3/8"-16 tapped holes on
5-7/8" diameter bolt circle - Rigid Base Mount
Four 0.35" diam. holes on 4.88" x 3" centers - Shaft 5/8" dia. x 1-7/8" overall length w/ 3/16" wide x 1.38" long keyway
- Size 10.75" x 8.96" x 8.23"
- Shpg. 35 lbs.
